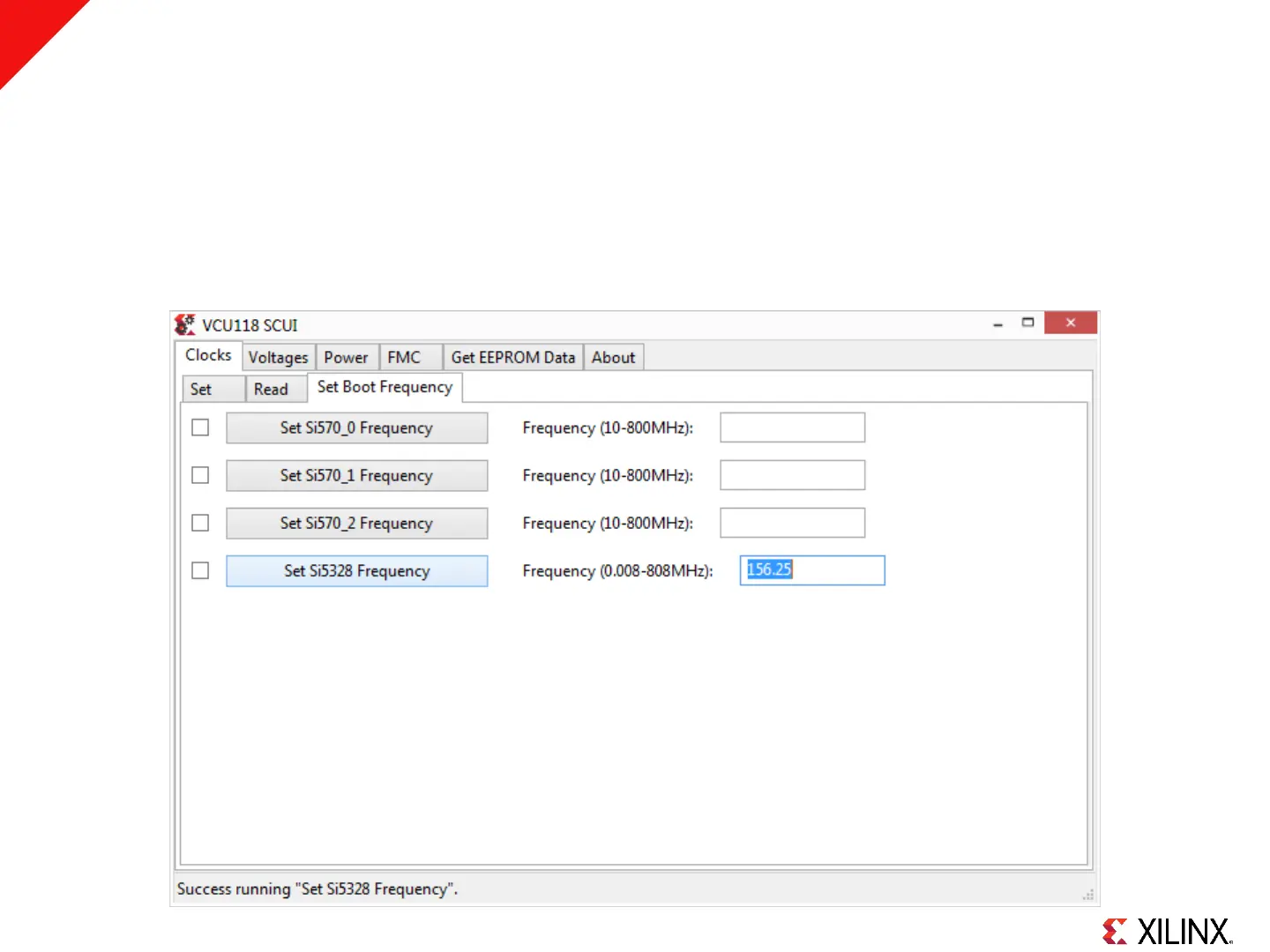

Setting Clock Boot Frequencies

˃ Select the Set Boot Frequency tab

˃ Type in your desired boot-up frequency and click the corresponding Set

button

Note: Presentation applies to the VCU118
