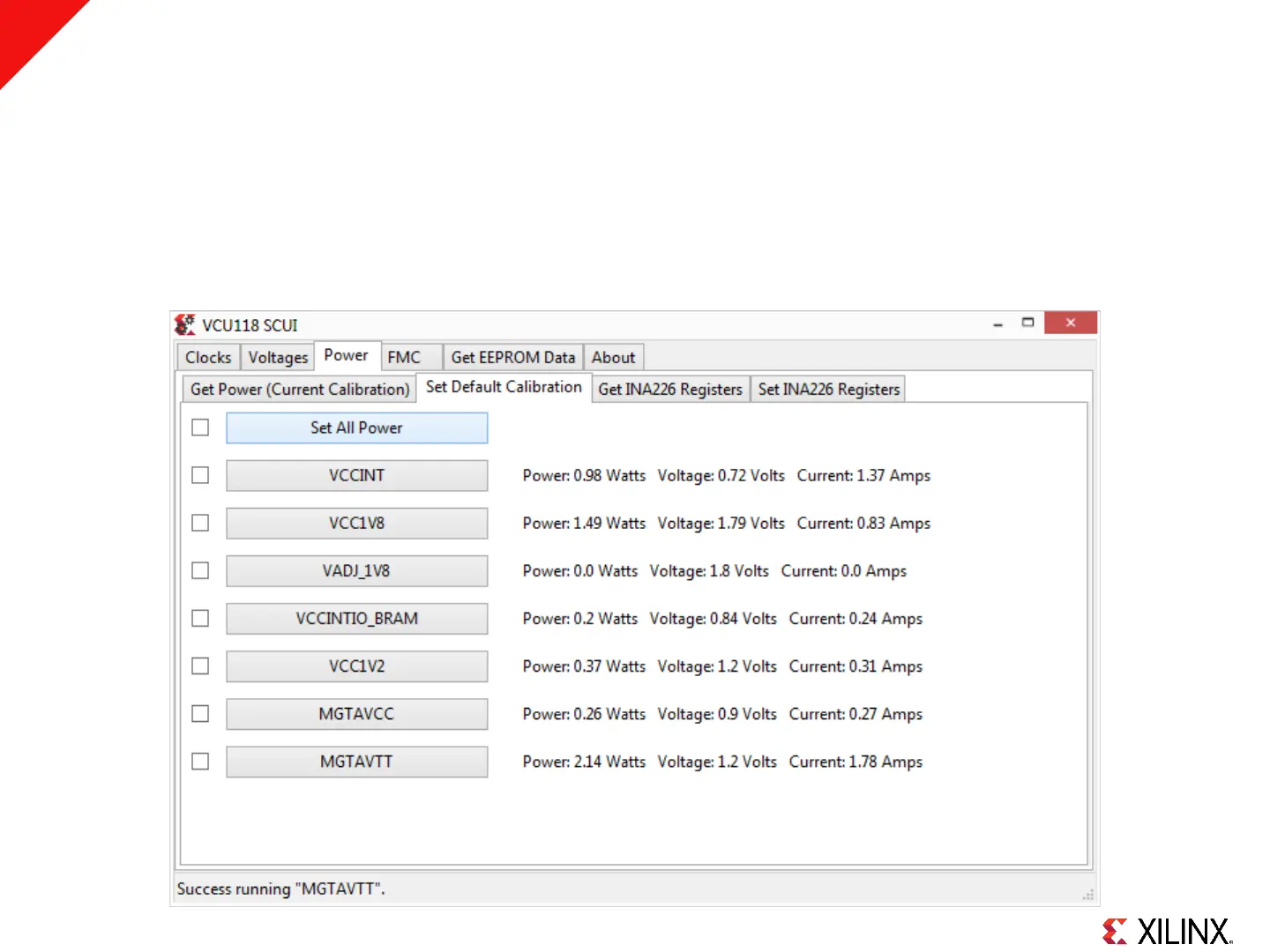

Reading power values using custom calibration

˃ Select the Set Default Calibration tab

˃ Click the Set All Power button (no calibrations were entered in this

example)

Note: Presentation applies to the VCU118
