Setting FMC HPC clocks

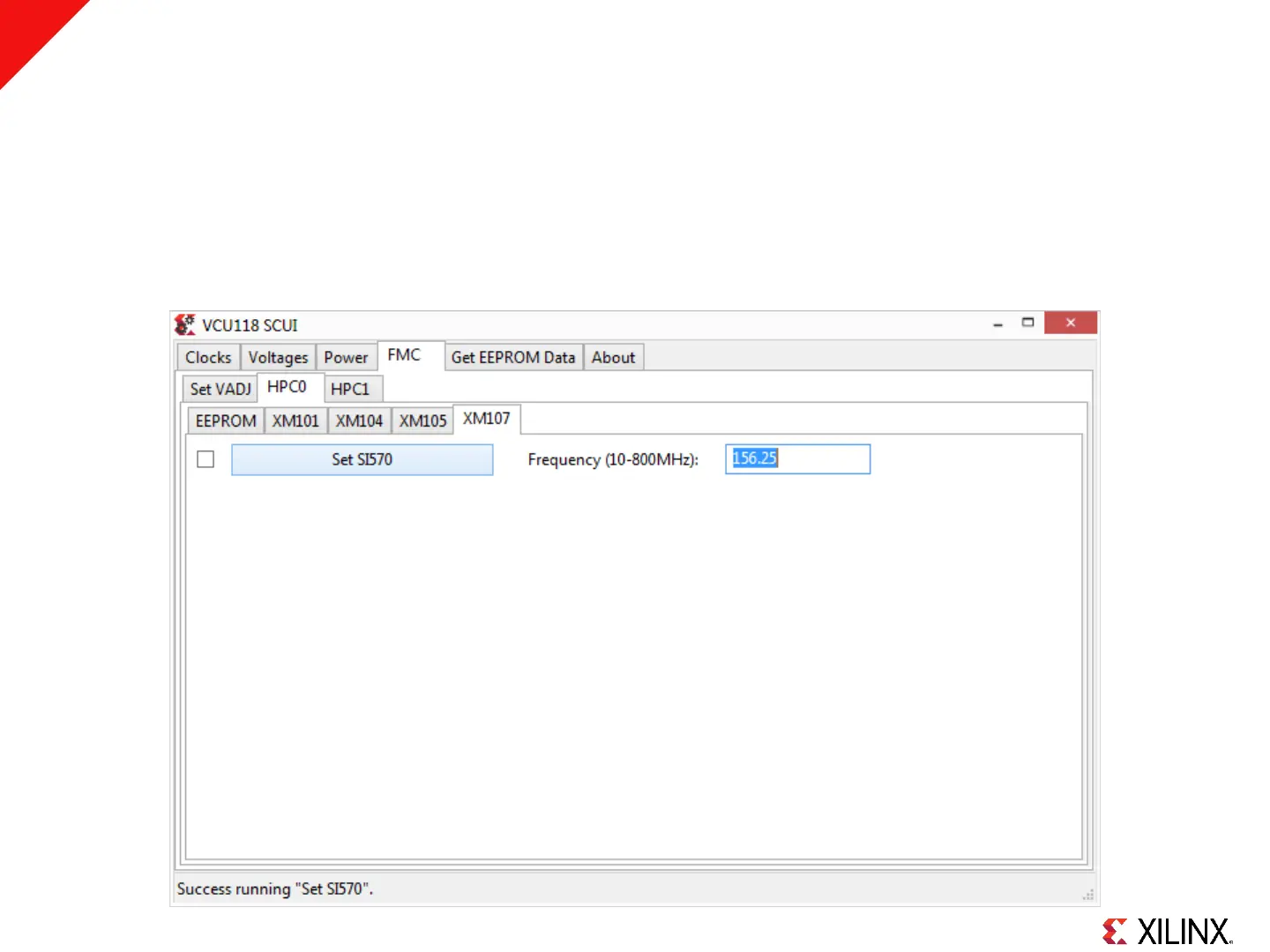

˃ With the XM107 FMC+ card attached, select the XM107 tab

˃ For the IBERT FMC+ testing, set 156.25, and click the Set SI570 button

Note: Presentation applies to the VCU118
