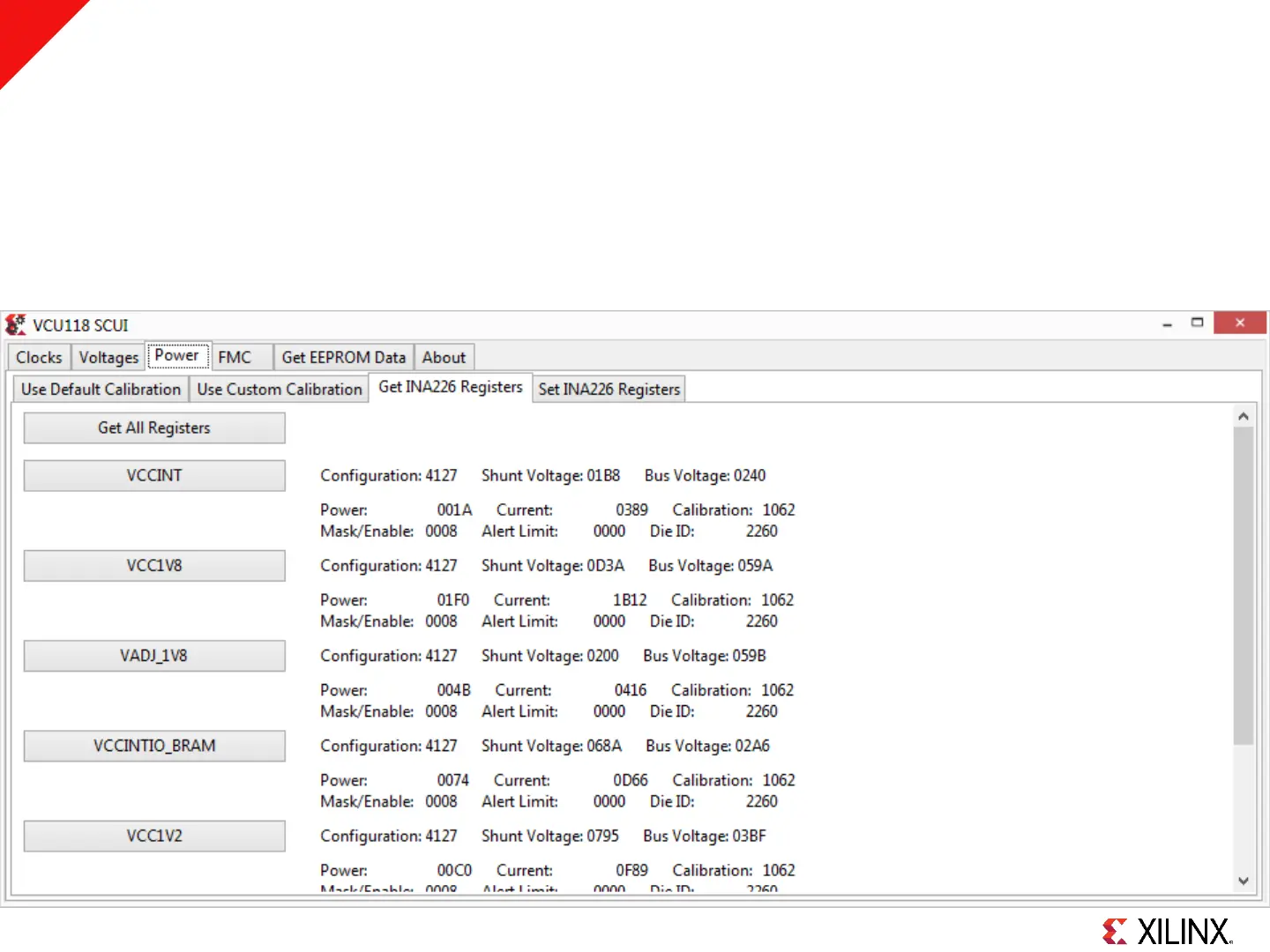

Read INA226 Registers

˃ Select the Get INA226 Registers tab

˃ Click the Get All Registers button and observe the INA226 Registers

settings

Note: Presentation applies to the VCU118
