Getting Started with the Connectivity Targeted Reference Design Demo
- A boot menu or
- The BIOS setup utility
b. If such a prompt is not visible, refer to the manufacturer’s documentation for the
PC system. On many systems, the required key is F12, F2, F1, or Delete.
c. Adjust the boot menu or BIOS boot order settings to make sure that the CD ROM
is the first drive in the boot order.
d. Eject the CD ROM bay and insert Fedora 10 LiveCD.
e. Save changes and exit the boot menu or BIOS setup.
f. The PC system will boot from the CD ROM.
13. Boot Fedora 10 LiveCD and automatically log in:
a. The images in Figure 20 are displayed on power up. Wait for the login screen to be
displayed. This could take two to three minutes or longer depending on system
configuration.
b. Click Login to enter. The desktop should appear in a couple of minutes, depending
on the system configuration.
14. Copy the contents of the USB flash drive:
a. The reference design files are provided on the USB flash drive delivered with the
connectivity kit.
b. Insert the USB flash drive into a USB connector of the PC system.
c. Wait for the Fedora 10 operating system to mount the USB flash. When the flash is
mounted, an icon pops up on the desktop.
d. Double-click the USB flash drive icon and copy the
v6_pcie_10Gdma_ddr3_xaui_axi folder into the liveuser’s home folder
directory.
e. Unmount the USB flash. Right-click on the USB flash drive icon and select
Unmount Volume.
X-Ref Target - Figure 20

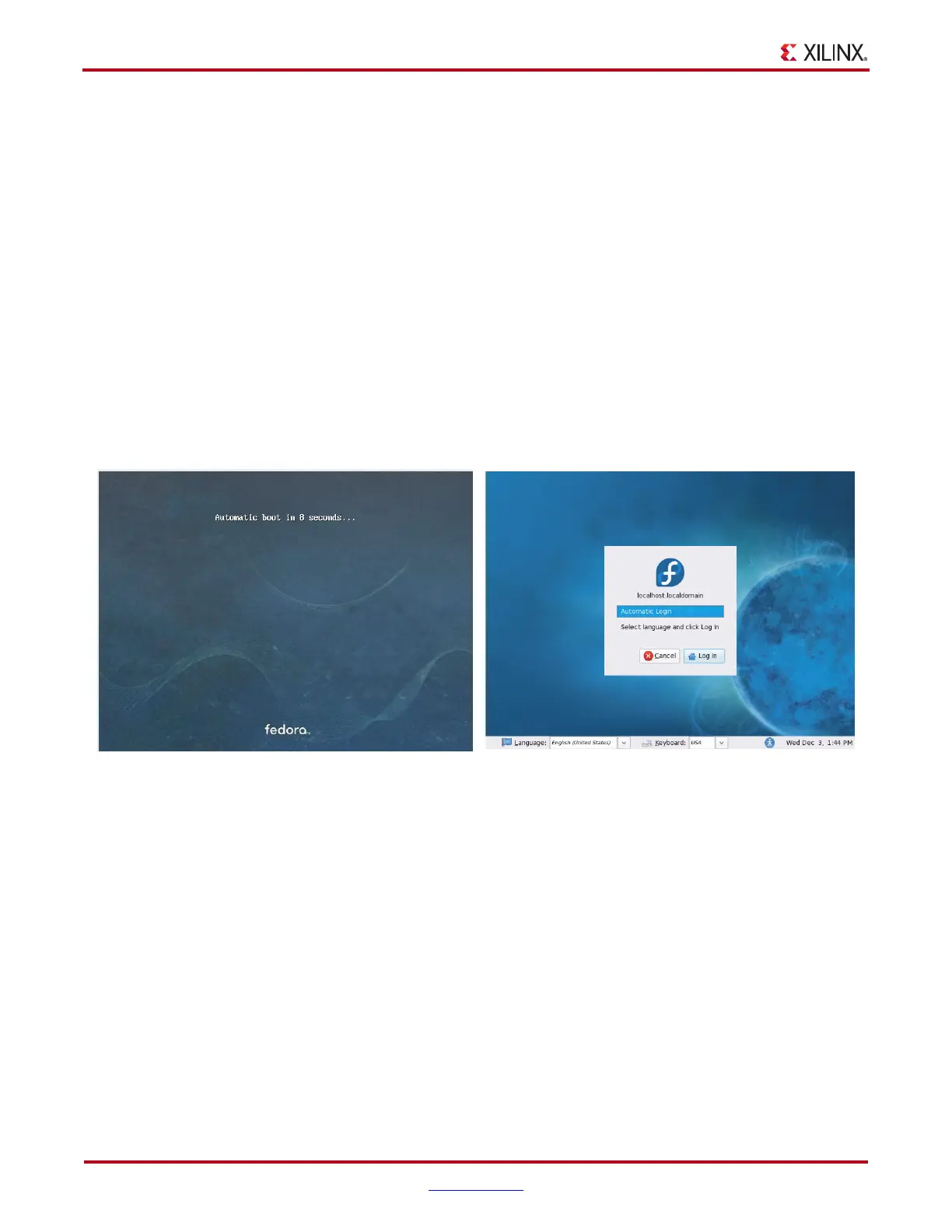

Figure 20: Fedora Screens
UG664_06_010910
