Getting Started with the Connectivity Targeted Reference Design Demo
15. Load the driver and launch the Performance Monitor application:
a. Navigate to the v6_pcie_10Gdma_ddr3_xaui_axi folder.
b. Double-click v6_trd_lin_quickstart to build the kernel objects, load the device
driver, and launch the Performance Monitor application.
c. A window prompt appears as shown in Figure 21. Click Run in Terminal to
proceed.
X-Ref Target - Figure 21

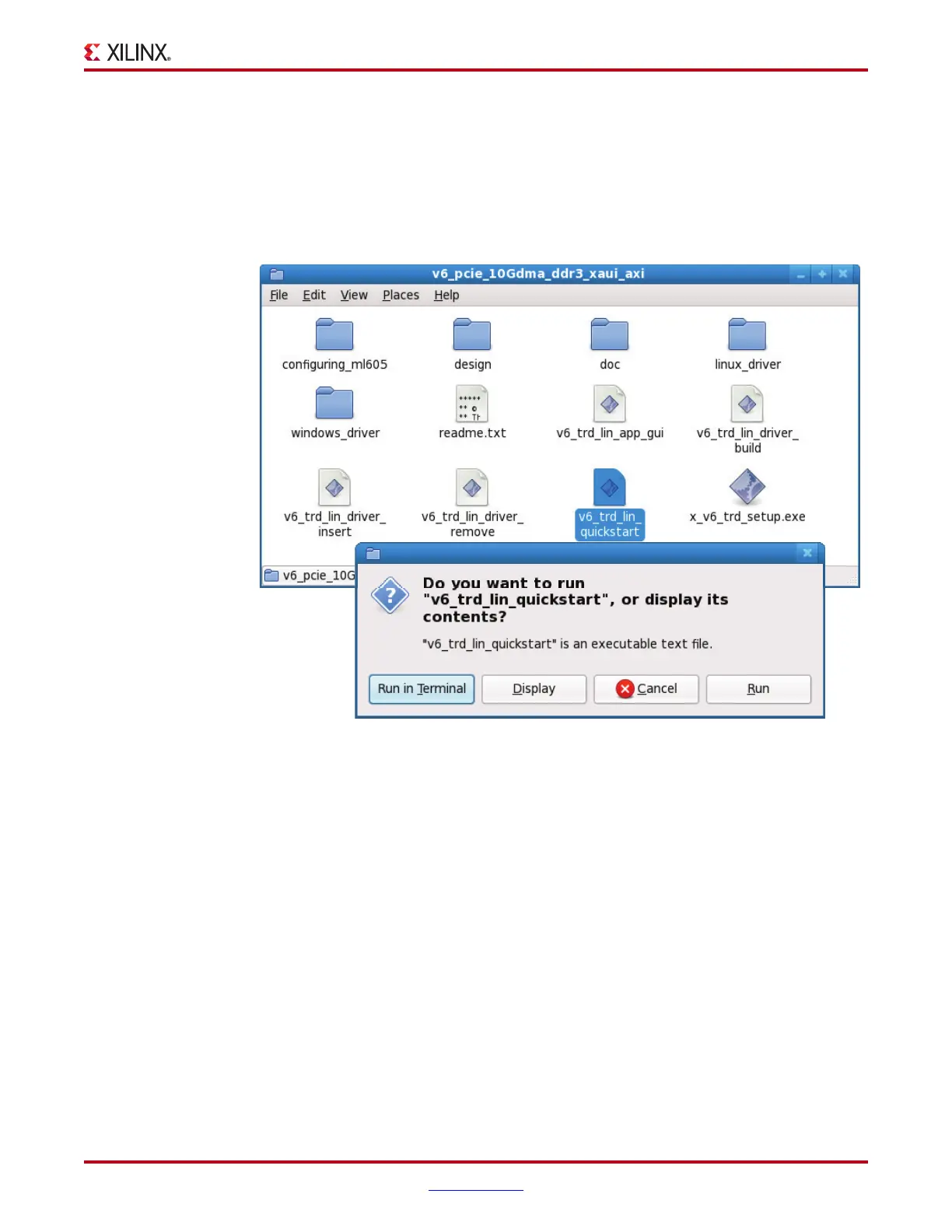

Figure 21: Load Driver and Launch Performance Monitor Application
UG664_07_061711
