Xilinx Virtex-6 FPGA Getting Started Guide

48 www.xilinx.com Virtex-6 FPGA Connectivity Kit Getting Started
UG664 (v1.4) July 6, 2011
Modifying the Virtex-6 FPGA Targeted Reference Design
environment selected. The Setup Information file (xraw.inf) is also available in
the same directory.
Note:
The XAUI and Raw Data drivers are not required to be recompiled because only the
Vendor ID was changed. The step d, page 46 and step e, page 47 are shown if other
software sections need to be modified.
4. Create the recompiled driver package:
After all the drivers are compiled, create a folder called compiled_drivers. In this
folder, do the following:
a. Make a folder called xdma and populate it with xdma.sys (type - System File) and
xdma.inf (type - Setup Information) from the DMA driver compiled area.
b. Make a folder called xaui and populate it with xaui.sys (type - System File) and
xaui.inf (type - Setup Information) from the XAUI driver compiled area.
c. Make a folder called xraw and populate it with xraw.sys (type - System File) and
xraw.inf (type - Setup Information) from the Raw Data driver compiled area.
d. Copy the GUI executable from the v6_pcie_10Gdma_ddr3_xaui_axi/
windows_driver/xpmon folder.
e. Copy WdfCoInstaller01009.dll from the
v6_pcie_10Gdma_ddr3_xaui_axi/windows_driver/utils folder and
place it under the xdma, xaui, and xraw folders.

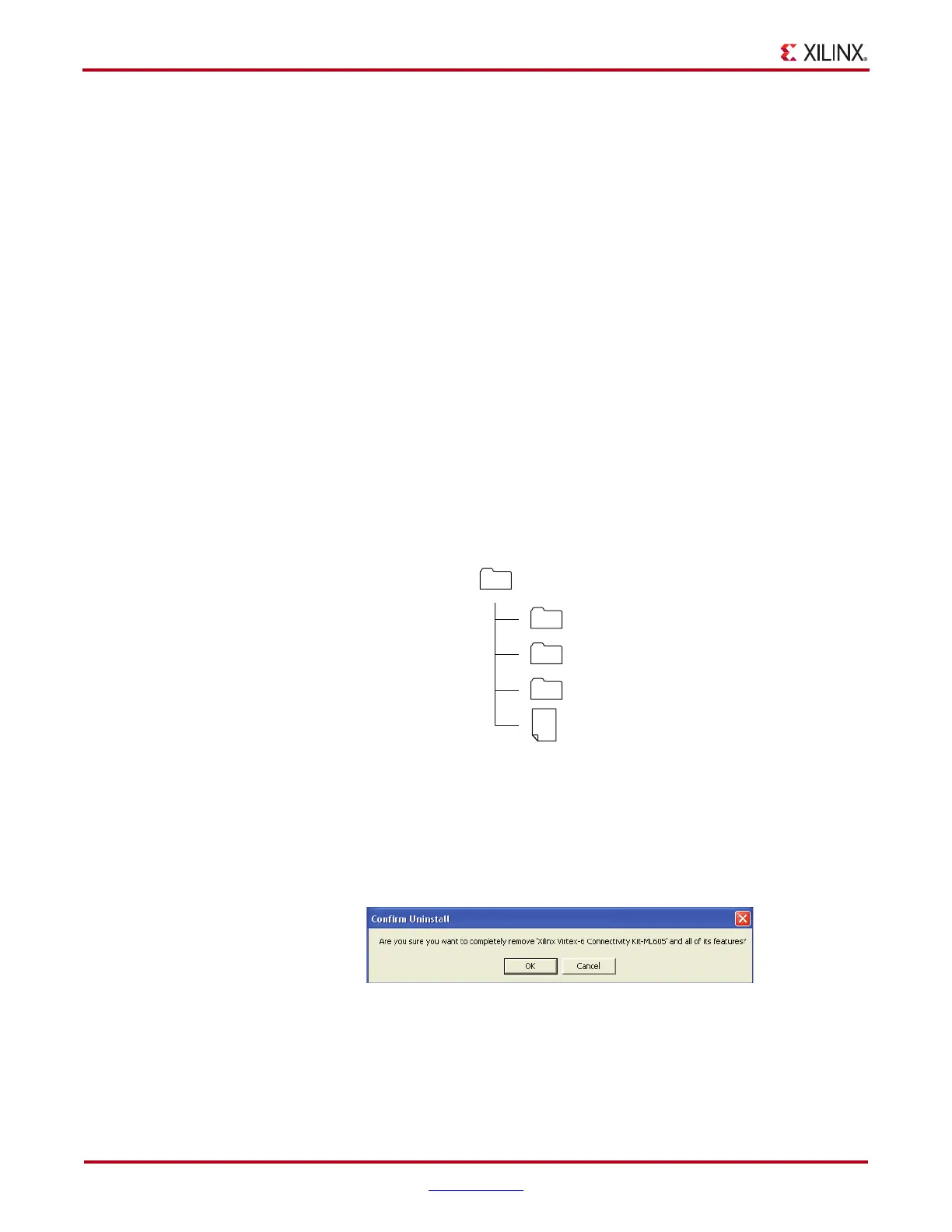

The folder hierarchy appears as shown in Figure 42.
5. Uninstall previous drivers:
If previous drivers are installed in the system, they need to be uninstalled. To uninstall
previous drivers, run x_v6_trd_setup.exe. InstallShield asks for confirmation of
driver install. Click OK (Figure 43).
X-Ref Target - Figure 42
Figure 42: Compiled Driver Directory Organization
X-Ref Target - Figure 43
Figure 43: Confirm Driver Uninstall
compiled_driver
xaui
xdma
xrawdata
xpmon.exe
UG664_25_052011
UG664_73_060911
