Running the GTH IBERT Demonstration
Figure 1-8 shows the VC7222 board with the cable connections required for the Quad 115
GTH IBERT demonstration.
Configuring the FPGA
This section describes how to configure the FPGA using the SD card included with the
board. The FPGA can also be configured through Vivado Design Suite using the .bit files
available on the SD card, or online (as collection
rdf0297-vc7222-ibert-2014-2.zip) at the Virtex-7 FPGA VC7222 Characterization
Kit documentation website.
To configure the FPGA using the SD card:
1. Insert the SD card provided with the VC7222 board into the SD card reader slot located
on the bottom-side (upper-right corner) of the VC7222 board.
2. Plug the 12V output from the power adapter into connector J2 on the VC7222 board.
X-Ref Target - Figure 1-8

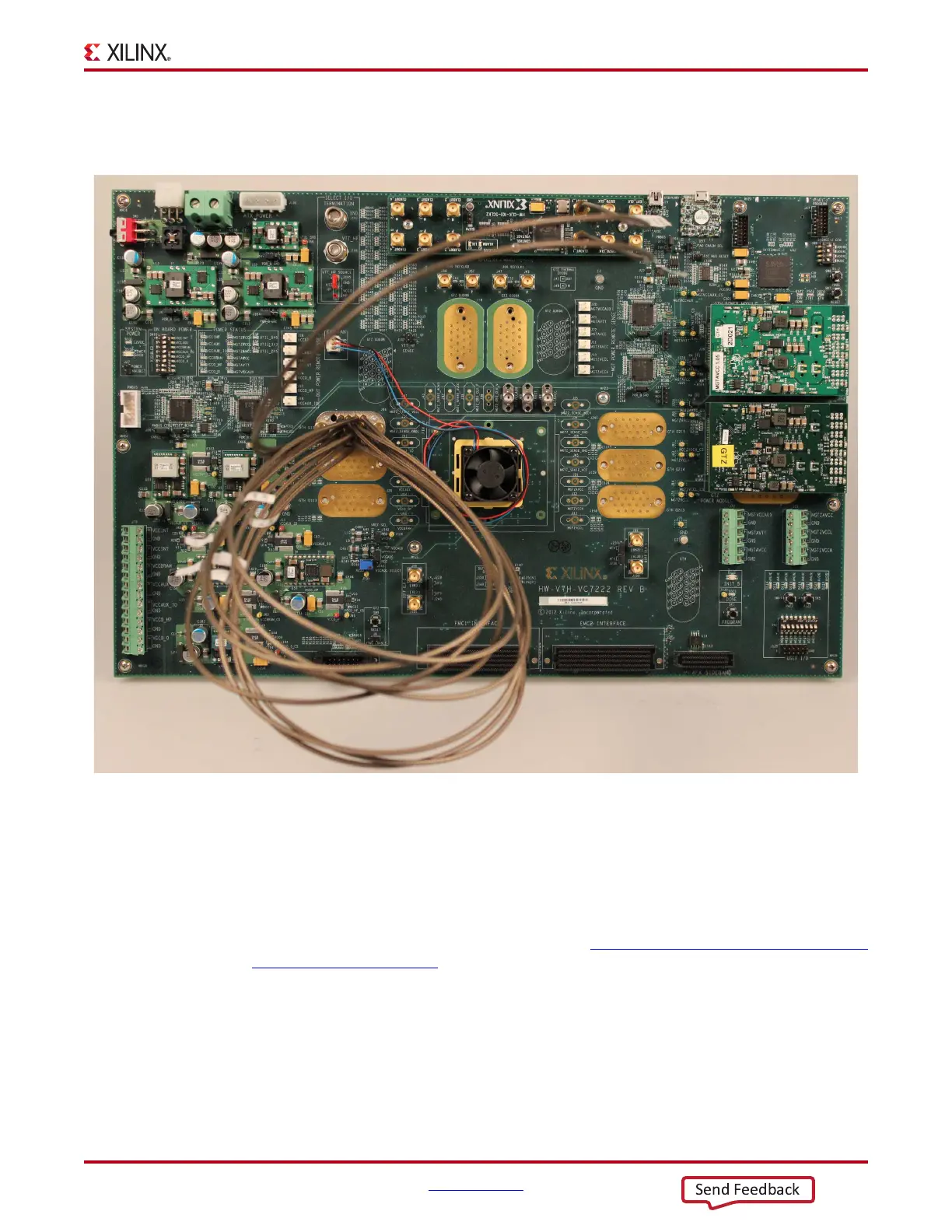

Figure 1-8: Cable Connections for Quad 115 GTH IBERT Demonstration
