Running the GTZ IBERT Demonstration
•TX5_P→ SMA F-F Adapter → RX5_P
•TX5_N→ SMA F-F Adapter → RX5_N
•TX6_P→ SMA F-F Adapter → RX6_P
•TX6_N→ SMA F-F Adapter → RX6_N
•TX7_P→ SMA F-F Adapter → RX7_P
•TX7_N→ SMA F-F Adapter → RX7_N
Note:
To ensure good connectivity, it is recommended that the adapters be secured with a wrench,
however do not over-tighten the SMA connectors.

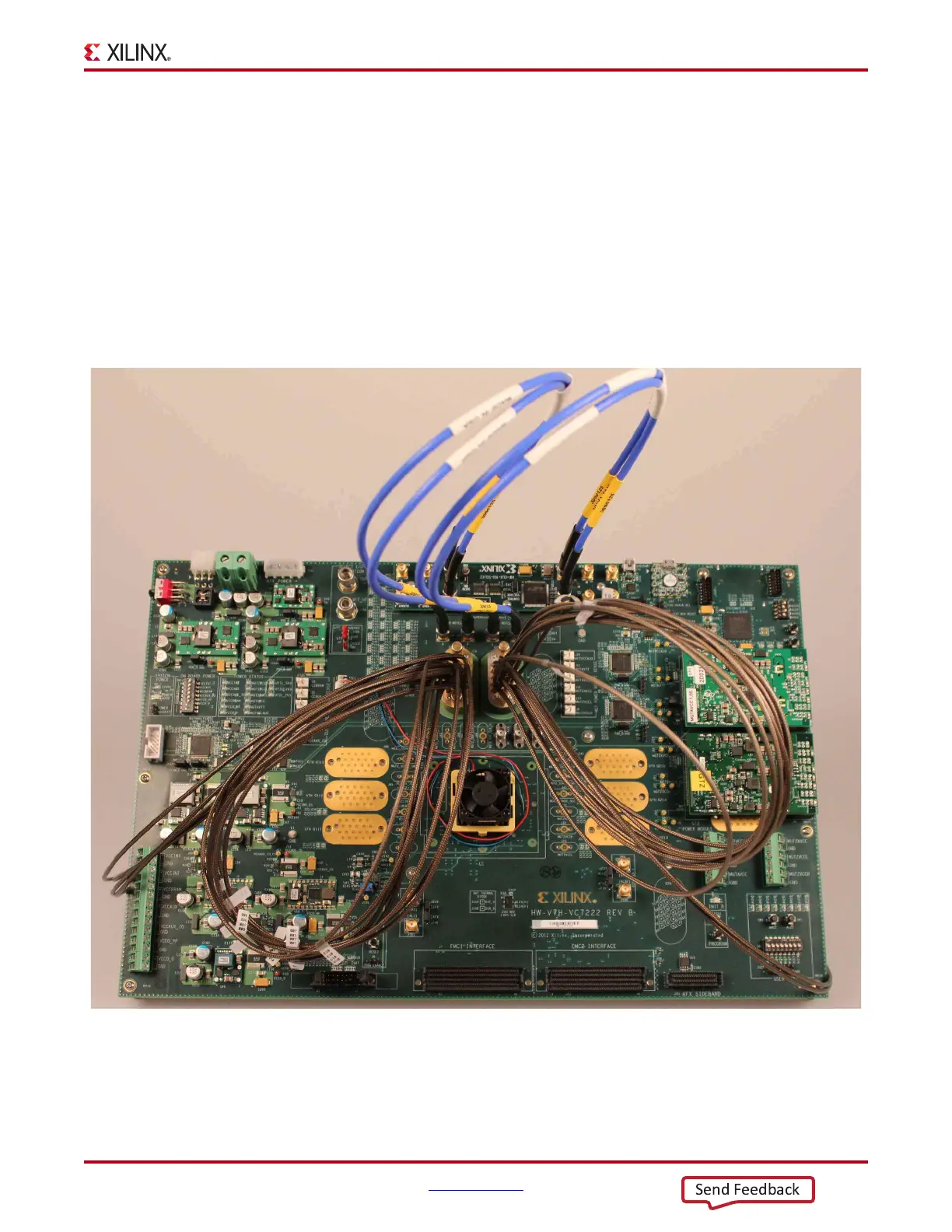

Figure 1-24 shows the VC7222 board with the cable connections required for the GTZ
IBERT demonstration.
X-Ref Target - Figure 1-24
Figure 1-24: Cables Connection For The GTZ IBERT Demonstration
