2 Installations
2-1．Servo motor
MS series servomotors can be installed either horizontally or vertically. The service life of the
servomotor can be shortened or unexpected problems might occur if it is installed incorrectly or in an
inappropriate location. Follow these installation instructions carefully.

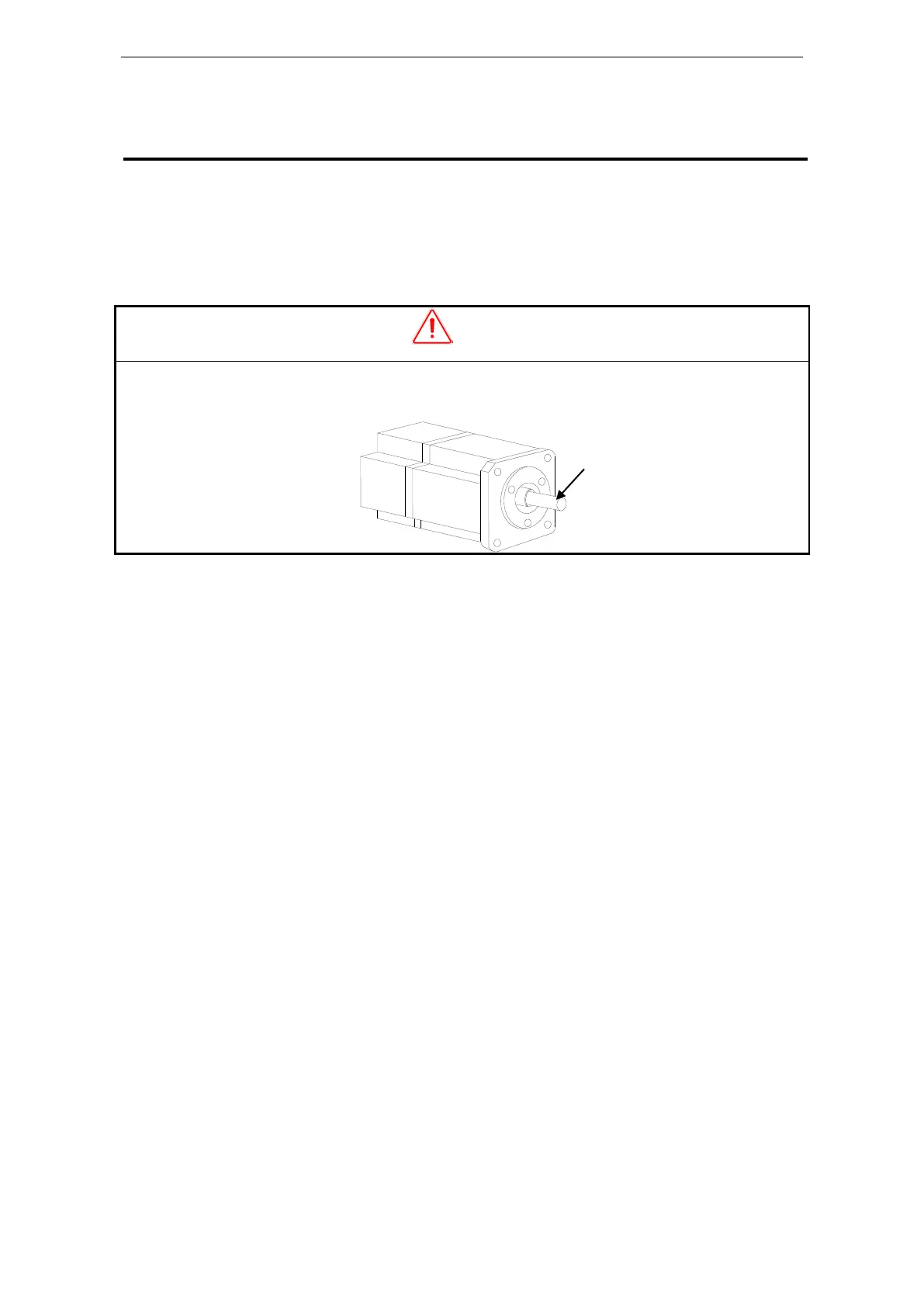

1． The end of the motor shaft is coated with antirust. Before installing, carefully remove all of the
paint using a cloth moistened with paint thinner.
2． Avoid getting thinner on other parts of the servomotor.
2-1-1．Storage Temperature
Store the servomotor within -20~+60 ℃ as long as it is stored with the power cable disconnected.
2-1-2．Installation Site
MS series servomotors are designed for indoor use. Install the servomotor in environments that satisfy
the following conditions.
Free of corrosive or explosive gases.
Well-ventilated and free of dust and moisture.
Ambient temperature of 0° to 50°C.
Relative humidity (r.h.) of 20 to 90% with no condensation.
Accessible for inspection and cleaning.
2-1-3．Concentricity
Please use coupling when connecting to machine; keep the shaft center of servo motor and machine at
the same line. It should be accord to the following diagram when installing the servo motor.
