Xinje DS3E Series User Manual

77
5-4-9. Filter
P1-22
Speed command filter mode
Default
setting
Range
Suitable
mode
Meaning
Change
Effective
0
0, 1
3, 4, 7
Filter certain frequency
command pulse
Any
At once
P1-22 setting
Contents
0
First order low pass filter
1
Smoothing filter
Filter time setting:
5-4-10. Speed reach signal (/V-RDY)
Output speed reach signal V-RDY when the motor speed is equal to reach speed.
P5-51
Name
Default
setting
Meaning
Suitable mode
Modify
Effective
/V-RDY
n.0000
Speed reaching signal
3, 4, 7
Any
At once
Range: 0000-0013, distribute to the output terminal via P5-29. When P5-29=0002, it means output
from SO2 terminal.
the output terminal only can have one function at the same time. Please refer to chapter 5-12-3.
P1-23
Speed command filter time
Unit
Default
setting
Range
Suitable
mode
Change
Effective
0.1ms
0
0~65535
3, 4, 7
Any
At once
P5-05
Reach detection speed
Unit
Default
setting
Range
Suitable mode
Change
Effective
rpm
1000
0~10000
3, 4, 7
Servo
OFF
At once
If the motor speed absolute value is larger than P5-05, output the signal /V-RDY.

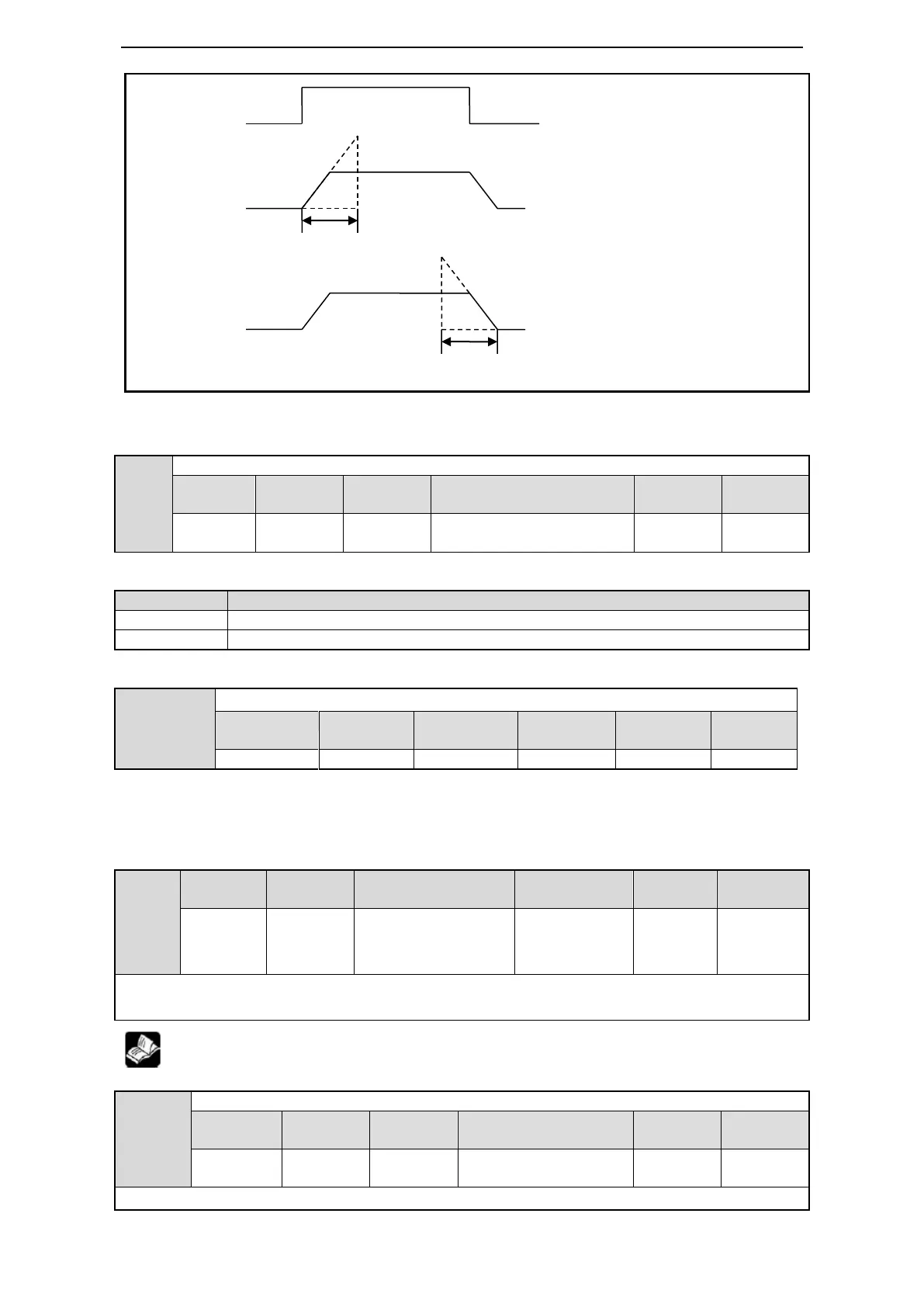

P3-10: set the time
P3-09: set the time
Speed command
Internal speed
command
Soft start
Rated speed
Rated speed
