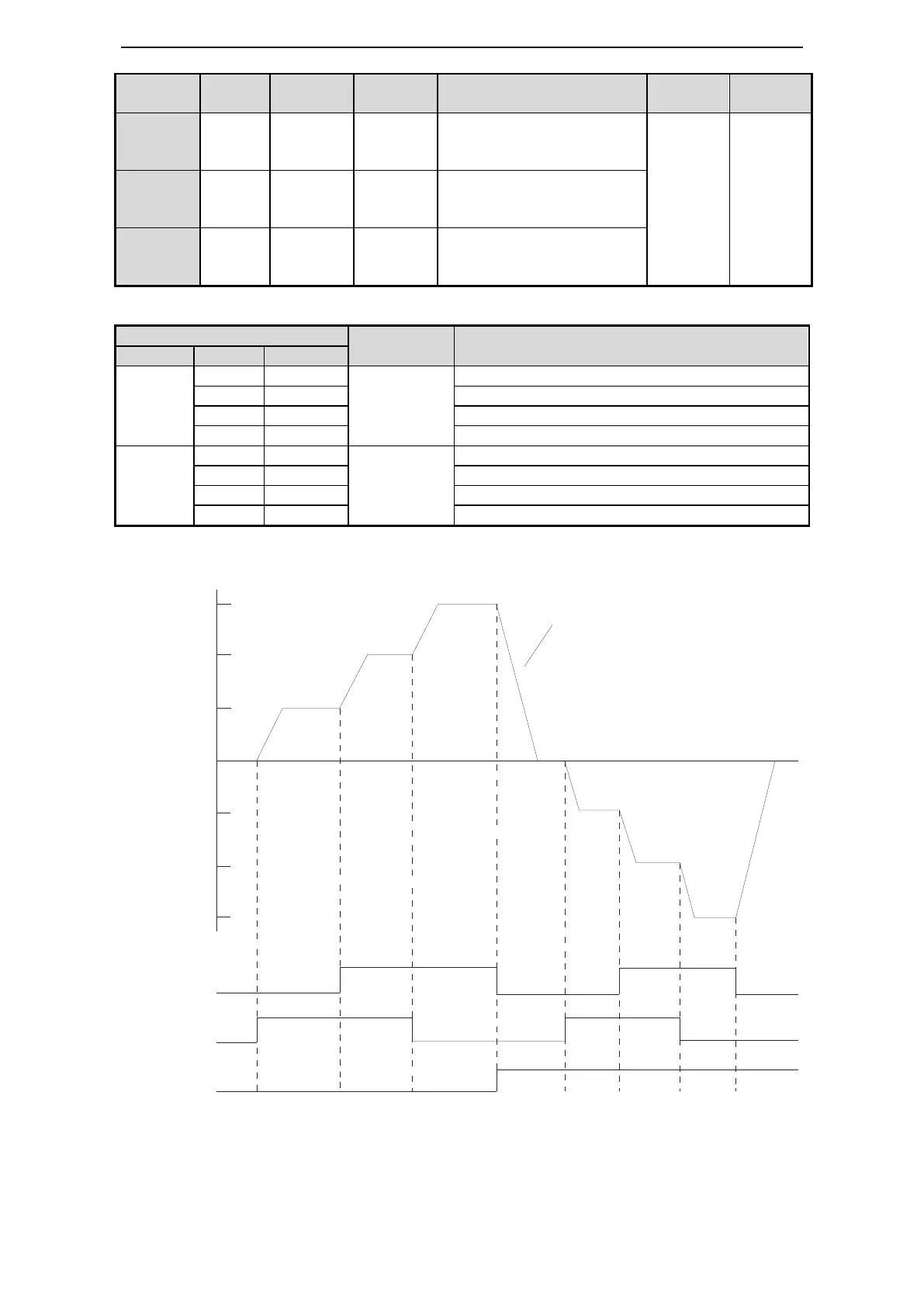

Xinje DS3E Series User Manual

80
(1) Function realization
(2) Running example
Parameter
Signal
Default
Suitable
mode
Modify
Modify
Effective
P5-27
/SPD-D
n.0000
1, 2, 3, 4
Range: 0000-0015.
Distribute to input terminal
through P5-27.
Any
At once
P5-28
/SPD-A
n.0000
3, 6
Range: 0000-0015.
Distribute to input terminal
through P5-28.
P5-29
/SPD-B
n.0000
3, 6
Range: 0000-0015.
Distribute to input terminal
through P5-29.
Input signal
Direction
Running speed
/SPD-D
SPD-A
SPD-B
0
0
0
Forward
Internal speed is zero
0
1
P3-05: SPEED1
1
1
P3-06: SPEED2
1
0
P3-07: SPEED3
1
0
0
Reverse
Internal speed is zero
0
1
P3-05: SPEED1
1
1
P3-06: SPEED2
1
0
P3-07: SPEED3
0
+SPEED1
Stop
+SPEED2
+SPEED3
-SPEED1
-SPEED2
-SPEED3
Speed 1
Speed 2
Speed 3
stop
Speed 1
Speed 2
Speed 3
Stop
Speed up down is decided by
P3-09, P3-10
SPD-A
SPD-B
SPD-D
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
