HOOD CONNECTION

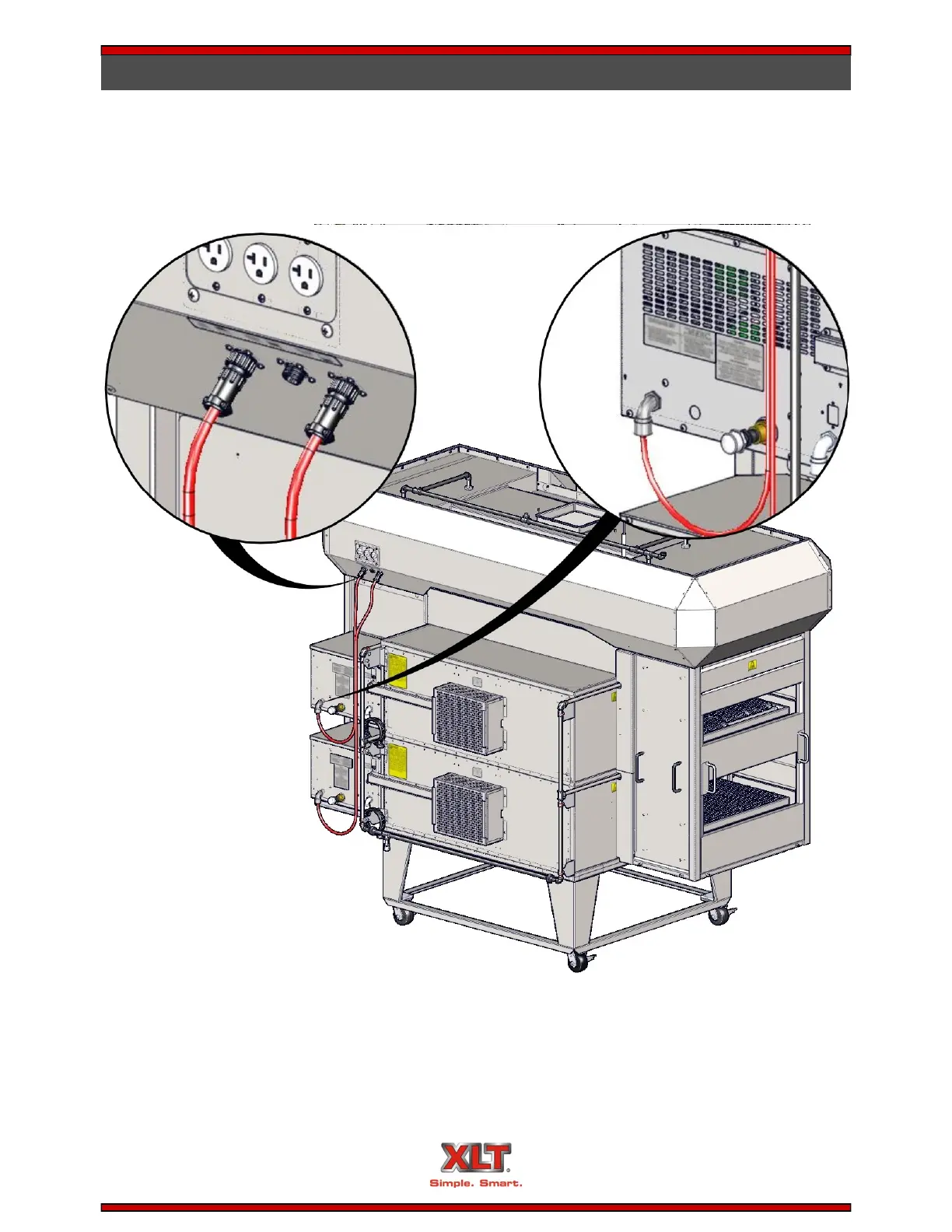

Install Hood Relocation Cord Assembly
All hoods are outfitted with three (3) switch relocation receptacles, regardless of how many
XLT Ovens are installed. For a single oven use “Top” location. For a double stack use “Top” lo-
cation for upper oven and “Bottom” location for lower oven, leaving “Middle” location open.
Insert and lock each oven control cord into the designated location on the bottom of the
hood control box.
