Changing Network Output Source cntd…
Amp Matrix
Source : audio is sourced just after the auxiliary output’s routing matrix (so will
share the same audio feeds) but before all output processing.
Aux Matrix
Source : audio is sourced just after the amplifier output’s routing matrix (so will
share the same audio feeds) but before all output processing.
Amp Outputs+M
Source : audio is sourced just after all amplifier output’s processing
post-mute so
the network copies will be affected by local (or remote) mutes.
Aux Outputs+M
Source : audio is sourced just after all auxiliary output’s processing
post-mute so
the network copies will be affected by local (or remote) mutes.
Press ENTER to confirm the changes and exit to the home screens.

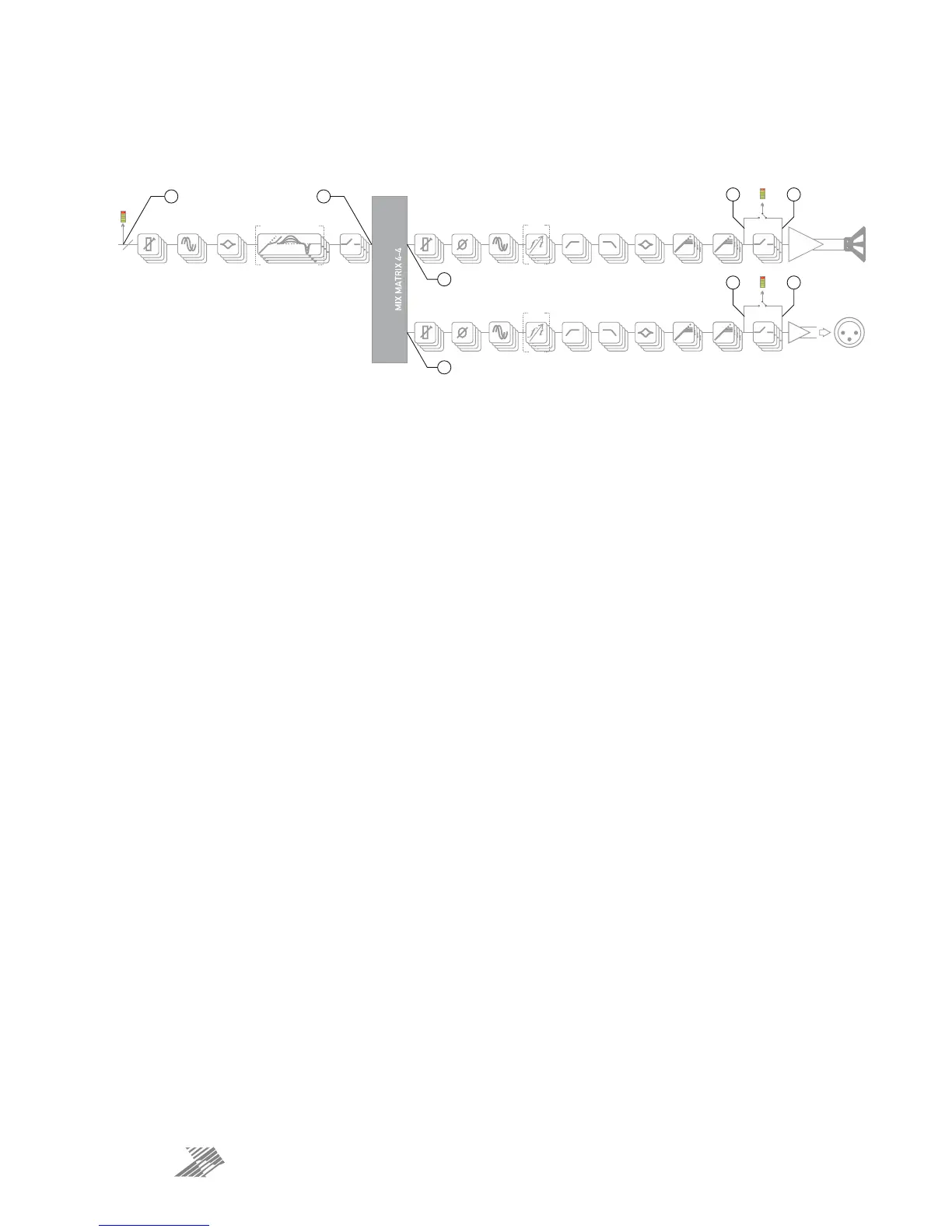

PROG. - LIMITERS - PEAK MUTEPEQ x 8DELA Y DYNAM I C EQ x 3GAIN
