1. Xylem brand logo
2. Pump size (i.e. 150-355 or 6X8X13.5)
3. NSF-61 or NSF-372 (if applicable)
4. Total head (i.e. 36m or 118ft)
5. Manufacturing location (i.e. Morton Grove)
6. Pump rotation (clockwise or counterclockwise)
7. Required motor power (i.e. 45kW or 60HP)
8. Impeller diameter (i.e. 355mm or 14")
9. Serial number
10.Blank space for customer information
11.Nameplate part number
12.Assembled in USA
13.Manufacturing month and year (i.e. 2019)
14.Operating speed (i.e. 1470RPM or 1780RPM)
15.Max working pressure (i.e. 16bar / 230PSI)
16.Flow (i.e. 365 m
3
/H or 1600GPM)
17.Pump series (e-XC)

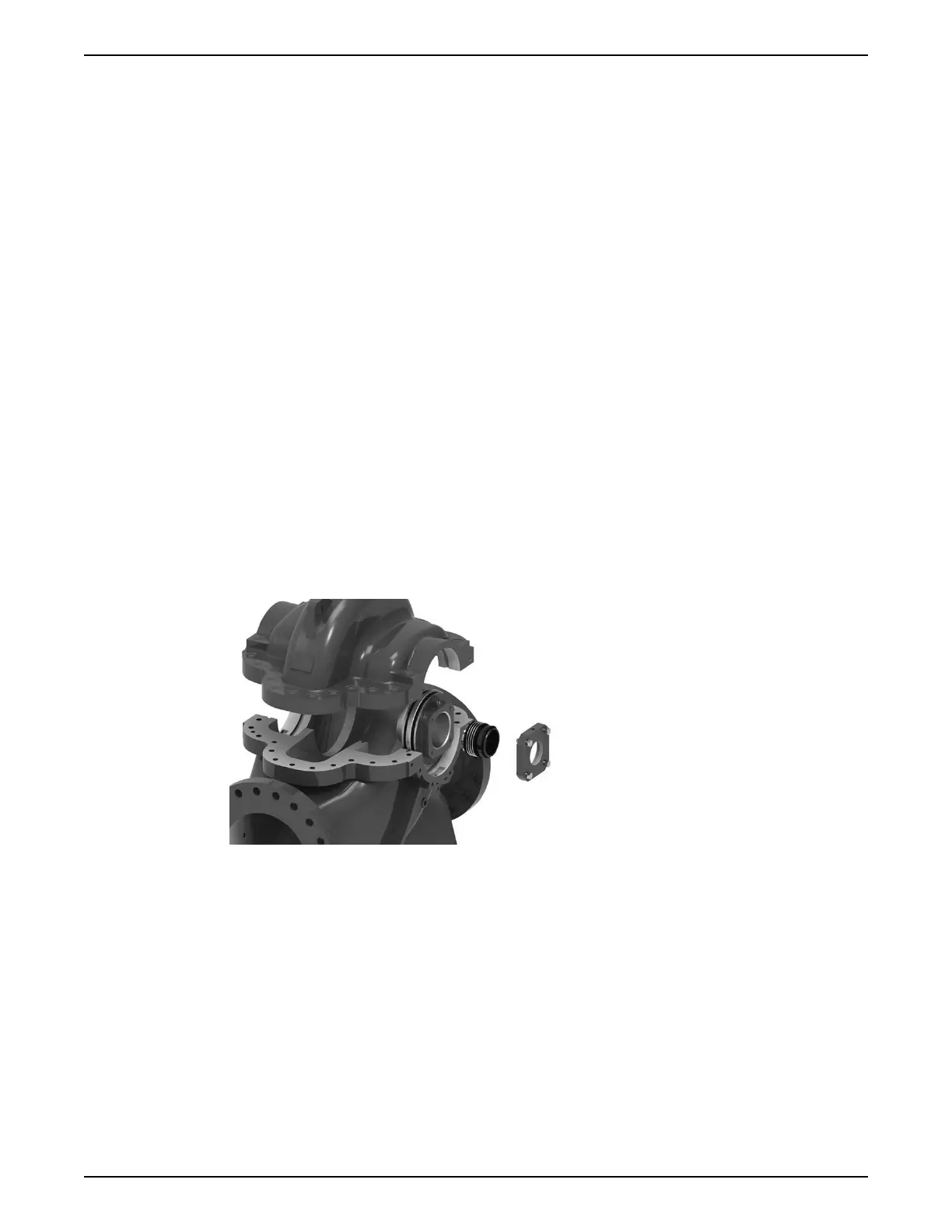

3.4 Casing and volute information
3.4.1 Pump casing variants
Drop-in Stuffing Box Design (Drop-in Seal Chamber)
The drop-in stuffing box design utilizes a removable stuffing box. Seal gland, cartridge
seals, and packing glands are affixed to the stuffing box in this design variant. Flush lines
connect to seal gland or stuffing box ports for all sealing configurations.
Integrated Stuffing Box Design (Integrated Seal Chamber)
The integrated stuffing box design omits the need for a separate stuffing box. Instead, the
upper and lower casing halves form a seal chamber when the pump is assembled. Seal
gland, cartridge seals, and packing glands are fastened directly to the pump casing. Flush
lines connect to seal gland ports for mechanical and cartridge seal configurations. Flush
lines connect to ports located on top of the upper casing for the packing seal
configuration.
3 Product Description
12 e-XC INSTRUCTION MANUAL
