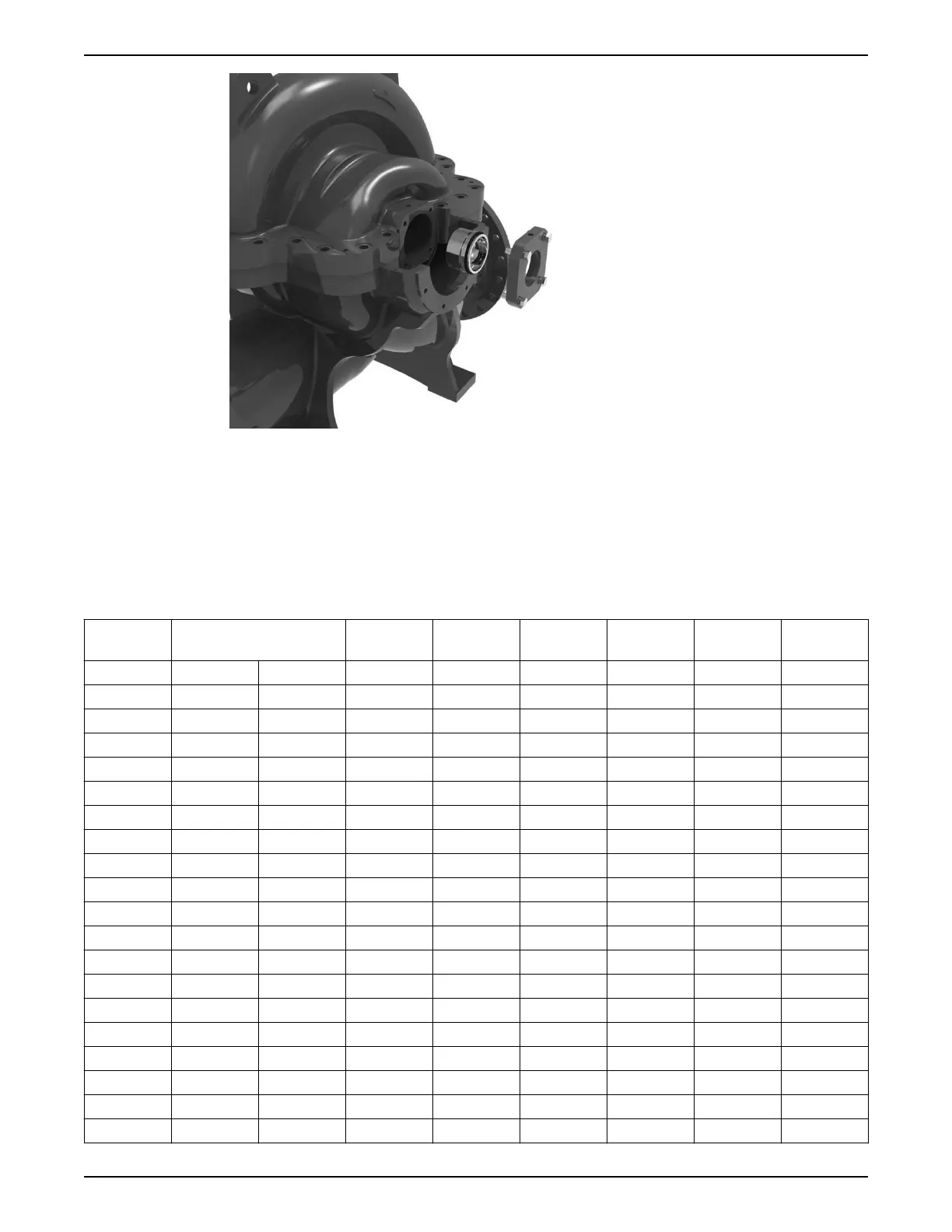

3.4.2 Pump casing data
Pump casing designs and characteristics vary within the e-XC pump family. The tables
below outline casing properties by pump model. Cast iron is the standard casing material
option in instances where both cast iron and ductile iron casings are available for the
same pump model. Pressure ratings indicate maximum working pressure of the pump.
For details regarding drop-in and integrated seal chamber designs, see Pump casing
variants on page 12.
Pump casing data for 60 Hz applications (North America)
Number Pump Model Seal chamber
type
Volute type Cast Iron (175
PSI)
Ductile Iron
(175 PSI)
Ductile Iron
(400 PSI)
Ductile Iron
(450 PSI)
1 3X5X8.5 3X5X8 Drop-in Single
2 3X5X11 3X5X10.5 Drop-in Single
3 3X5X12.5 3X5X12 Drop-in Single
4 3X5X13.5 3X5X13 Drop-in Single
5 4X5X6.5 4X5X6 Drop-in Single
6 4X5X6 4X6X9.5 Drop-in Single
7 4X6X13 4X6X12 Drop-in Single
8 4X6X14.5 4X6X13.5 Drop-in Single
9 4X6X16 4X6X15.5 Drop-in Single
10 5X6X7.5 5X6X7 Drop-in Single
11 5X8X9 5X8X8.5 Drop-in Single
12 5X8X9.5 5X8X9 Drop-in Single
13 5X8X12 5X8X11 Drop-in Single
14 5X8X14 5X8X13.5 Drop-in Single
15 5X8X15.5 5X8X14.5 Drop-in Single
16 5X8X19 5X8X18 Drop-in Single
17 6X8X6.5 6X8X6 Drop-in Single
18 6X8X12 6X8X11 Drop-in Single
19 6X8X14 6X8X13.5 Drop-in Single
20 6X8X18 6X8X17 Drop-in Single
3 Product Description
e-XC INSTRUCTION MANUAL 13
