5. Uncouple the lower halves of the outer [2] and inner [1] guard assemblies by removing
the two hex head bolts [9] located on the bottom two faces of the hex guard assembly.
6. Unfasten the remaining hex head bolts [9] from the various support structures [3-8] to
disassemble the remainder of the hex guard assembly. Note: Not all coupling guard
assemblies require pedestal pieces [8] or two guard support sets [3-6].
7. If desired, the stiffener clips [13] may be removed from the inboard bearing gland of
the pump by removing the bearing gland bolts which secure the clips in place.

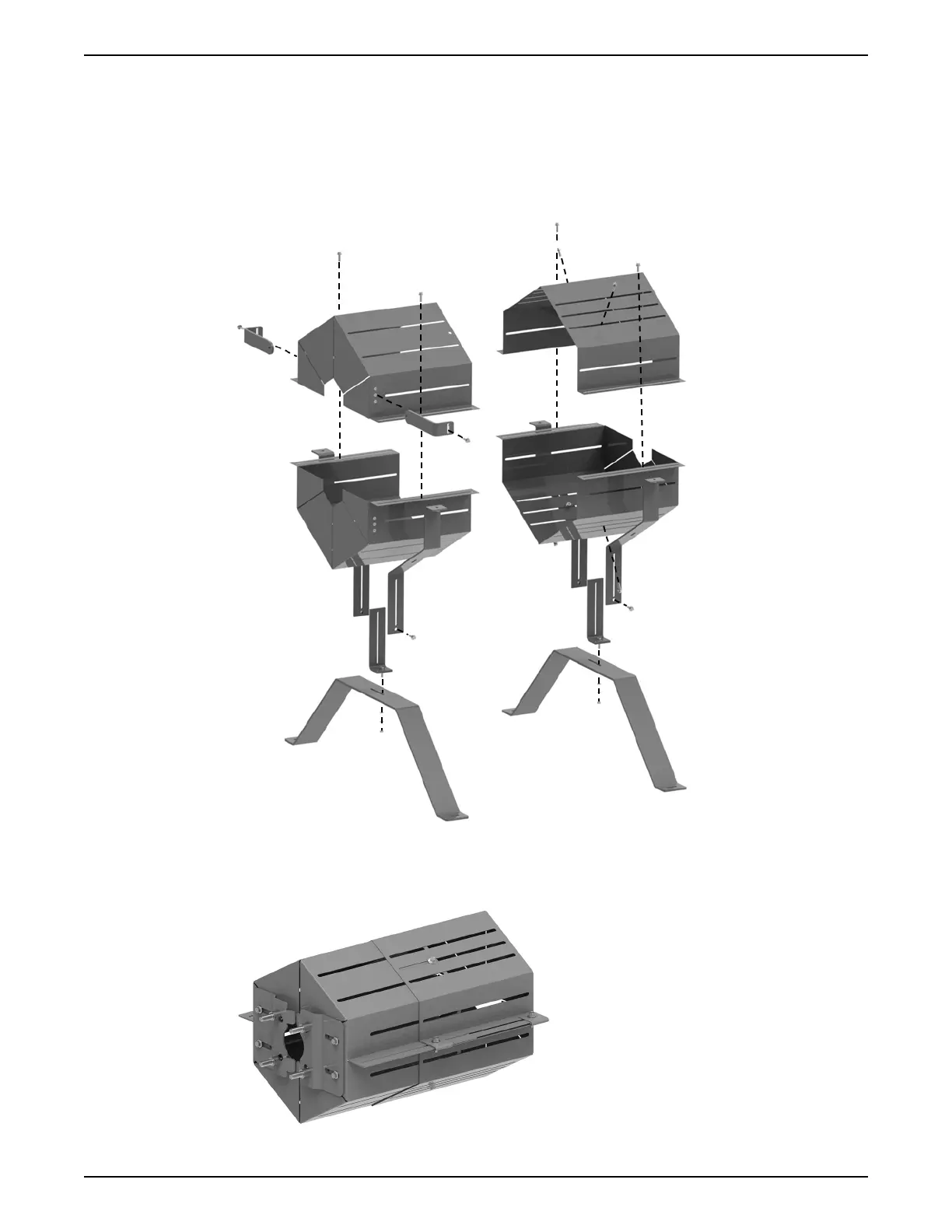

Figure 27: Coupling guard exploded view
6.5.4 Remove the hex coupling guard for floating guards
Figure 28: Fully assembled coupling guard — small bracket
6 Maintenance
e-XC INSTRUCTION MANUAL 47
