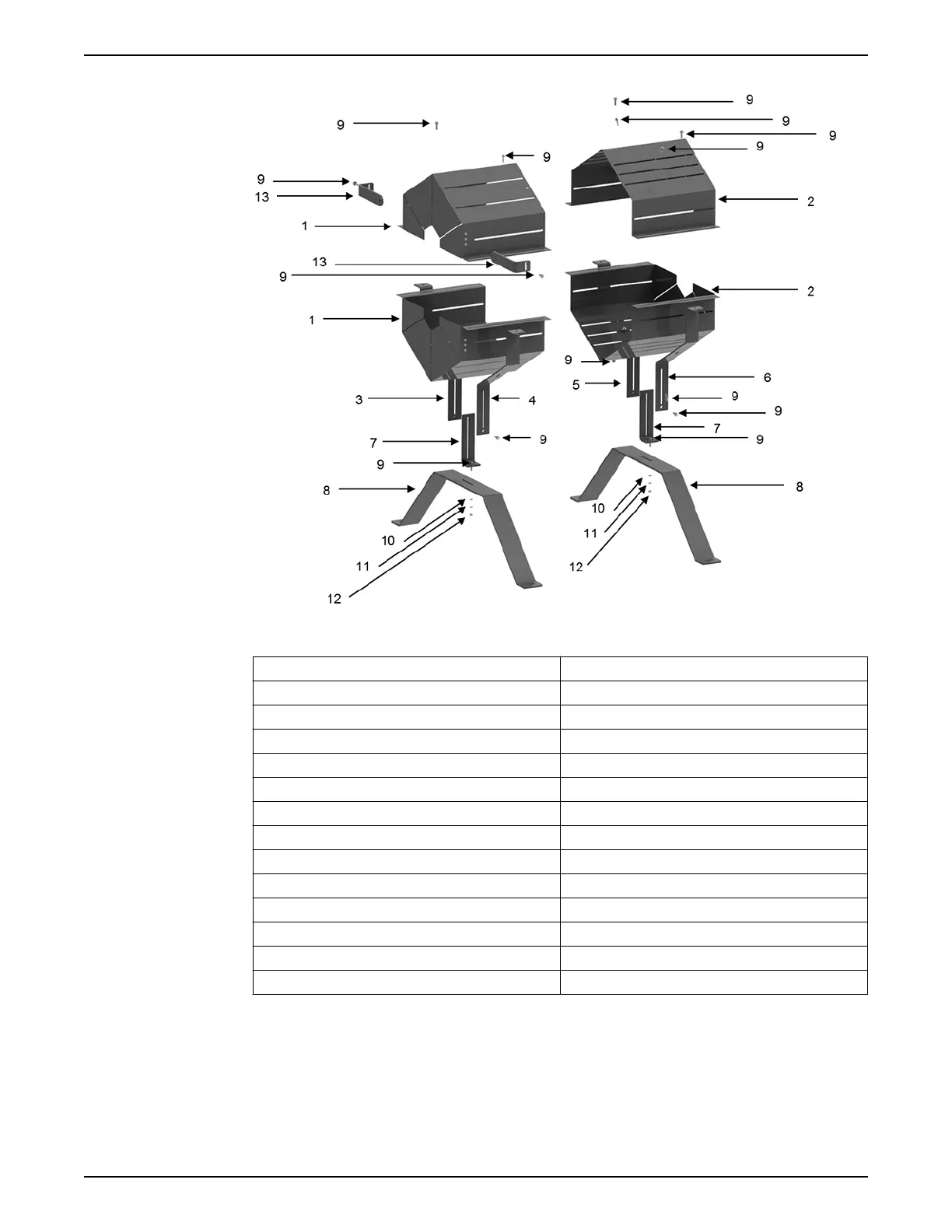

Figure 26: Coupling guard parts
Legend Part Name
1 Coupler Guard Assembly Inner
2 Coupler Guard Assembly Outer
3 Guard Support Pump Side Left
4 Guard Support Pump Side Right
5 Guard Support Motor Side Left
6 Guard Support Motor Side Right
7 Guard Support Lower
8 Pedestal
9 Hex Bolt
10 Washer
11 Lock Washer
12 Hex Nut
13 Stiffener Clip
2. Unfasten the hex bolts [9] that secure the stiffener clips [13] to the inner coupler guard
assembly [1].
3. Uncouple the upper halves of the outer [2] and inner [1] guard assemblies by
removing the two hex bolts [9] located on the top two faces of the hex guard
assembly.
4. Remove the upper halves of the outer [2] and inner [1] guard assemblies by
unfastening the hex head bolts [9] that fasten the flanges of the guards together and
lifting the upper guard halves.
