3. Check the impeller and casing to determine the correct rotational relationship. Insert
the outboard (non-driving end) of the shaft into the impeller bore horizontally using a
rubber mallet to gently tap the shaft in until the impeller is centered along the impeller
key length.

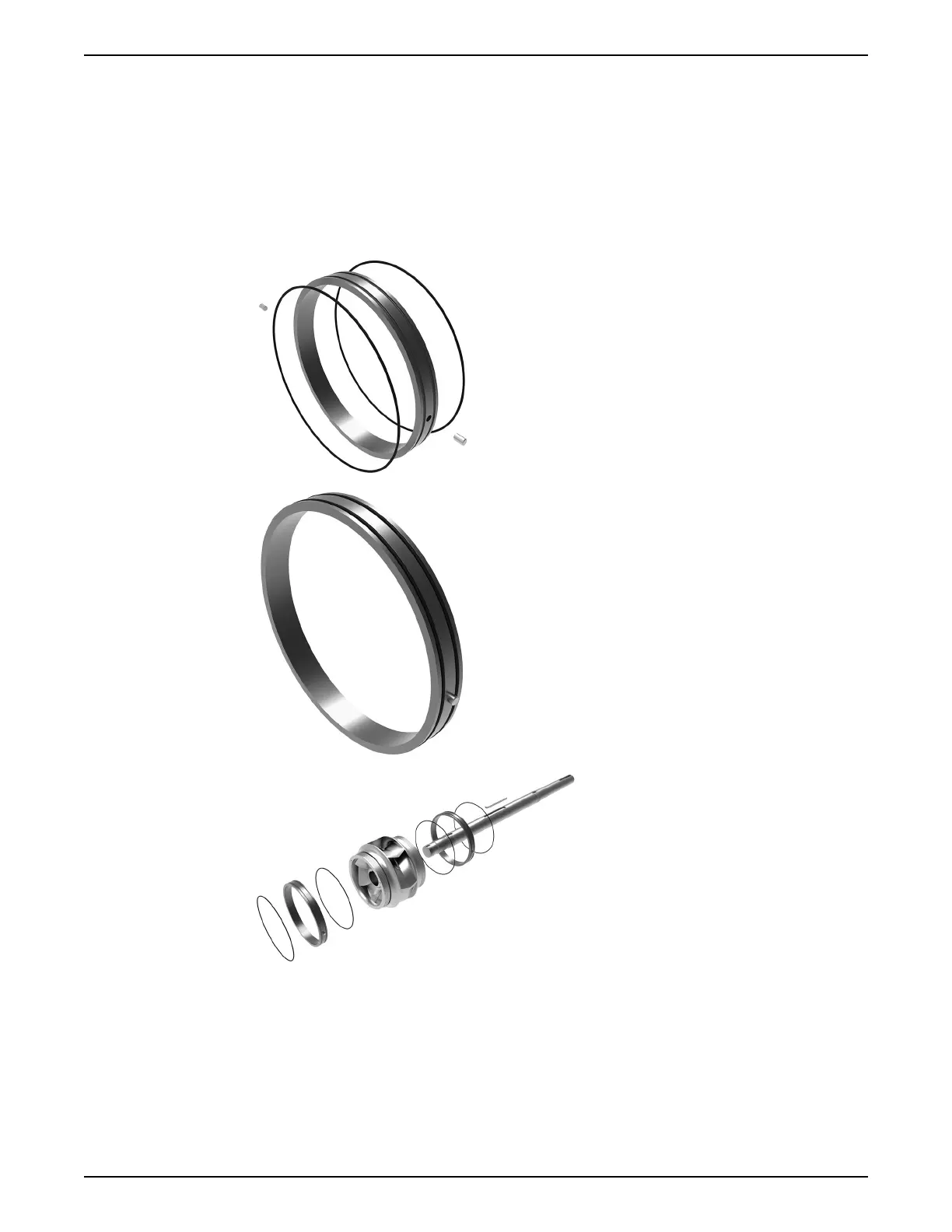

4. Lightly grease casing wear ring O-rings and roll them into their respective grooves.
Insert two steel pins into each casing wear ring. Slide the casing wear rings over the
impeller eye.
5. Fix the impeller in place by placing the impeller snap ring adjacent to the outboard
impeller hub.
6 Maintenance
e-XC INSTRUCTION MANUAL 85
