Xylem FLYGT SmartRun SRC 311 User Manual

IP55
A BC
D
EGF
H
I
Frame size 4 5 6
A mm (in) 450.0 (17.72) 540.0 (21.26) 865.0 (34.06)
B mm (in) 428.0 (16.85) 515.0 (20.28) 830.0 (32.68)
C mm (in) 433.0 (17.05) 520.0 (20.47) 840.0 (33.07)
D mm (in) 8.0 (0.315) 8.0 (0.315) 10.0 (0.394)
E mm (in) 252.0 (9.92) 270.0 (10.63) 330.0 (12.99)
F mm (in) 171.0 (6.73) 235.0 (9.25) 330.0 (12.99)
G mm (in) 110.0 (4.33) 175.0 (6.89) 200.0 (7.87)
H mm (in) 4.25 (0.167) 4.25 (0.167) 5.50 (0.217)
I mm (in) 7.5 (0.295) 7.5 (0.295) 11.0 (0.295)
IP66
A
E
B
C
D
G
H
F
I
Frame size 2 3
A mm (in) 257.0 (10.12) 310.0 (12.20)
B mm (in) 220.0 (8.67) 276.5 (10.89)
C mm (in) 200.0 (7.87) 251.5 (9.90)

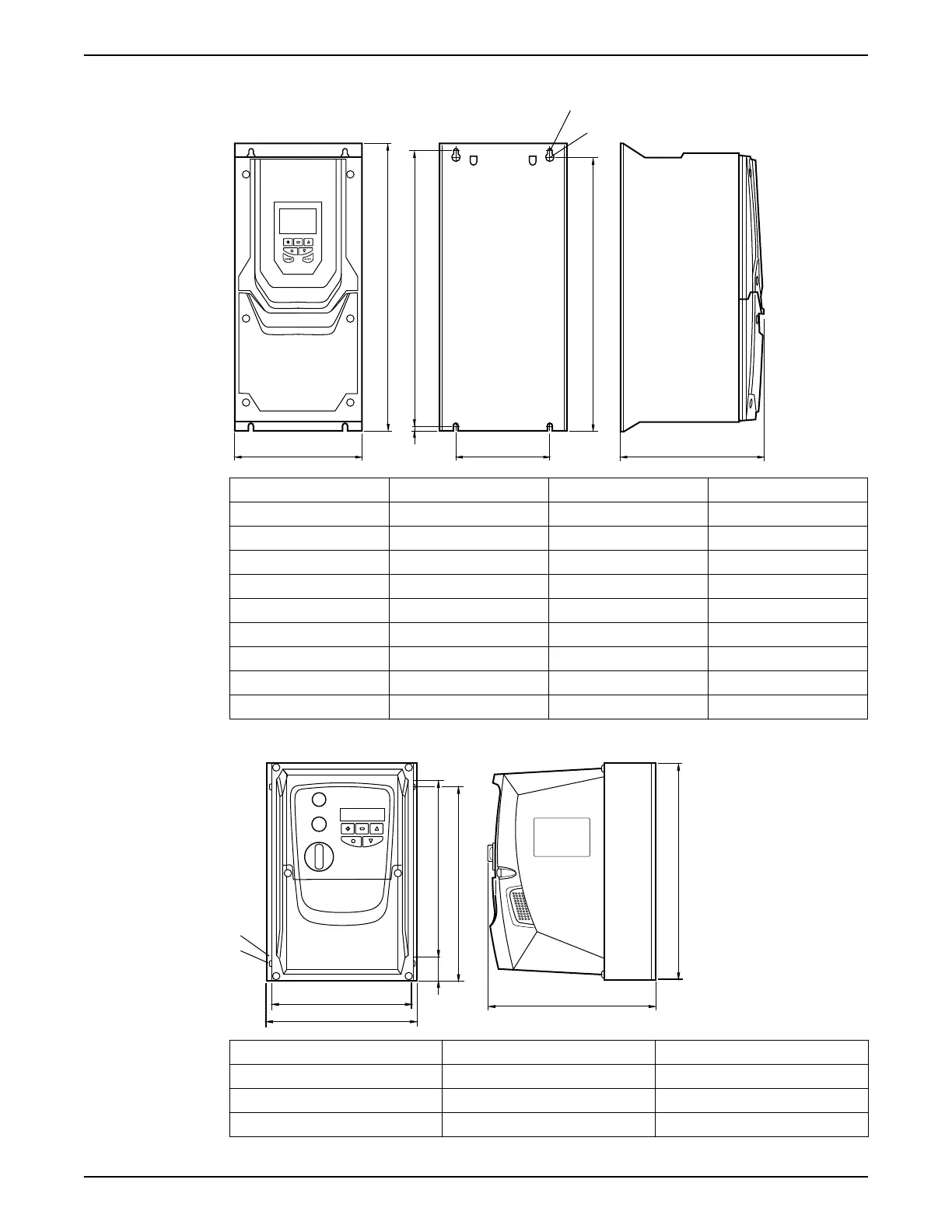

Mechanical Installation
14 SRC 311 - SmartRun
™
Installation, Operation, and Maintenance Manual

Xylem FLYGT SmartRun SRC 311 Specifications

General

Brand	Xylem
Model	FLYGT SmartRun SRC 311
Category	Controller
Language	English
