VX-8DR OPERATING MANUAL 3

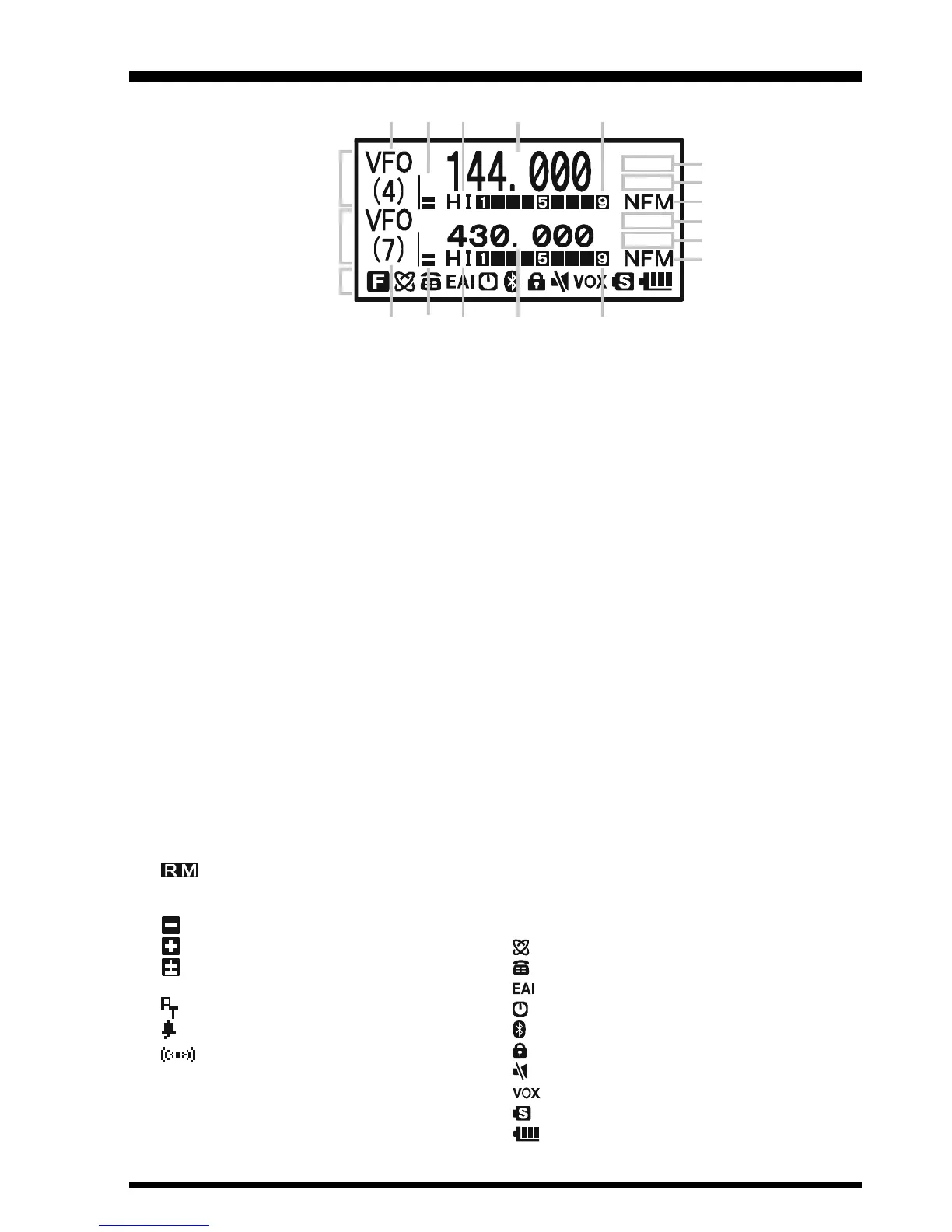

DISPLAY ICONS & INDICATORS

FREQUENCY CONTROL
VFO: VFO Mode
MR: Memory Mode
MT: Memory Tune Mode
HOM: Home Channel Memory
PMS: Programmable Memory Scan Mode
VDW: Dual Watch Active
(VFO-Memory Channel)
MDW:Dual Watch Active
(Memory Channel-Memory Channel)

SQUELCH TYPE & RADIO MODE
TN: Tone Encoder Active
TSQ: Tone Squelch Active
DCS: Digital Code Squelch Active
RTN: Reverse Tone Squelch Active
PR: User Programmed Reverse CTCSS Decoder Active
PAG: Enhanced Paging & Code Squelch (EPCS) Active
MSG: Message Feature Active
DC: Split Tone Feature Active (DCS Encode only)
T-D: Split Tone Feature Active (Encodes a CTCSS Tone and Decodes a DCS Code)
D-T: Split Tone Feature Active (Encodes a DCS Code and Decodes a CTCSS Tone)
A12:APRS
®
Feature Active (1200 bps)
A96:APRS
®
Feature Active (9600 bps)
: AM/FM Broadcast Reception

MISCELLANEOUS SETTING
: Repeater Shift Direction (Minus Shift)
: Repeater Shift Direction (Plus Shift)
: Independent Transmit Frequencies
(Odd Splits)
: Attenuator Active
: Bell Alarm Active
: Receiving an FM Stereo Signal

OPERATING MODE
NFM: FM
WFM: Wide FM
AM: AM
“B” Band
Display
Icon






 


VOLUME LEVEL

TX POWER LEVEL
HI: High Power (5 W)
L3: LOW3 Power (2.5 W)
L2: LOW2 Power (1 W)
L1: LOW1 Power (0.02 W)

OPERATING FREQUENCY

S&PO METER
ICON
: Secondary Keypad Active
: Internet Connection Feature (WiRES
TM
) Active
: DTMF Autodialer Active
: Emergency Automatic ID (EAI) Feature Active
: Automatic Power-Off Active
: Bluetooth
®
Active
: Key Lock Active
: Mute Feature Active
: VOX Feature Active
: Battery Saver Active
: Battery Indicator
