MIDI 169
02R User’s Guide
Yamaha Programmable Mixer 01
02R controls can be used to remotely control the following parameters of a
Yamaha Programmable Mixer 01.
Programmable Mixer 01 Setup

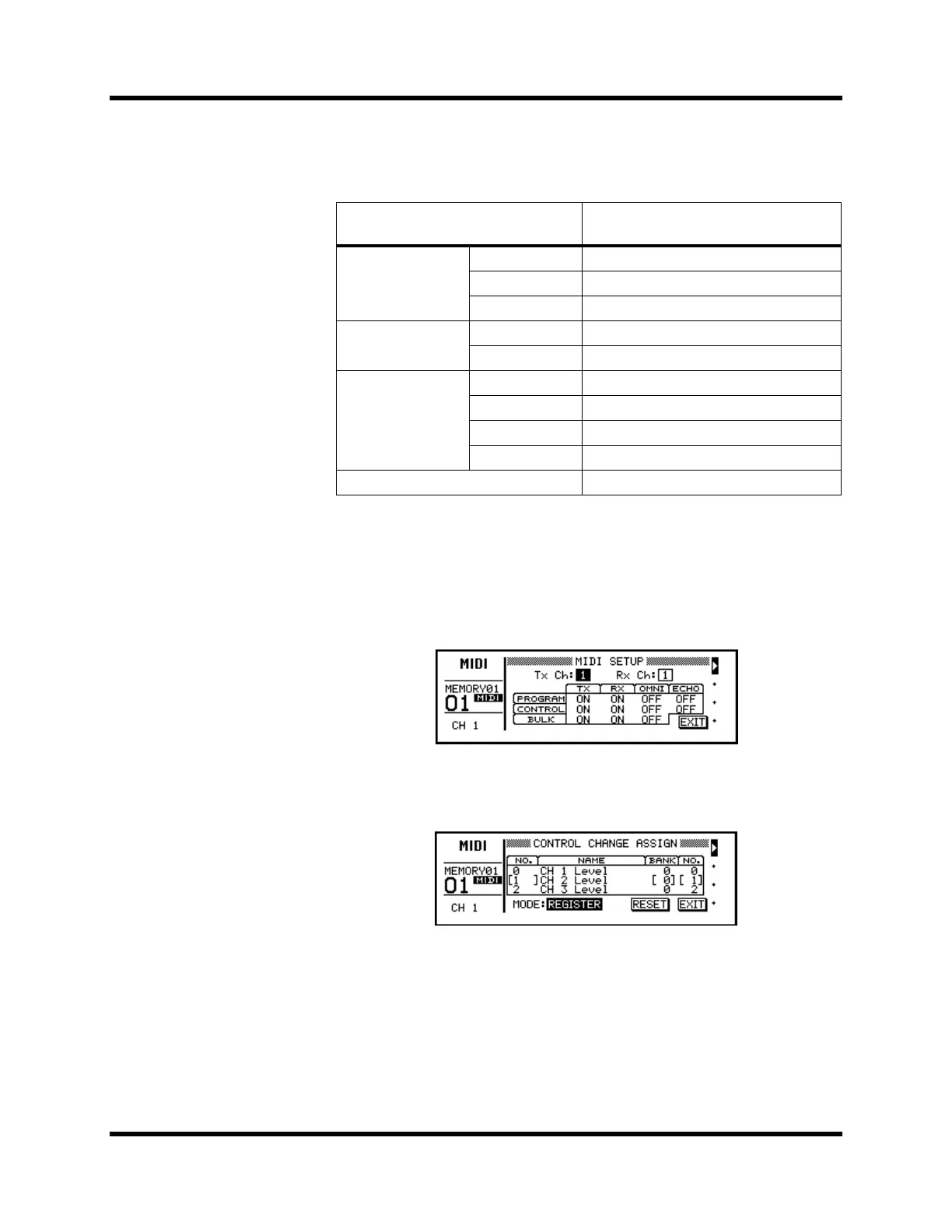

On the Programmable Mixer 01’s MIDI SETUP page, set the PROGRAM,
CONTROL, and BULK parameters as shown below. Set the Tx Ch and Rx
Ch parameters to match the MIDI Transmit Channel and Receive Channel
settings on the 02R’s MIDI 1/5 page.
On the Programmable Mixer 01’s CONTROL CHANGE ASSIGN page, set
the Control Change mode to REGISTER, as shown below.
02R Controls
Parameters on the
Programmable Mixer 01
Faders MIC 1–16 Channel levels 1–16
17/18 Stereo input level
STEREO Stereo output level
Rotary encoders TAPE 1–16 Input channel pans 1–16
EFF1 & EFF2 Effects returns levels 1 & 2
[ON] buttons MIC 1–16 Channel on/off 1–16
EFF1 & EFF2 Effects returns on/off 1 & 2
17/18 Stereo input on/off
STEREO Stereo output on/off
Display functions Mix scene recall
