MIDI 171
02R User’s Guide
Yamaha 02R Digital Mixing Console
02R controls can be used to remotely control the following parameters of a
Yamaha 02R Digital Mixing Console.
Remote 02R Setup

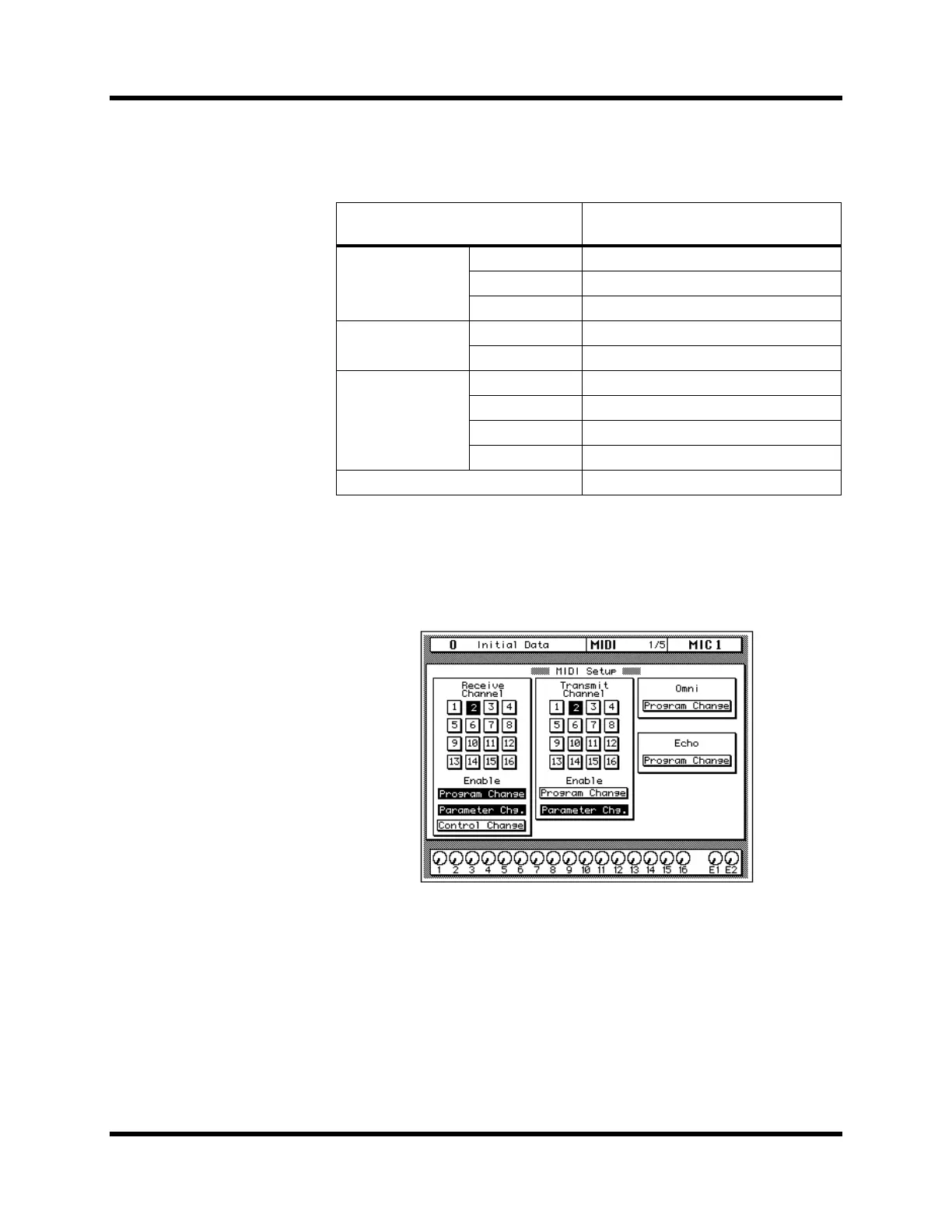

On the MIDI 1/5 page of the remote 02R, set the Program Change and
Parameter Change parameters as shown below. Set the MIDI Receive and
Transmit Channels to match those of the controlling 02R
02R Controls
Parameters on the
02R Digital Mixing Console
Faders MIC 1–16 MIC levels 1–16
LINE 17–24 LINE levels 17–24
STEREO Stereo output level
Rotary encoders TAPE 1–16 TAPE levels 1–16
EFF1 & EFF2 Effects returns levels 1 & 2
[ON] buttons MIC 1–16 MIC on/off 1–16
LINE 17–24 LINE on/off 17–24
EFF1 & EFF2 Effects returns on/off 1 & 2
STEREO Stereo output on/off
Display functions Mix scene recall
