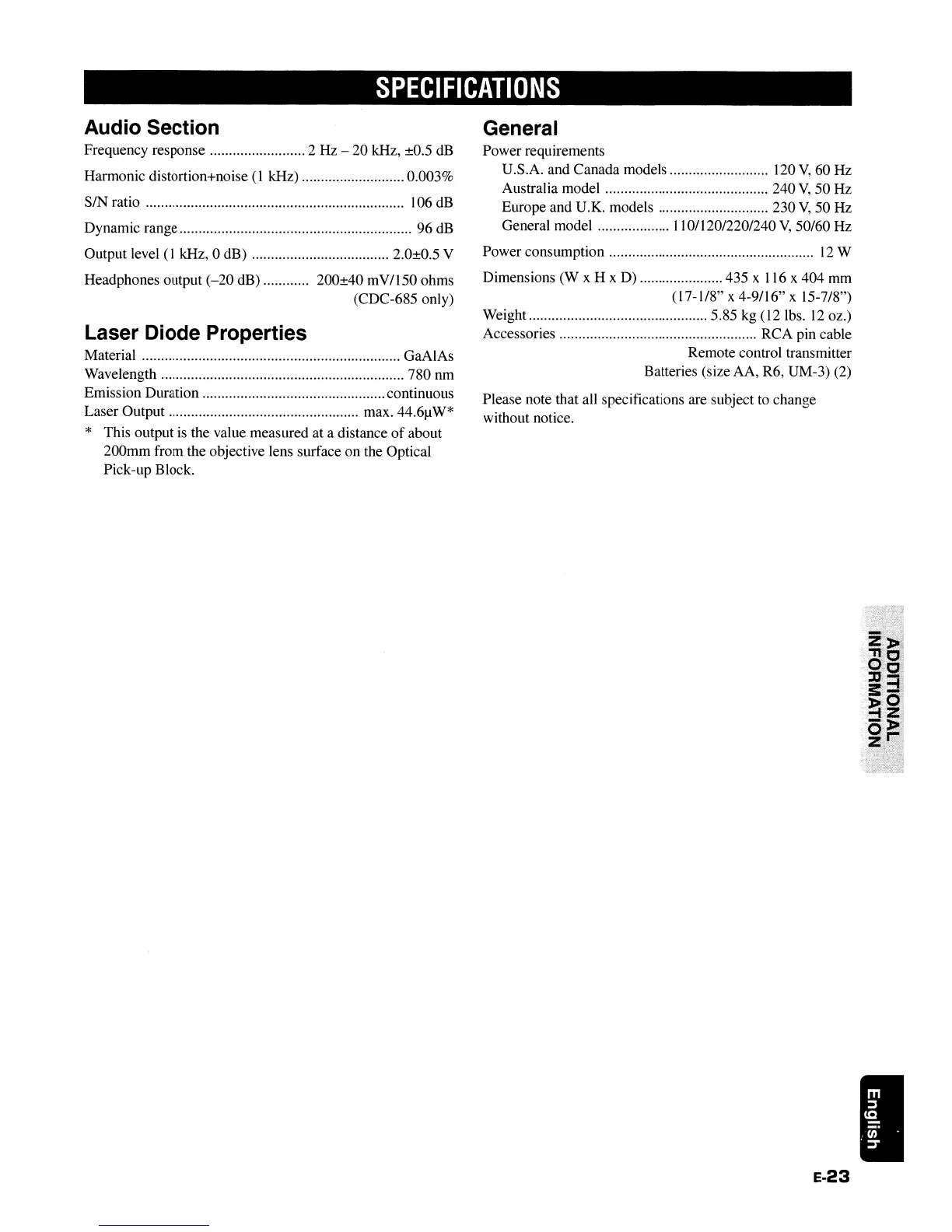

SPECIFICATIONS
Audio Section
Frequency response 2 Hz - 20 kHz, ±0.5 dB
Harmonic distortion+noise
(1
kHz) 0.003%
SIN ratio
106
dB
Dynamic range 96 dB
Output level
(1
kHz, 0 dB) 2.0±0.5 V
Headphones output
(-20
dB) 200±40 mV/150 ohms
(CDC-685 only)
Laser Diode Properties
Material GaAIAs
Wavelength 780 nm
Emission Duration continuous
Laser Output max. 44.6JlW*
* This output
is
the value measured at a distance
of
about
200mm from the objective lens surface on the Optical
Pick-up Block.
General
Power requirements
U.S.A. and Canada models 120
V,
60 Hz
Australia model 240
V,
50 Hz
Europe and U.K. models 230
V,
50 Hz
General model 110/120/220/240
V,
50/60 Hz
Power consumption
12
W
Dimensions (W x H x D) 435 x 116 x 404 mm
(17-1/8" x 4-9/16" x 15-7/8")
Weight 5.85 kg (12 lbs.
12
oz.)
Accessories RCA pin cable
Remote control transmitter
Batteries (size AA, R6, UM-3) (2)
Please note that all specifications are subject to change
without notice.
E-23
