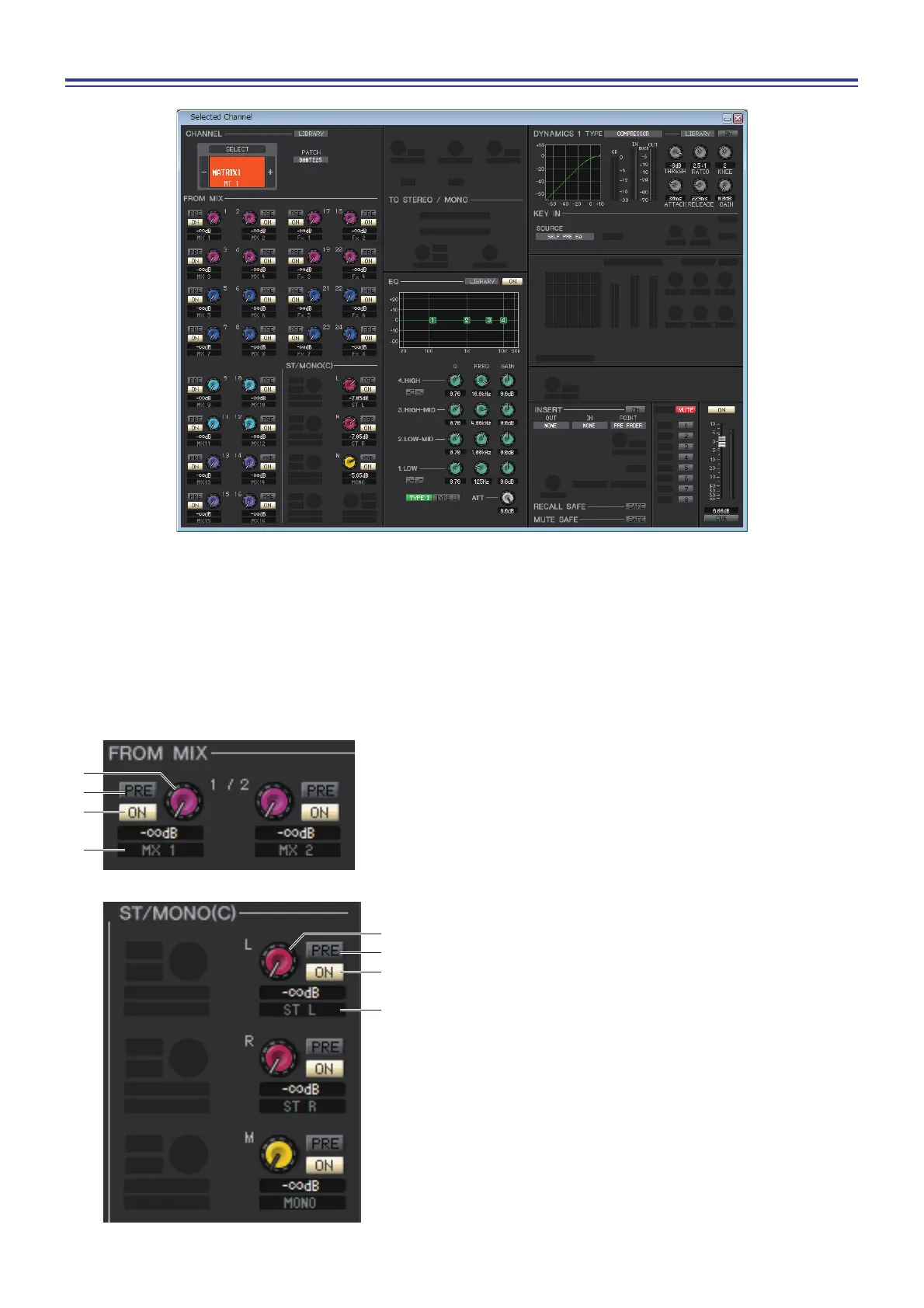

If a MATRIX channel is selected
❏ CHANNEL SELECT (Channel selection)
Except for the fact that your editing applies to a MATRIX channel, this is the same as the channel selection for a MIX
channel (➥ p.37.)
❏ FROM MIX, ST/MONO(C)
1 FROM MIX, ST/MONO(C) send level
These adjust the send levels of the signals sent from the MIX
buses or STEREO/MONO buses to the MATRIX bus. The cur-
rent value is shown in the numerical box immediately below.
2 PRE (PRE on/off)
These select either PRE or POST as the position from which the
signal is sent from the MIX buses or STEREO/MONO buses to
the MATRIX bus. PRE EQ or PRE FADER is selected if this is
on, or POST FADER is selected if this is off. The PRE EQ/
FADER setting can be made in the Mixer Setup dialogbox.
3 ON(FROM MIX, ST/MONO send on/off)
These are on/off switches for the signal sent from the MIX buses
or STEREO/MONO buses to the MATRIX bus.
4 Channel name
This section indicates the name of the MIX channel or STEREO/
MONO channel.
