Rear Panel 31
DM2000—Owner’s Manual

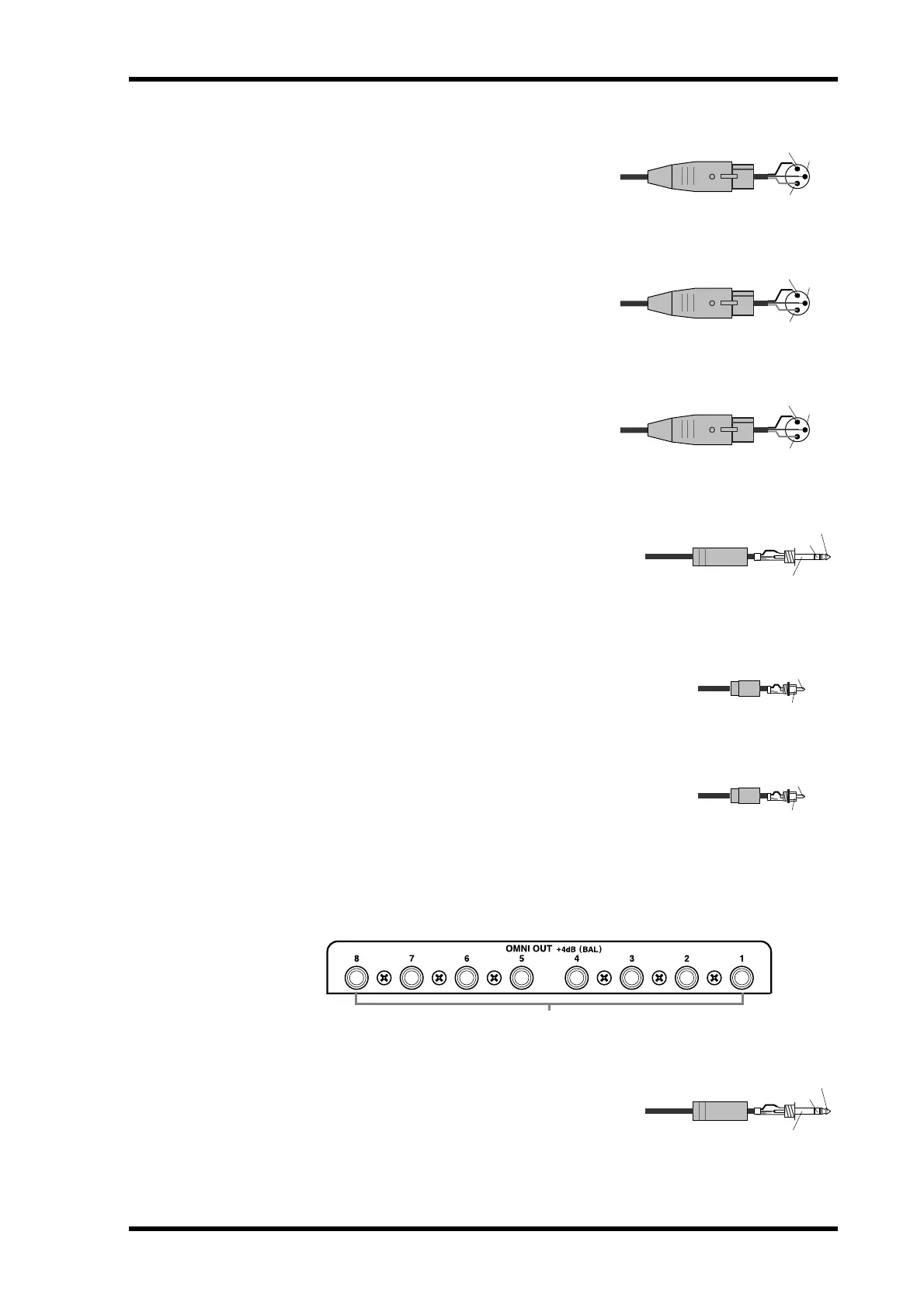

B STEREO OUT +4 dB (BAL)
These balanced XLR-3-32-type connectors, nominal
output level +4 dB, output the analog Stereo Out signal
and are typically connected the stereo inputs of a
2-track recorder. They are wired pin 1–ground, pin
2–hot (+), and pin 3–cold (–). See “Stereo Out Connectors” on page 82.
C SMALL CONTROL ROOM MONITOR OUT +4 dB (BAL)
These balanced XLR-3-32-type connectors, nominal
output level +4 dB, output the analog Small Control
Room Monitor signal and are typically used to feed the
control room’s nearfield monitors. See “Control Room
Monitoring” on page 132 for more information.
D LARGE CONTROL ROOM MONITOR OUT +4 dB (BAL)
These balanced XLR-3-32-type connectors, nominal
output level +4 dB, output the analog Large Control
Room Monitor signal and are typically used to feed the
control room’s main monitors. See “Control Room
Monitoring” on page 132 for more information.
E 2TR IN ANALOG 1 +4 dB (BAL)
These balanced 1/4-inch TRS phone jacks, nominal input
level +4 dB, are typically used to connect the analog stereo
outputs of a 2-track recorder. Signals connected here can
be monitored via the CONTROL ROOM MONITOR
OUT by pressing the CONTROL ROOM [2TR A1] button. In addition, this input can be
patched to Input Channels or Insert Ins. See “2TR Analog INs” on page 49.
F STEREO OUT –10 dBV (UNBAL)
These unbalanced phono connectors, nominal output level
–10 dBV, output the analog Stereo Out signal and are typically con-
nected to the stereo inputs of a 2-track recorder. See “Stereo Out
Connectors” on page 82.
G 2TR IN ANALOG 2 –10 dBV (UNBAL)
These unbalanced phono connectors, nominal input level
–10 dBV, are typically used to connect the analog stereo outputs of
a 2-track recorder. Signals connected here can be monitored via the
CONTROL ROOM MONITOR OUTs by pressing the CONTROL
ROOM [2TR A2] button. In addition, this input can be patched to Input Channels or Insert
Ins. See “2TR Analog INs” on page 49.
OMNI OUT Section
A OMNI OUT +4dB (BAL)
These balanced 1/4-inch TRS phone jacks, nominal output
level +4 dB, provide eight analog outputs that can be
patched to the following: Bus Outs, Aux Sends, Matrix
Sends, the Stereo Out, Insert Outs, Direct Outs, or Sur-
round Monitor Channels. See “Omni Outs” on page 49.
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
1/4" TRS phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
Phono plug
Tip (hot)
Sleeve (ground)
Phono plug
Tip (hot)
Sleeve (ground)
1
1/4" TRS phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
