23.VIDEO

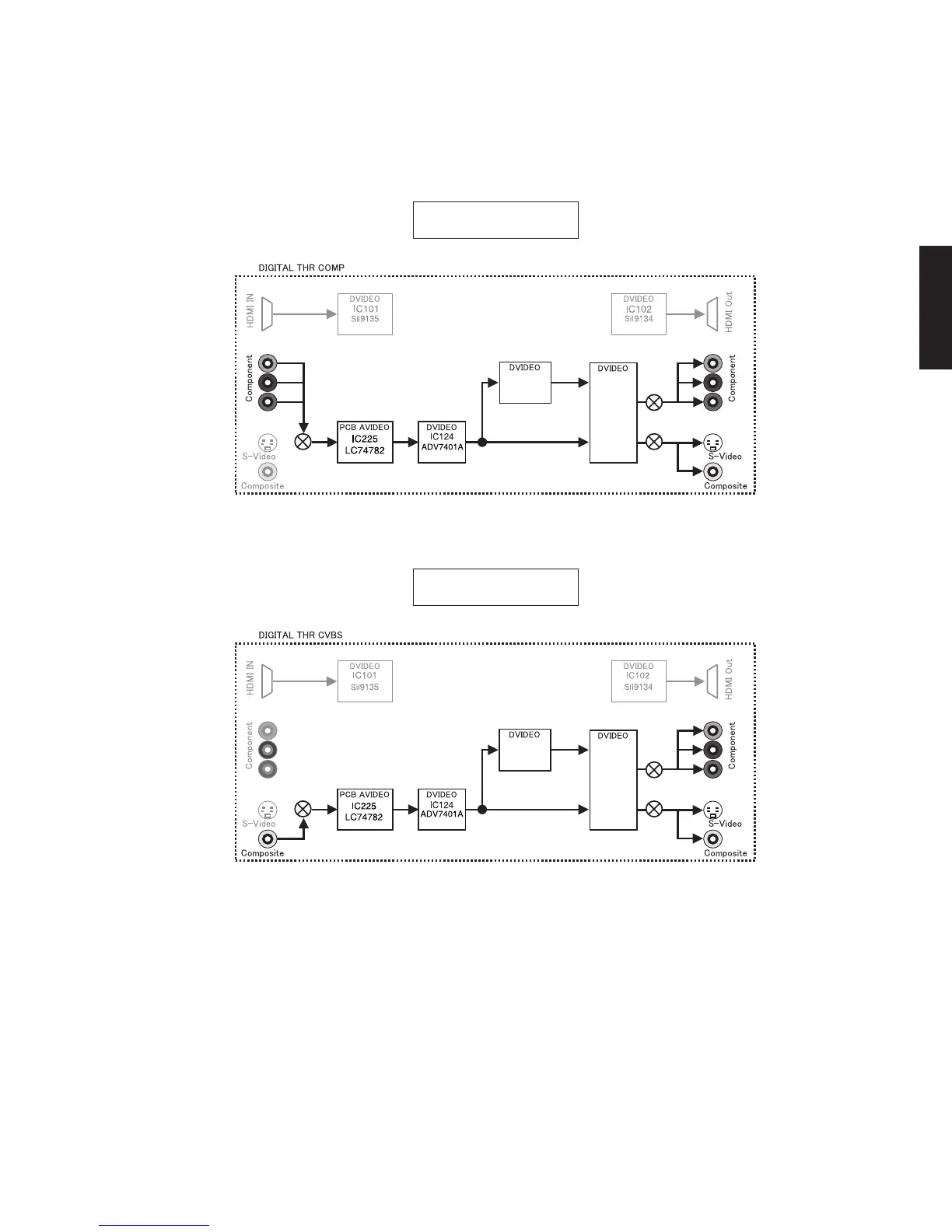

The image signal is converted and output as follows.
DIGITAL THR COMP
*
The image signal 480P/580P is not output at S-VIDEO
output and COMPOSITE output terminals.
23.VIDEO
映像信号が以下のように変換され、出力されます。
DIGITALTHRCOMP
＊ S-VIDEO出力、およびCOMPOSITE出力端子へ映像信
号480P/580Pは出力されません。
IC145
IP00C772
IC123
ADV7342
*
*
DIGITAL THR CVBS DIGITALTHRCVBS
IC145
IP00C772
IC123
ADV7342
23.VIDEO
DIGITAL COMP
23.VIDEO
DIGITAL CVBS
