4-54

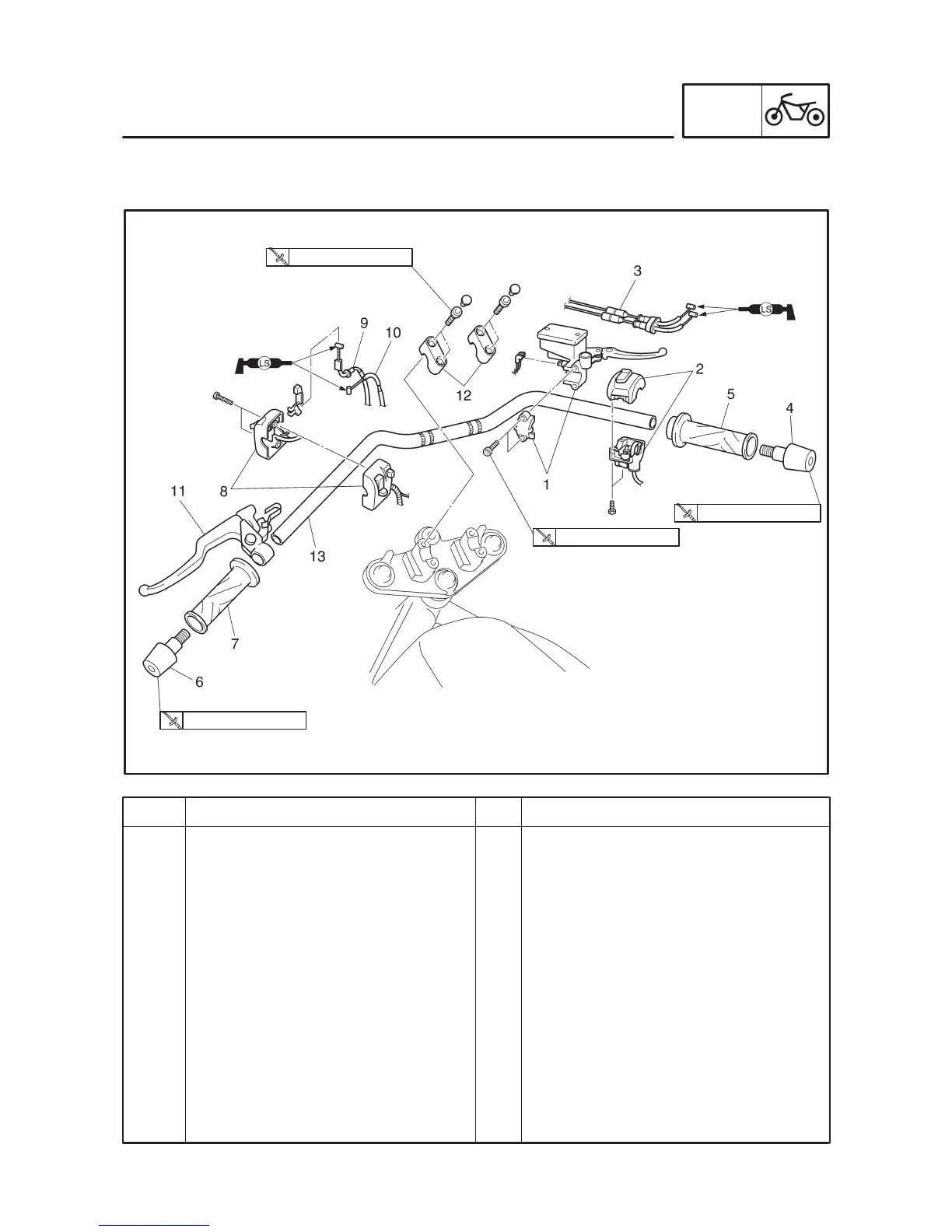

HANDLEBAR
CHAS
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
Removing the handlebar
Front brake master cylinder
Right handlebar switch
Throotle cable
Grip end (right)
Throttle grip
Grip end (left)
Left grip
Left handlebar switch
Starter cable
Clutch cable
Clutch lever
Handlebar holder
Handlebar
1
1
1
1
1
1
1
1
1
1
1
2
1
Remove the parts in the order listed.
For installation, reverse the removal
procedure.
23 Nm (2.3 mkg)
26 Nm (2.6 mkg)
10 Nm (1.0 mkg)
26 Nm (2.6 mkg)
EAS00664
HANDLEBAR
