Yamaha FZS1000(N) 2001 User Manual

3-13

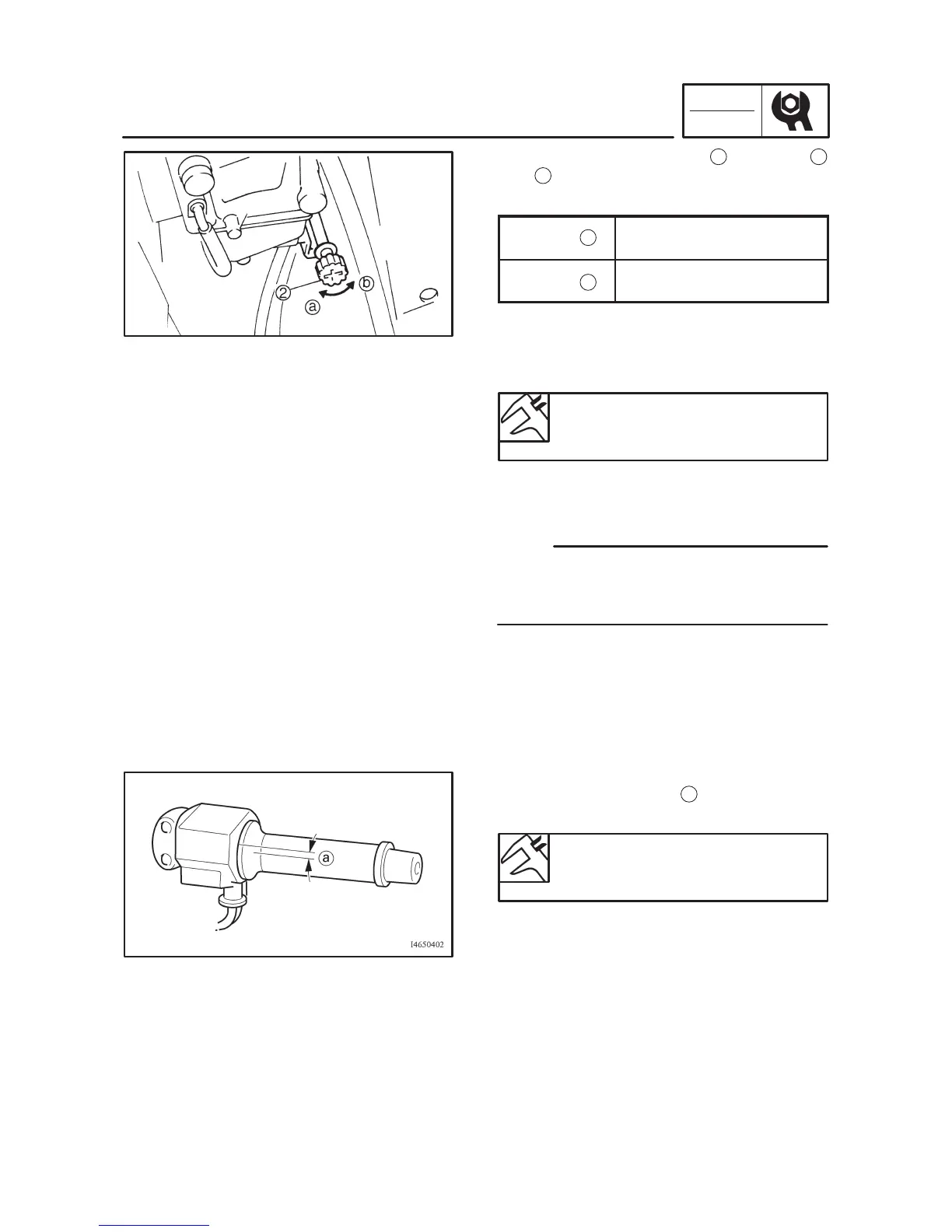

ADJUSTING THE ENGINE IDLING SPEED/
ADJUSTING THE THROTTLE CABLE FREE PLAY
CHK
ADJ
a
b
NOTE:
c. Turn the throttle stop screw
2
in direction
a
or
b
until the specified engine idling speed is
obtained.
Direction
Engine idling speed is in-
creased.
Direction
Engine idling speed is
decreased.
5. Adjust:
 throttle cable free play
Refer to “ADJUSTING THE THROTTLE
CABLE FREE PLAY”.
Throttle cable free play (at the
flange of the throttle grip)
3 X 5 mm
EAS00055
ADJUSTING THE THROTTLE CABLE FREE
PLAY
Prior to adjusting the throttle cable free play, the
engine idling speed and carburetor synchro-
nization should be adjusted properly.
1. Check:
 throttle cable free play
a
Out of specification  Adjust.
Throttle cable free play (at the
flange of the throttle grip)
3 X 5 mm
2. Remove:
 seat
 fuel tank

Yamaha FZS1000(N) 2001 Specifications

General

Displacement	998 cc
Bore x Stroke	74.0 mm x 58.0 mm
Compression Ratio	11.4:1
Fuel System	Fuel Injection
Transmission	6-speed
Seat Height	820 mm
Fuel Capacity	21 liters
Rear Suspension	Swingarm (link suspension)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	1, 450 mm
Dry Weight	208 kg
Final Drive	Chain
Frame	Aluminium Deltabox
Starter	Electric
Engine Type	Liquid-cooled, 4-stroke, DOHC, 5-valve, inline-4
Power	143 hp @ 10, 000 rpm
Torque	106 Nm @ 7, 500 rpm
Ignition	Digital TCI
Front Suspension	Telescopic fork
Front Brake	Double disc, Ø 298 mm
Rear Brake	Single disc, Ø 245 mm
Ground Clearance	140 mm
Valves	20 valves
