5-76
CRANKCASE
ENG
NOTE:
NOTE:
EAS00414

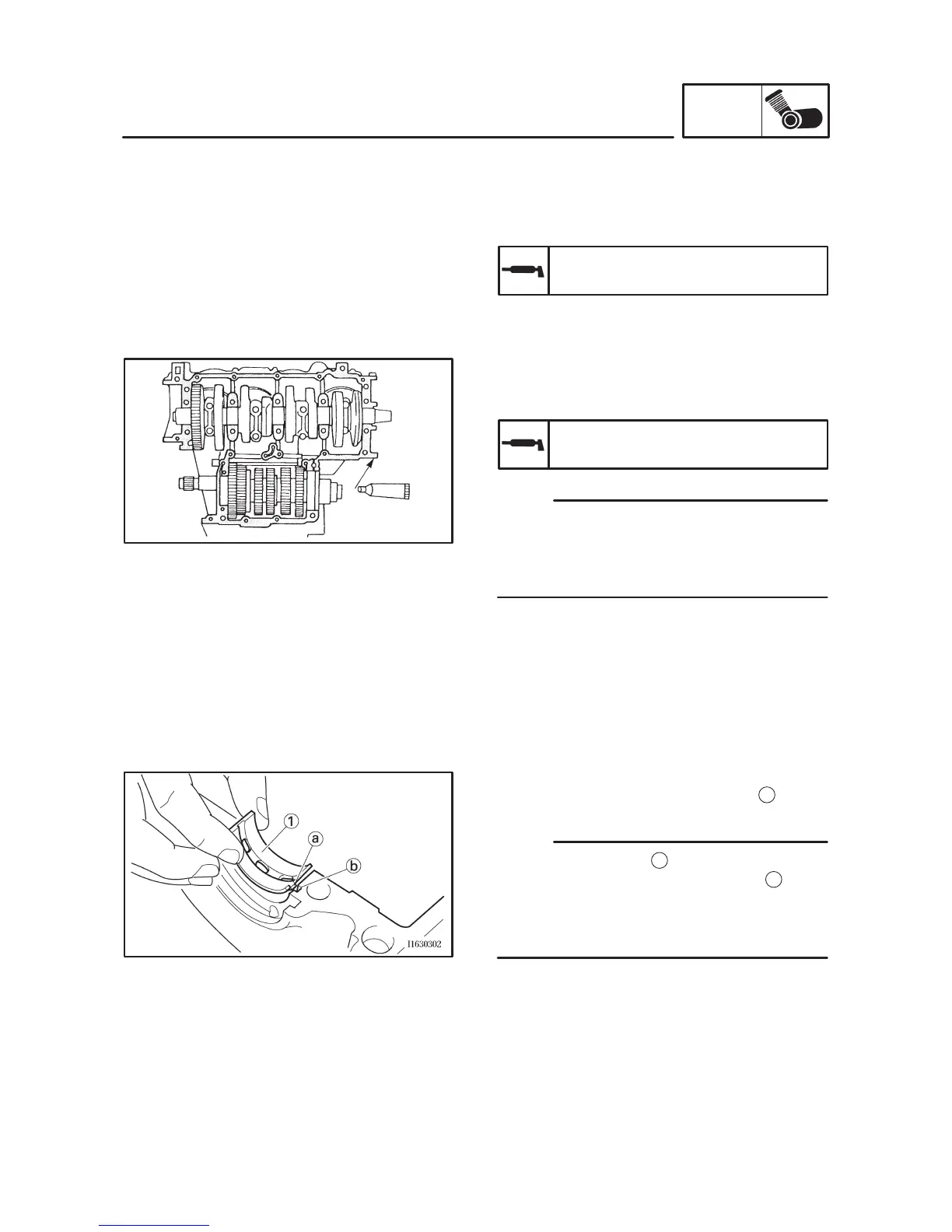

ASSEMBLING THE CRANKCASE
1. Lubricate:
crankshaft journal bearings
(with the recommended lubricant)
Recommended lubricant
Engine oil
2. Apply:
sealant
(onto the crankcase mating surfaces)
Yamaha bond No. 1215
90890-85505
Do not allow any sealant to come into contact
with the oil gallery or crankshaft journal bear-
ings. Do not apply sealant to within 2 3 mm of
the crankshaft journal bearings.
3. Install:
dowel pin
4. Install:
crankshaft journal lower bearings
1
(into the lower crankcase)
Align the projections
a
on the crankshaft jour-
nal lower bearings with the notches
b
in the
crankcase.
Install each crankshaft journal lower bearing in
its original place.
5. Set the shift drum assembly and transmis-
sion gears in the neutral position.
