Yamaha FZS1000(N) 2001 User Manual

5-73
CRANKCASE
ENG
NOTE:

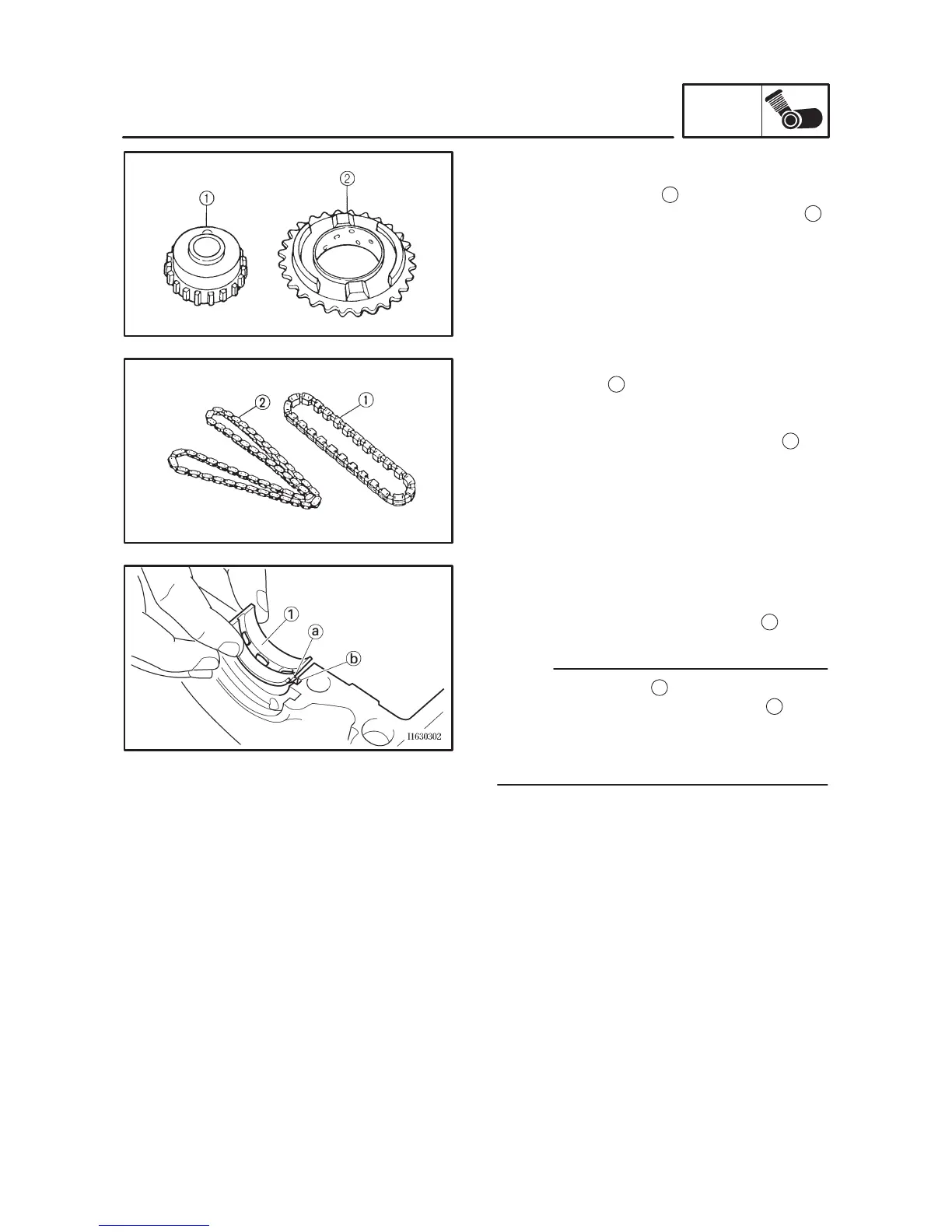

CHECKING THE SPROCKETS AND CHAINS
1. Check:
 crankshaft sprocket
1
 oil/water pump assembly drive sprocket
2
Cracks/damage/wear  Replace the de-
fective part(-s).
2. Check:
 timing chain
1
Damage/stiffness  Replace the timing
chain and crankshaft sprocket as a set.
 oil/water pump assembly drive chain
2
Damage/stiffness  Replace the oil/water
pump assembly drive chain and oil/water
pump assembly drive sprocket as a set.
EAS00407
INSTALLING THE CRANKSHAFT
1. Install:
 crankshaft journal upper bearings
1
(into the upper crankcase)
 Align the projections
a
on the crankshaft jour-
nal upper bearings with the notches
b
in the
crankcase.
 Be sure to install each crankshaft journal up-
per bearing in its original place.
2. Install:
 crankshaft
