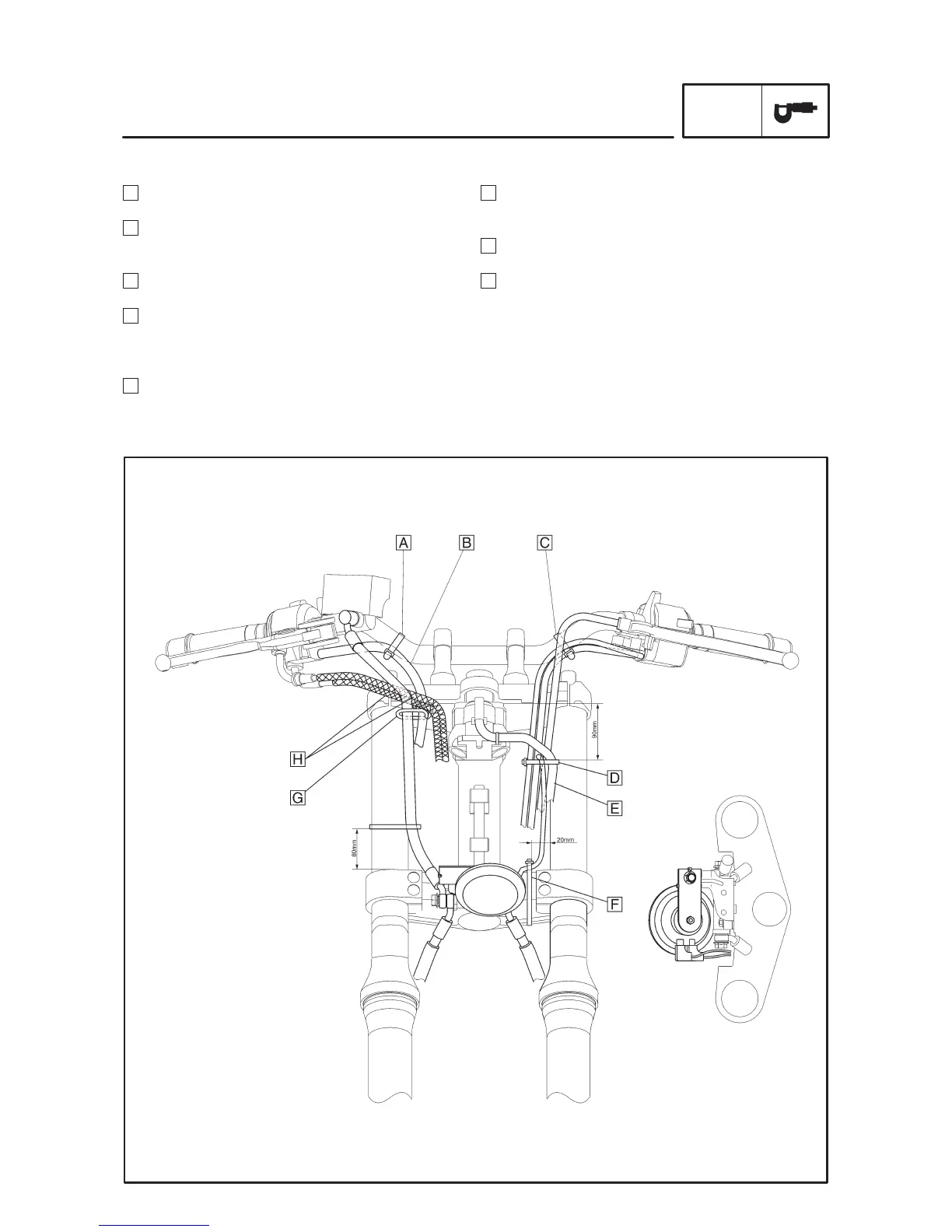

CABLE ROUTING
SPEC
F Route the horn lead outside the motorcycle body,
and fasten with the under bracket. Do not loose be-
tween the horn and under bracket.
G Route the brake hose through the brake hose
guide.
H Route the throttle cable 1 and 2 backward the brake
hose, and left side the brake hose guide.
A Fasten the handlebar switch lead (right) and han-
dlebar with a plastic band.
B Route the handlebar switch lead (right) backward
the throttle cable and right side the brake hose
guide.
C Fasten the handlebar switch lead (left) and handle-
bar with a plastic band.
D Fasten the handlebar switch lead (left), main switch
lead, clutch cable and starter cable with a plastic
band. Clamp beneath the horn lead branching posi-
tion. Do not fasten the horn lead.
E Route the main switch lead front and left side the
another leads.
EAS00035
CABLE ROUTING

Yamaha FZS1000(N) 2001 Specifications

General

Displacement	998 cc
Bore x Stroke	74.0 mm x 58.0 mm
Compression Ratio	11.4:1
Fuel System	Fuel Injection
Transmission	6-speed
Seat Height	820 mm
Fuel Capacity	21 liters
Rear Suspension	Swingarm (link suspension)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	1, 450 mm
Dry Weight	208 kg
Final Drive	Chain
Frame	Aluminium Deltabox
Starter	Electric
Engine Type	Liquid-cooled, 4-stroke, DOHC, 5-valve, inline-4
Power	143 hp @ 10, 000 rpm
Torque	106 Nm @ 7, 500 rpm
Ignition	Digital TCI
Front Suspension	Telescopic fork
Front Brake	Double disc, Ø 298 mm
Rear Brake	Single disc, Ø 245 mm
Ground Clearance	140 mm
Valves	20 valves
