CYLINDER HEAD
ENG
NOTE:
20 Nm (2.0 mkg)
50 Nm (5.0 mkg)
NOTE:
NOTE:
EAS00233

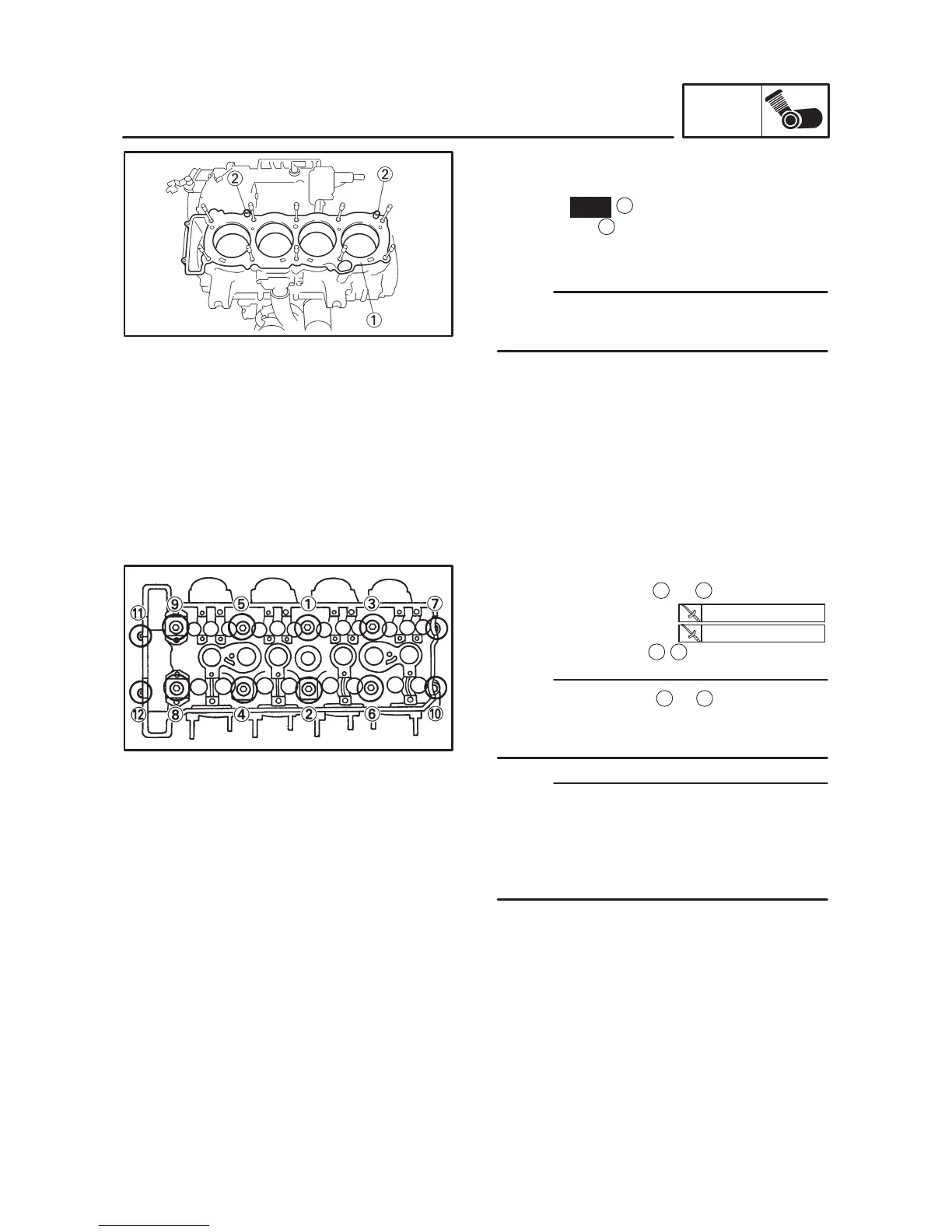

INSTALLING THE CYLINDER HEAD
1. Install:
 gasket
New
1
 dowel pins
2
2. Install:
 cylinder head
Pass the timing chain through the timing chain
cavity.
3. Tighten:
 cylinder head nuts
1
X
10
1st
2nd
 cylinder head bolt
11 12
 First, tighten the nuts
1
X
10
to approximate-
ly 20 Nm (2.0 mkg) with a torque wrench.
 Retighten the nuts to 50 Nm (5.0 mkg).
 Apply engine oil onto the threads of the cylin-
der head nuts.
 Tighten the cylinder head nuts in the proper
tightening sequence as shown and torque
them in two stages.
4. Install:
 exhaust camshaft
 intake camshaft
Refer to “INSTALLING THE CAMSHAFTS”.
