Yamaha FZS1000(N) 2001 User Manual

3-27

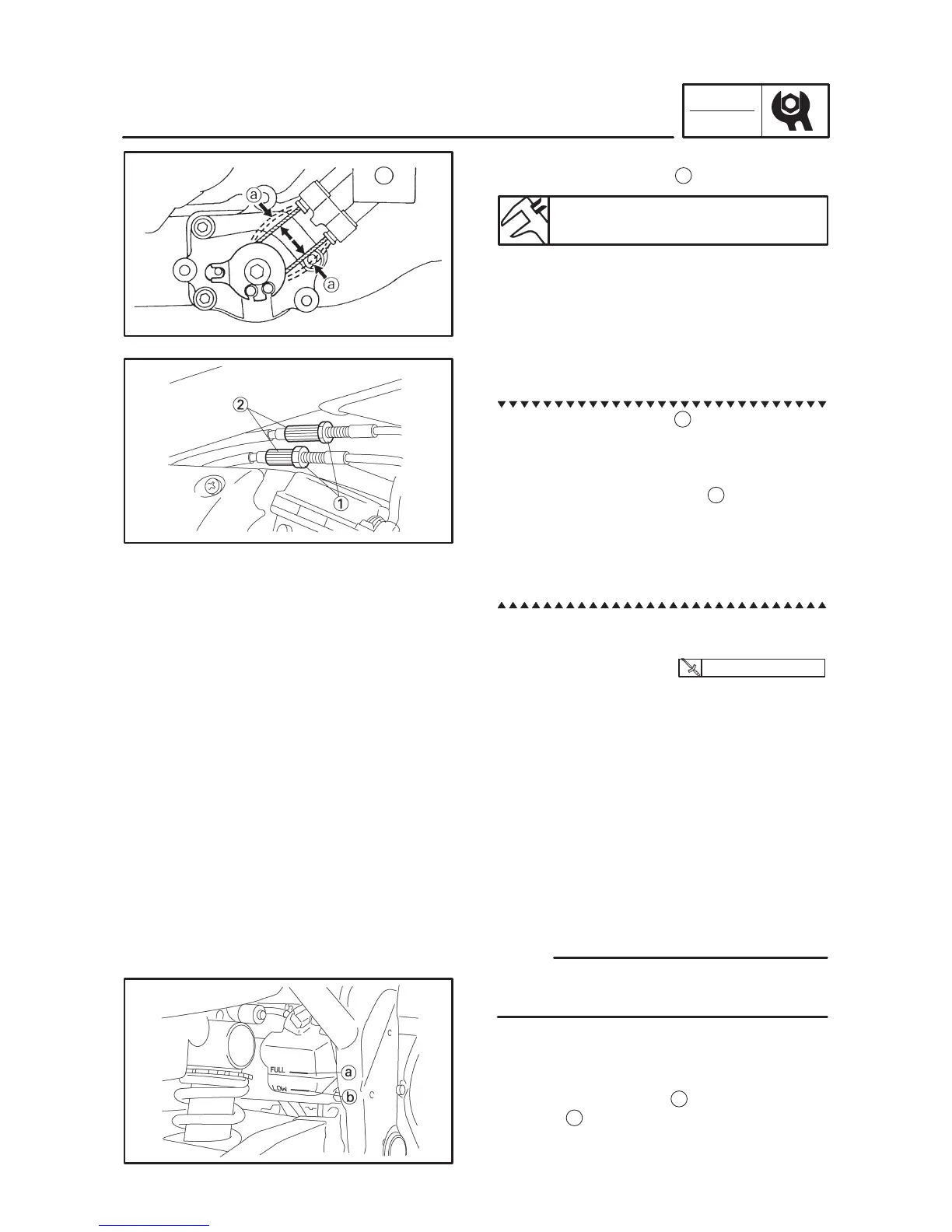

ADJUSTING THE EXUP CABLES/
CHECKING THE COOLANT LEVEL
CHK
ADJ
10 Nm (1.0 mkg)
NOTE:
4. Check:
 EXUP cable free play
a
EXUP cable free play
1.5 mm max.
5. Adjust:
 EXUP cable free play
a. Loosen both locknuts
1
.
b. Insert a 4 mm long pin through the notch in
the EXUP valve pulley and into the hole in the
EXUP valve cover.
c. Turn both adjusting bolts
2
counterclock-
wise until there is no EXUP cable free play.
d. Turn both adjusting bolts 1/2 of a turn clock-
wise.
e. Tighten both locknuts and then remove the
pin.
6. Install:
 EXUP valve pulley cover
7. Install:
 fuel tank
 seat
EAS00102
CHECKING THE COOLANT LEVEL
1. Stand the motorcycle on a level surface.
 Place the motorcycle on a suitable stand.
 Make sure that the motorcycle is upright.
2. Check:
 coolant level
The coolant level should be between the
maximum level mark
a
and minimum level
marks
b
.
Below the minimum level mark  Add the
recommended coolant to the proper level.
