CAMSHAFT
ENG
NOTE:
NOTE:
EAS00198

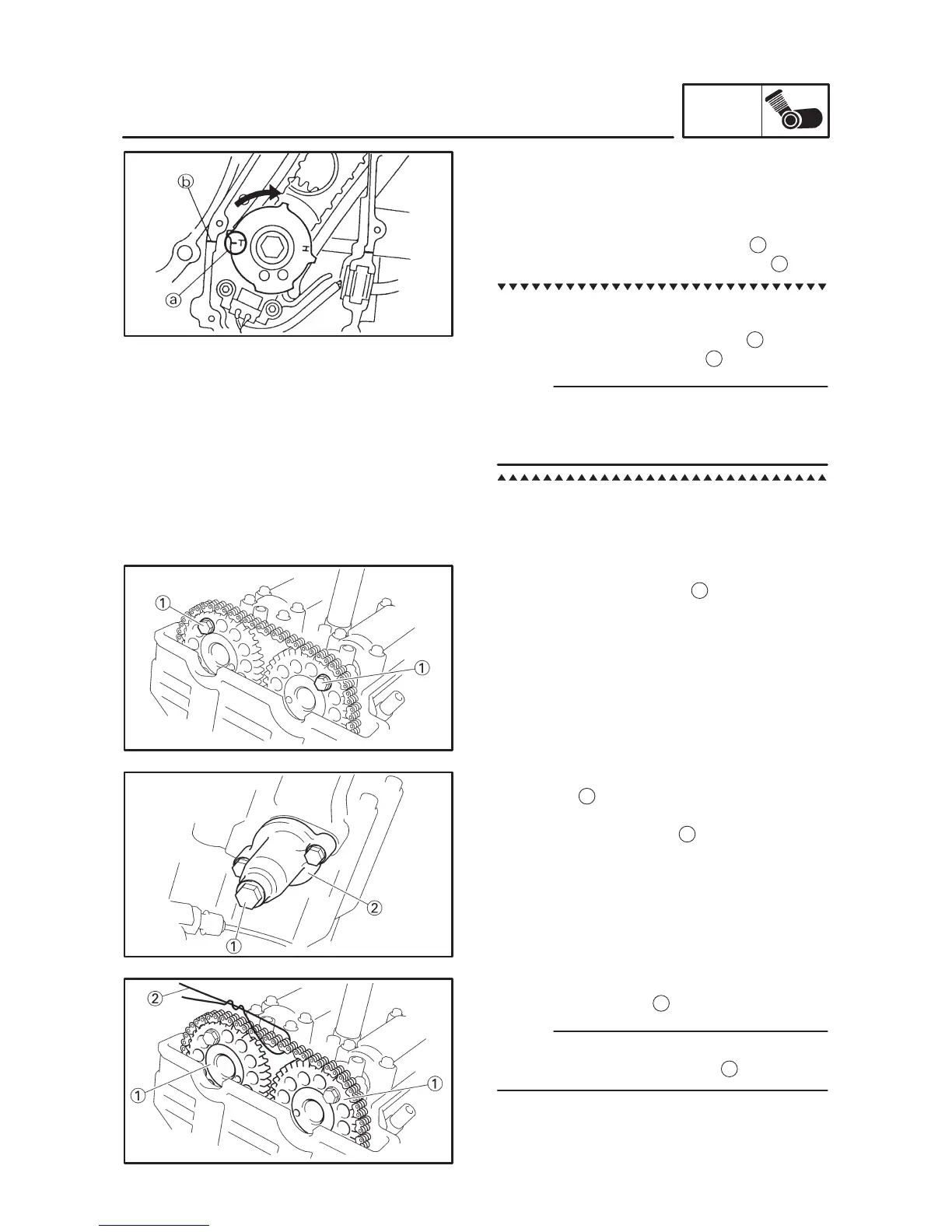

REMOVING THE CAMSHAFTS
1. Remove:
 pickup rotor coil cover
2. Align:
 “T” mark on the pickup coil rotor
a
(with the crankcase mating surface
b
)
a. Turn the crankshaft clockwise.
b. When piston #1 is at TDC on the compres-
sion stroke, align the “T” mark
a
with the
crankcase mating surface
b
.
TDC on the compression stroke can be found
when the camshaft lobes are turned away from
each other.
3. Loosen:
 camshaft sprocket bolts
1
4. Loosen:
 cap bolt
1
5. Remove:
 timing chain tensioner
2
 gasket
6. Remove:
 camshaft sprocket
1
To prevent the timing chain from falling into the
crankcase, fasten it with a wire
2
.
