Engine oil
Engine oil level measurement
1. Remove panel F. (See page 8-11 for
panel removal and installation proce-
dures.)
2. Place the ATV on a level surface and
warm up the engine for several minutes.
3. Stop the engine.
4. Remove the engine oil filler cap and wipe
off the dipstick with a clean rag.
5. Insert the dipstick in the filler hole without
screwing it in.

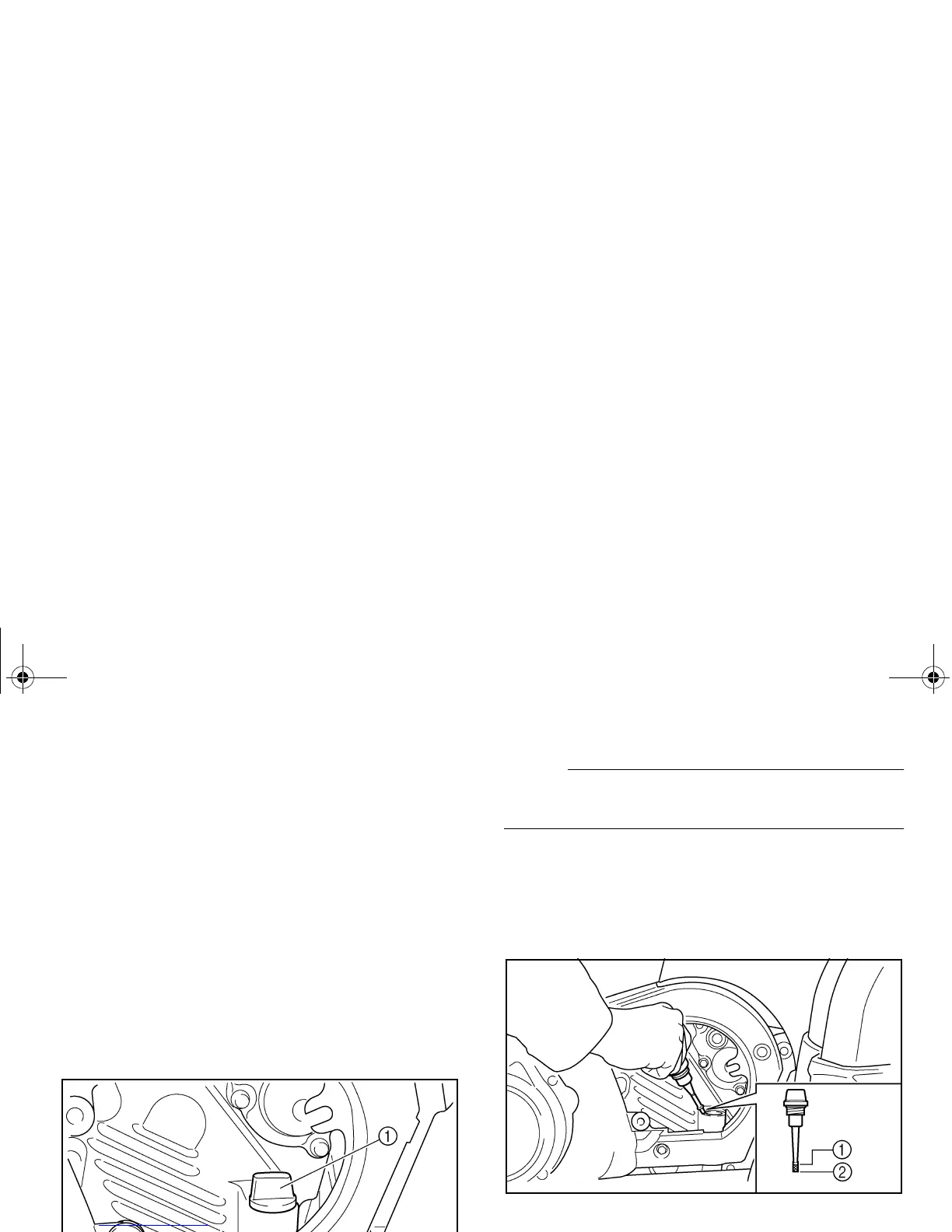

1. Engine oil filler cap
NOTE:
_
Wait a few minutes until the oil level settles
before checking.
_
6. The oil level should be between the max-
imum and minimum marks. If the level is
low, fill the engine with sufficient oil to
reach the specified level.
1. Maximum level mark 2. Minimum level mark
