Rear brake pedal and lever adjustment
Brake pedal free play adjustment

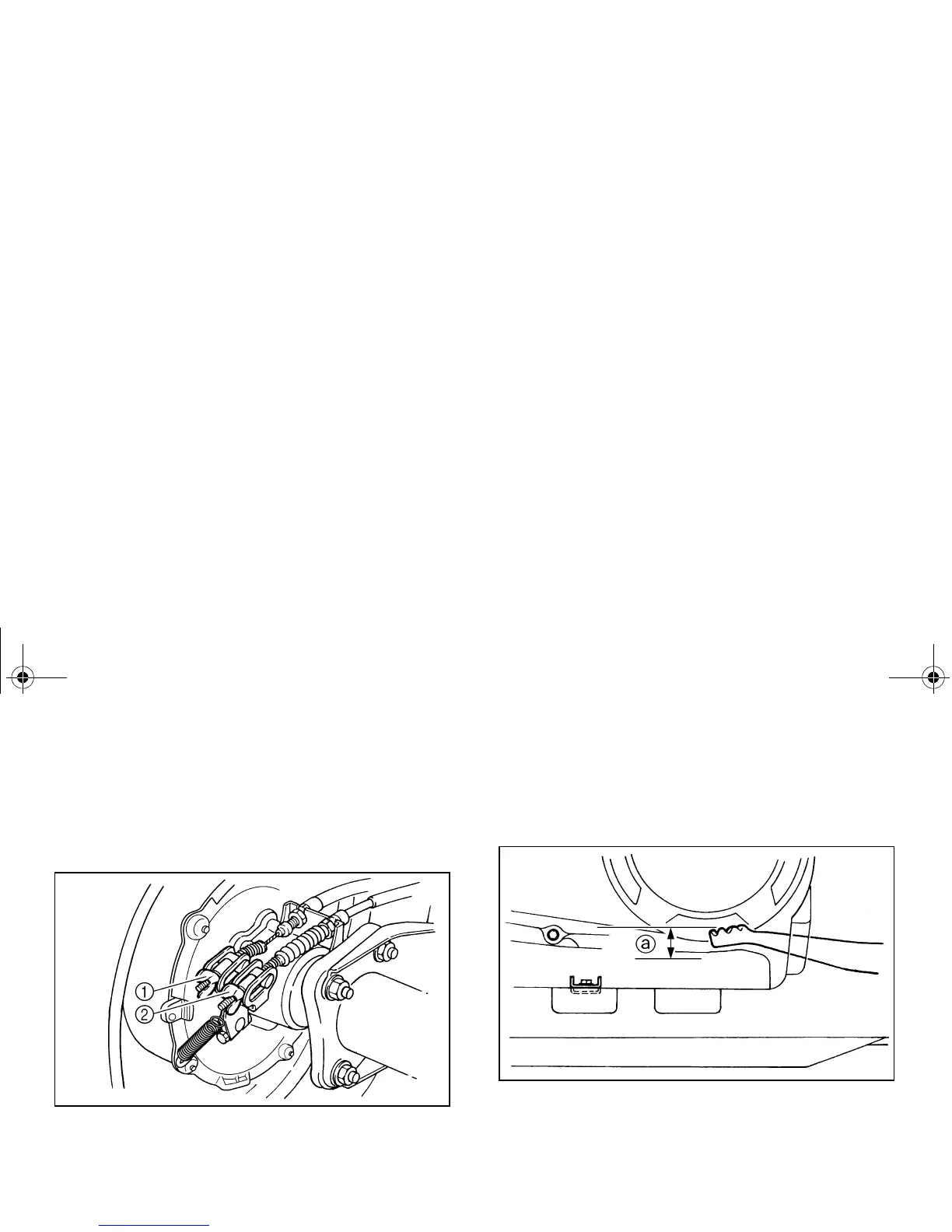

1. Fully loosen the adjusting nut on the
brake lever cable at the rear wheel.
1. Adjusting nut (brake pedal cable)
2. Adjusting nut (brake lever cable)
2. Turn the adjusting nut on the brake pedal
cable until the free play is 20–30 mm
(0.8–1.18 in).
a. Brake pedal free play
