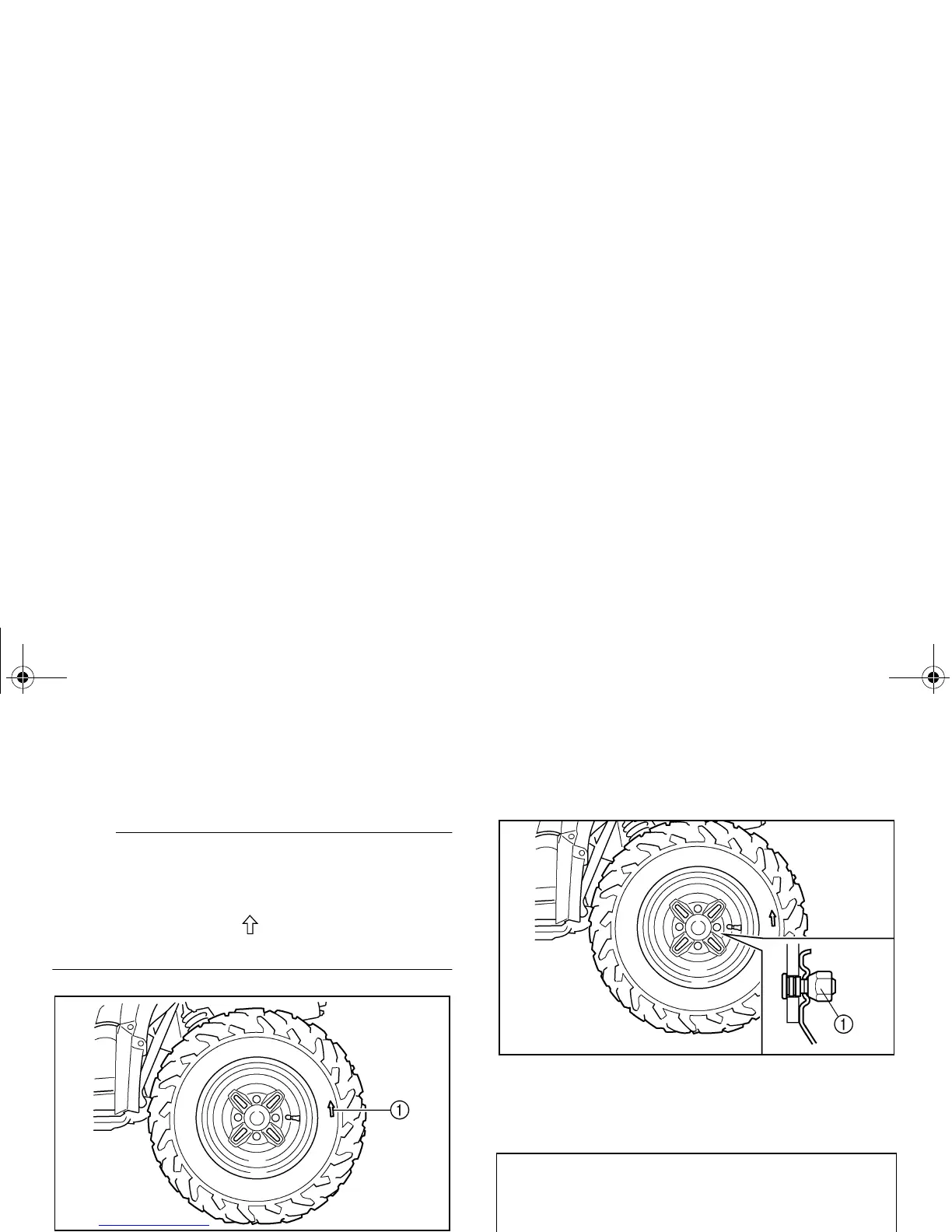

Wheel installation
1. Install the wheel and the nuts.
NOTE:
_
●
Tapered nuts are used for both the front
and rear wheels. Install the nut with its ta-
pered side towards the wheel.
●
The arrow mark on the tire must point
toward the rotating direction of the wheel.
_
1. Arrow mark
2. Lower the ATV so that the wheel is on the
ground.
1. Tapered nut (× 4)
3. Tighten the wheel nuts to the specified
torque.
Wheel nut torque:
Front: 55 Nm (5.5 m·kgf, 40 ft·lbf)
Rear: 55 Nm (5.5 m·kgf, 40 ft·lbf)
