Final gear oil
Final gear oil measurement
1. Place the machine on a level surface.
2. Remove the oil filler bolt, and then check
the oil level in the final gear case.
NOTE:
_
The oil level should be at the brim of the filler
hole.
_

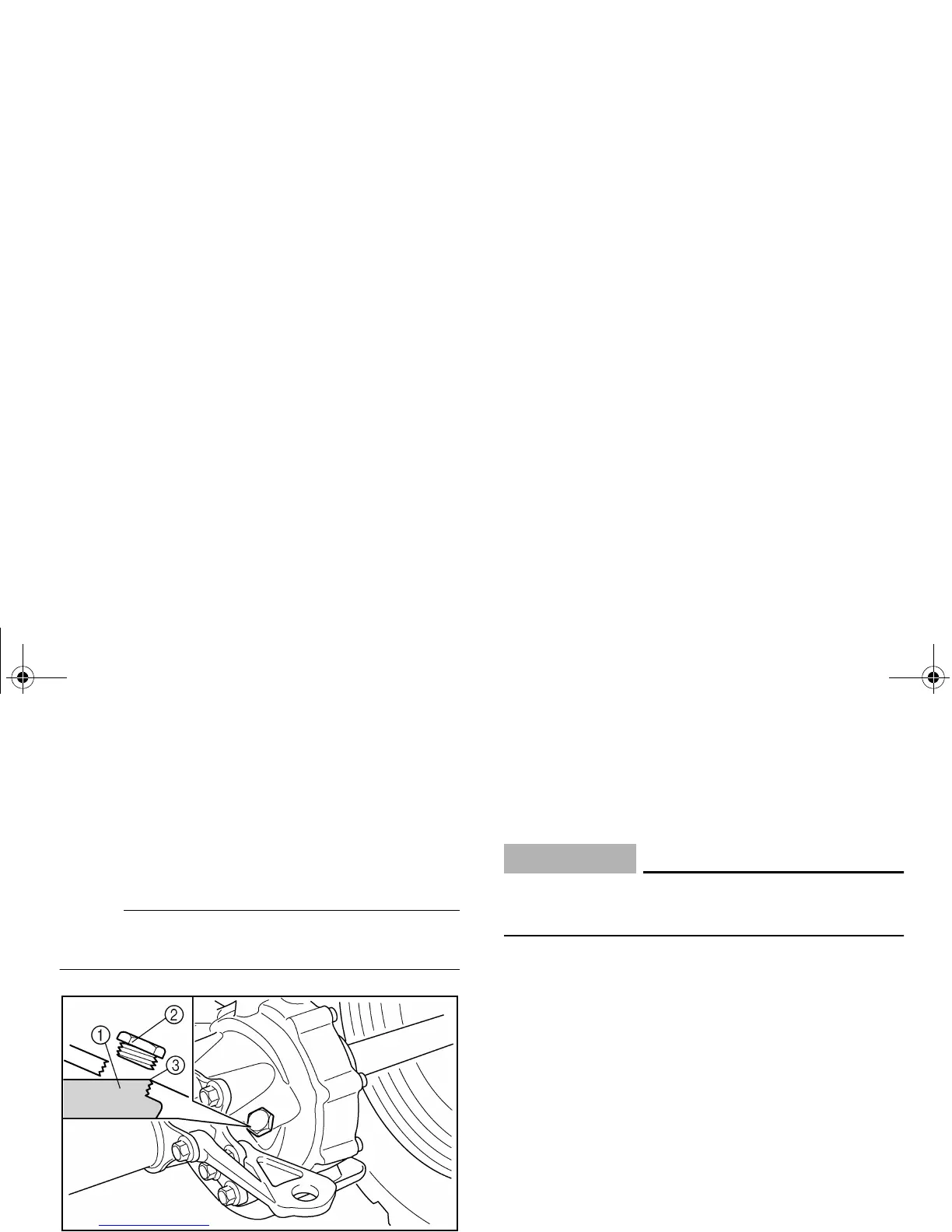

1. Final gear oil
2. Final gear case oil filler bolt
3. Proper oil level
3. If the oil is below the brim of the filler hole,
add sufficient oil of the recommended
type to raise it to the correct level.
CAUTION:
_
Be sure no foreign material enters the final
gear case.
_
4. Install the oil filler bolt.
