5-12

EBU00160

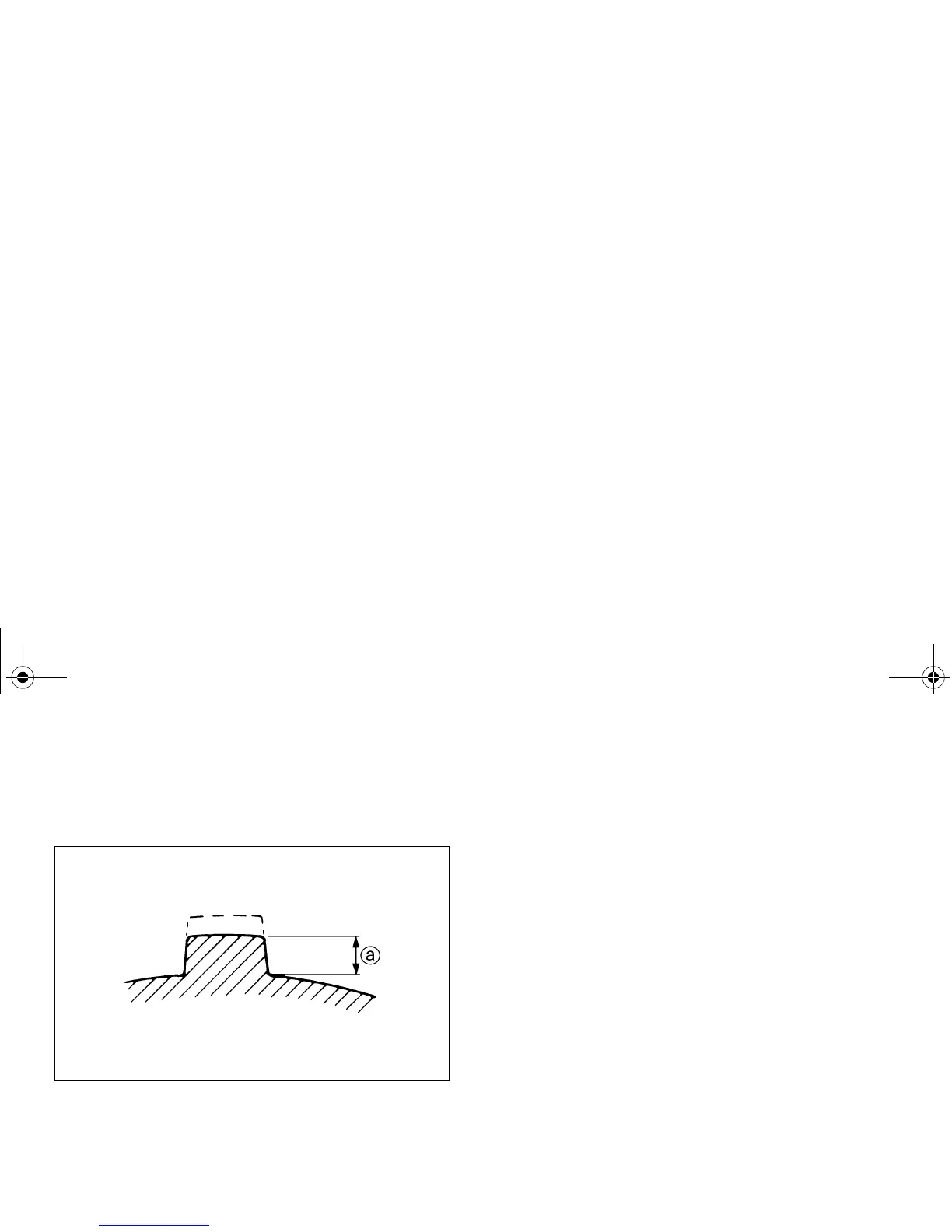

Tire wear limit

When the tire groove decreases to 3 mm

(0.12 in) due to wear, replace the tire.

a. 3 mm (0.12 in)

U5VH10.book Page 12 Thursday, May 16, 2002 2:18 PM
