Yamaha KODIAK Ultramatic - DESCRIPTION AND MACHINE IDENTIFICATION; MAJOR COMPONENT LOCATIONS

3-1
EBU00032
1-

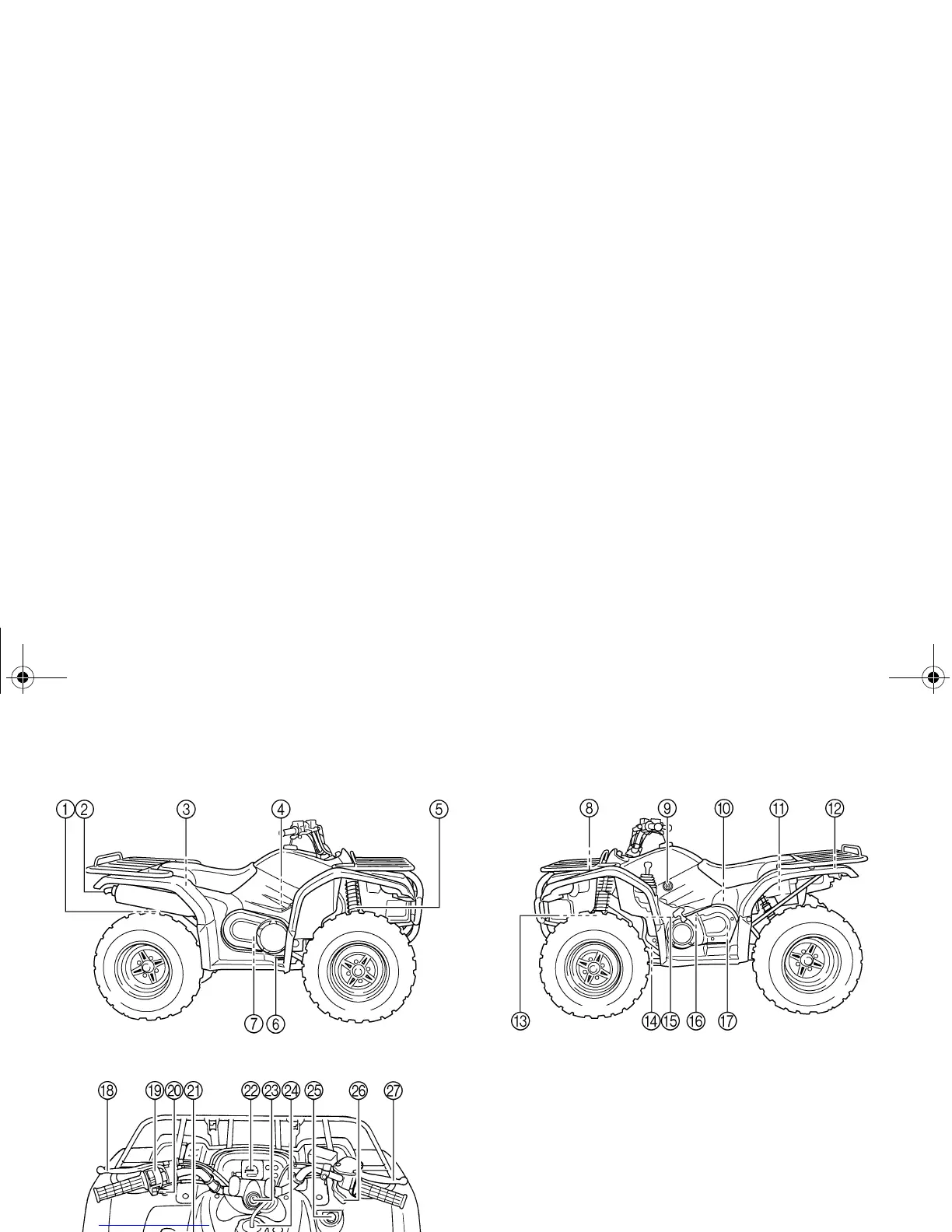

DESCRIPTION AND MACHINE IDENTIFICATION
1. Rear shock absorber assembly
spring preload adjusting ring
2. Spark arrester
3. Storage box and tool kit
4. Spark plug
5. Front shock absorber assembly
spring preload adjusting ring
6. Brake pedal
7. V-belt case
8. Radiator cap
9. Fuel cock
10. Air filter case
11. Fuses
12. Tail/brake light
13. Front shock absorber assembly
spring preload adjusting ring
14. V-belt cooling duct check hose
15. Coolant reservoir
16. Oil filter cartridge
17. Engine oil dipstick
18. Rear brake lever
19. Left handlebar switches
20. Starter (choke)
21. Drive select lever
22. Speedometer
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Throttle lever
27. Front brake lever
N
O
TE:
The machine you have purchased may differ slightly
from those shown in the figures of this manual.
