8-27
EBU01133
Air filter element cleaning
NOTE:
_
There is a check hose at the bottom of the air
filter case. If dust or water collects in this
hose, empty the hose and clean the air filter
element and air filter case.
_

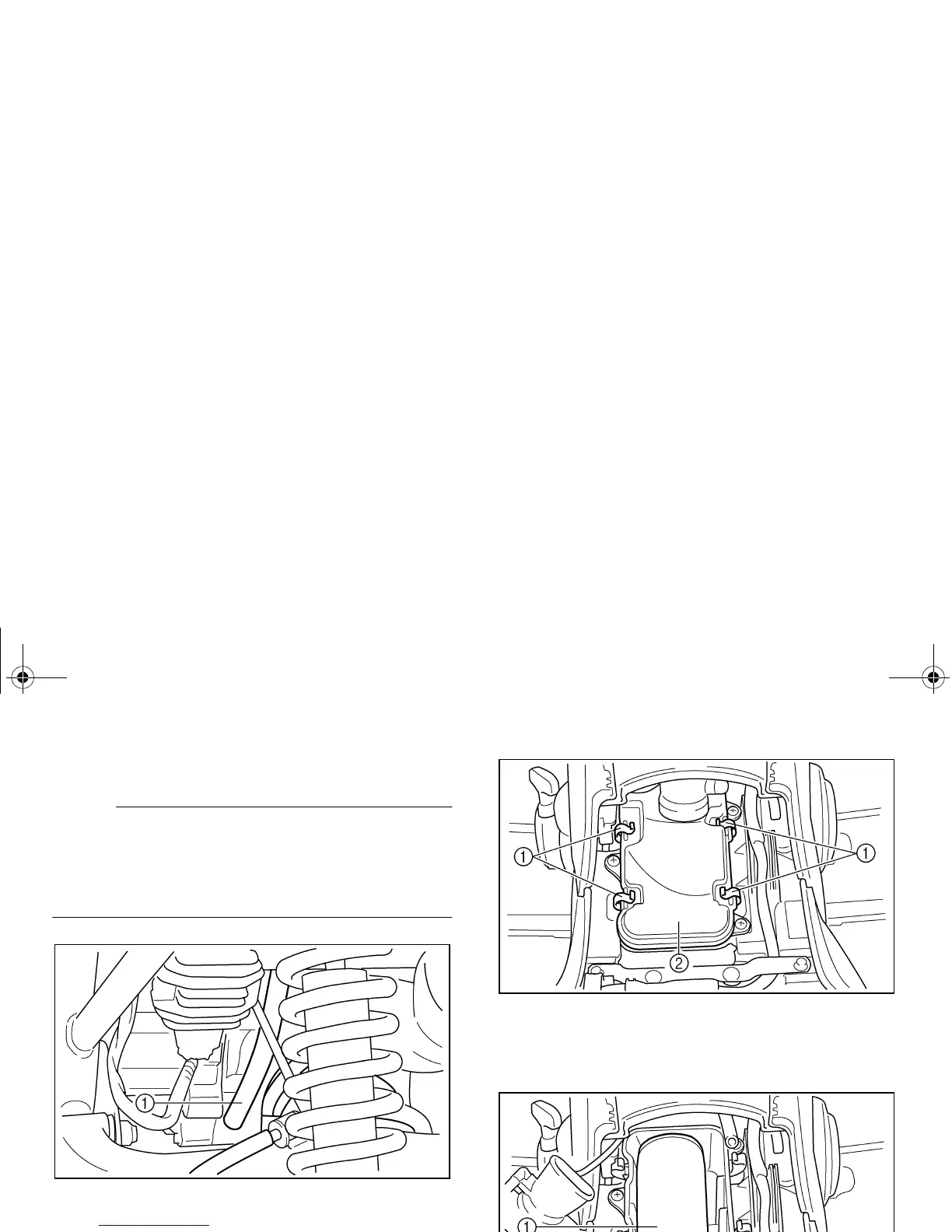

1. Air filter case check hose
1. Remove the seat. (See page 4-14 for
seat removal and installation proce-
dures.)
2. Remove the air filter case cover by un-
hooking the holders.
1. Holder (× 4) 2. Air filter case cover
3. Remove the air filter element, and then
remove it from its frame.
1. Air filter element
