3-32
PERIODIC MAINTENANCE

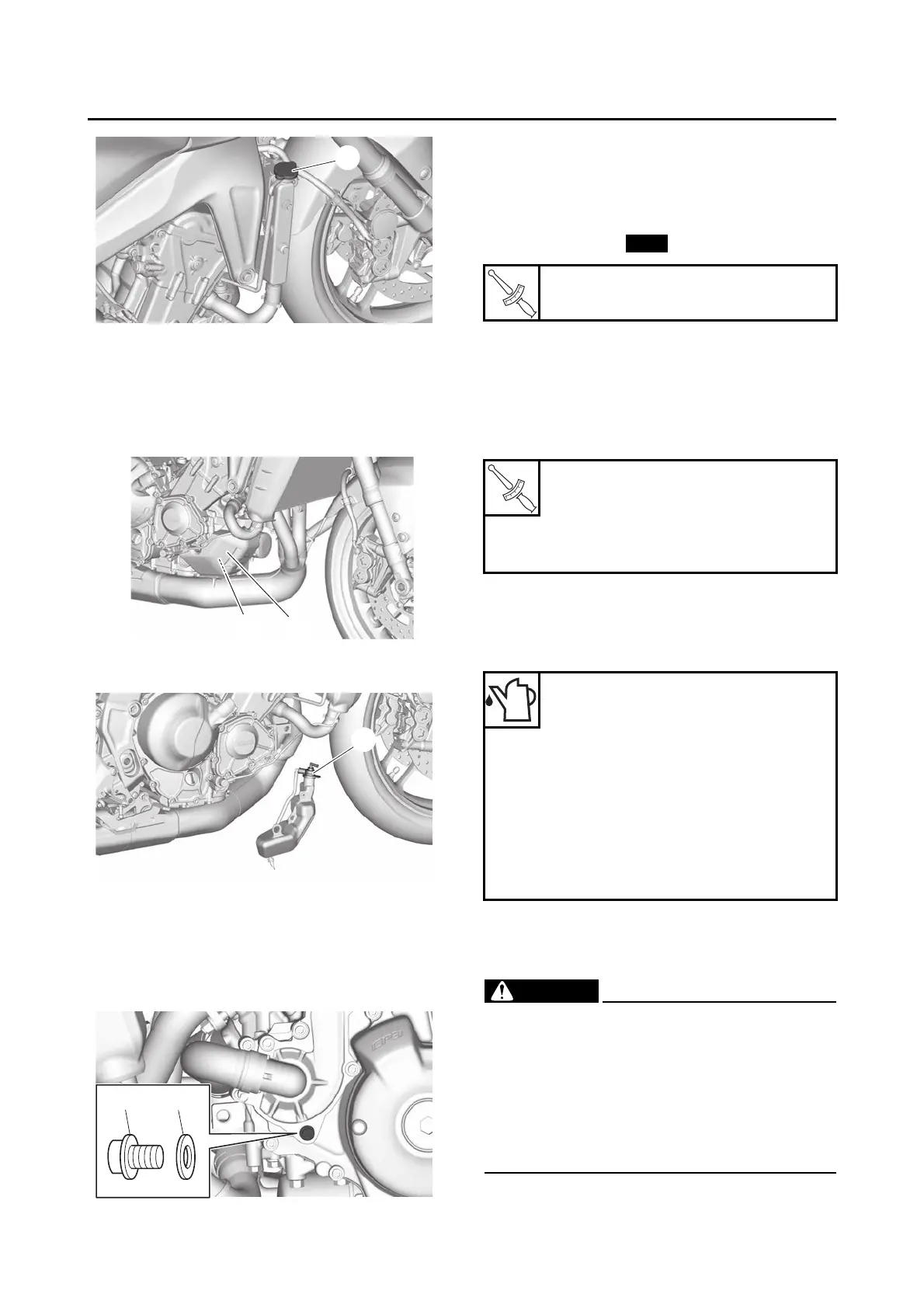

2. Remove:
• Coolant reservoir bolt
• Coolant reservoir cover “1”
• Coolant reservoir “2”
• Collar
Refer to “RADIATOR” on page 6-3.
3. Remove:
• Coolant reservoir cap “1”
4. Drain:
• Coolant
(from the coolant reservoir)
5. Remove:
• Water pump drain bolt “1”
• Copper washer “2”
6. Drain:
• Coolant
(from the engine and radiator)
7. Install:
• Water pump drain bolt
• Copper washer
8. Install:
• Collar
• Coolant reservoir
• Coolant reservoir cover
• Coolant reservoir bolt
Refer to “RADIATOR” on page 6-3.
9. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Handling notes for coolant
Coolant is potentially harmful and should be
handled with special care.
WARNING
EWA13040
• If coolant splashes in your eyes, thorough-
ly wash them with water and consult a doc-
tor.
• If coolant splashes on your clothes, quickly
wash it away with water and then with soap
and water.
• If coolant is swallowed, induce vomiting
and get immediate medical attention.
Water pump drain bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Coolant reservoir bolt (M5)
0.5 N·m (0.05 kgf·m, 0.37 lb·ft)
Coolant reservoir bolt (M6)
9 N·m (0.9 kgf·m, 6.6 lb·ft)
LOCTITE®
Recommended antifreeze
High-quality ethylene glycol anti-
freeze containing corrosion
inhibitors for aluminum engines
Mixing ratio
1:1 (antifreeze:water)
Radiator (including all routes)
1.72 L (1.82 US qt, 1.51 Imp.qt)
Coolant reservoir (up to the max-
imum level mark)
0.28 L (0.30 US qt, 0.25 Imp.qt)
To Next Page
