REAR BRAKE

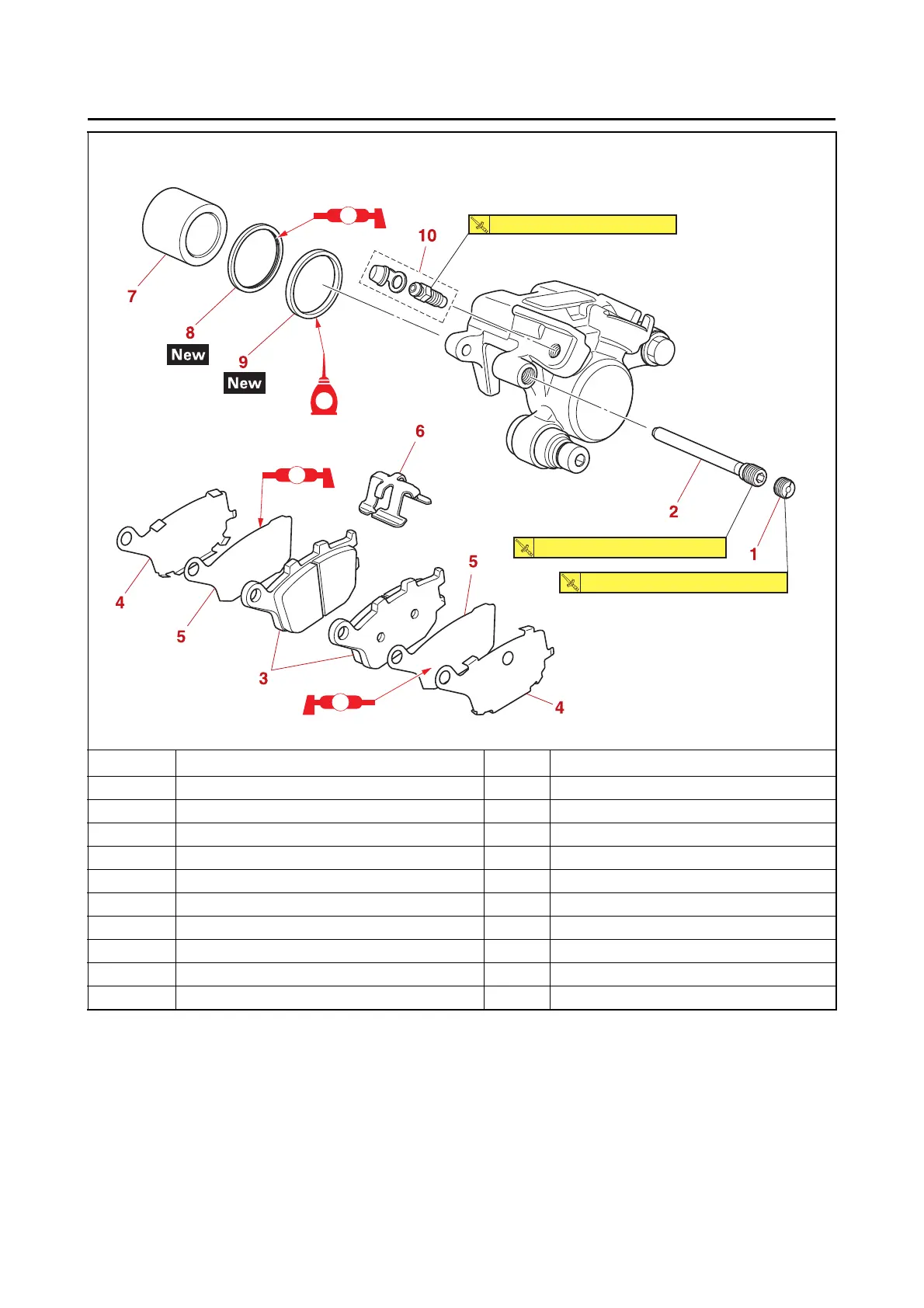

Disassembling the rear brake caliper
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad retaining bolt 1
3 Brake pad 2
4 Brake pad shim 2
5 Brake pad insulator 2
6 Brake pad spring 1
7 Brake caliper piston 1
8 Brake caliper piston dust seal 1
9 Brake caliper piston seal 1
10 Bleed screw 1
S
S
S
BF
2.5 N・m (0.25 kgf・m, 1.8 lb・ft)
5 N・m (0.5 kgf・m, 3.7 lb・ft)
17 N・m (1.7 kgf・m, 13 lb・ft)
