Yamaha RX-E600 - Controls and Indicators; Front Panel Overview

English
7
Display
7 MEMORY indicator (P.11)
8 RDS indicator (P.12)
9 RDS mode indicators (P.12)
0 PTY HOLD indicator (P.13)
q TIMER indicator (P.15)
w SLEEP indicator (P.16)
1 STANDBY/ON (P.9)
2 TIMER indicator (P.15)
3 DISPLAY (P.15)
4 MEMORY/TIME ADJ (P.6/P.11)
5 AUTO/MAN’L/TIMER (P.10/P.15)
6 PRESET/BAND (P.10)
7 Display (P.7)
8 PRESET/TUNING / (P.10)
HOUR/MIN (P.6/P.15)
1 Multi-information display
2 EDIT indicator
3 PRESET indicator (P.11)
4 STEREO indicator (P.10)
5 TUNED indicator (P.10)
6 AUTO indicator (P.10)
NAMES OF BUTTONS AND CONTROLS
9 VOLUME (P.9)
0 PHONES (P.9)
q Remote control sensor (P.3)
w BASS (P.9)
e TREBLE (P.9)
r BALANCE (P.9)
t INPUT (P.9)
Front panel
BALANCE
INPUT
VOLUME
L
R
TREBLEBASS
PHONES
STANDBY/ON
TIMER
DISPLAY MEMORY

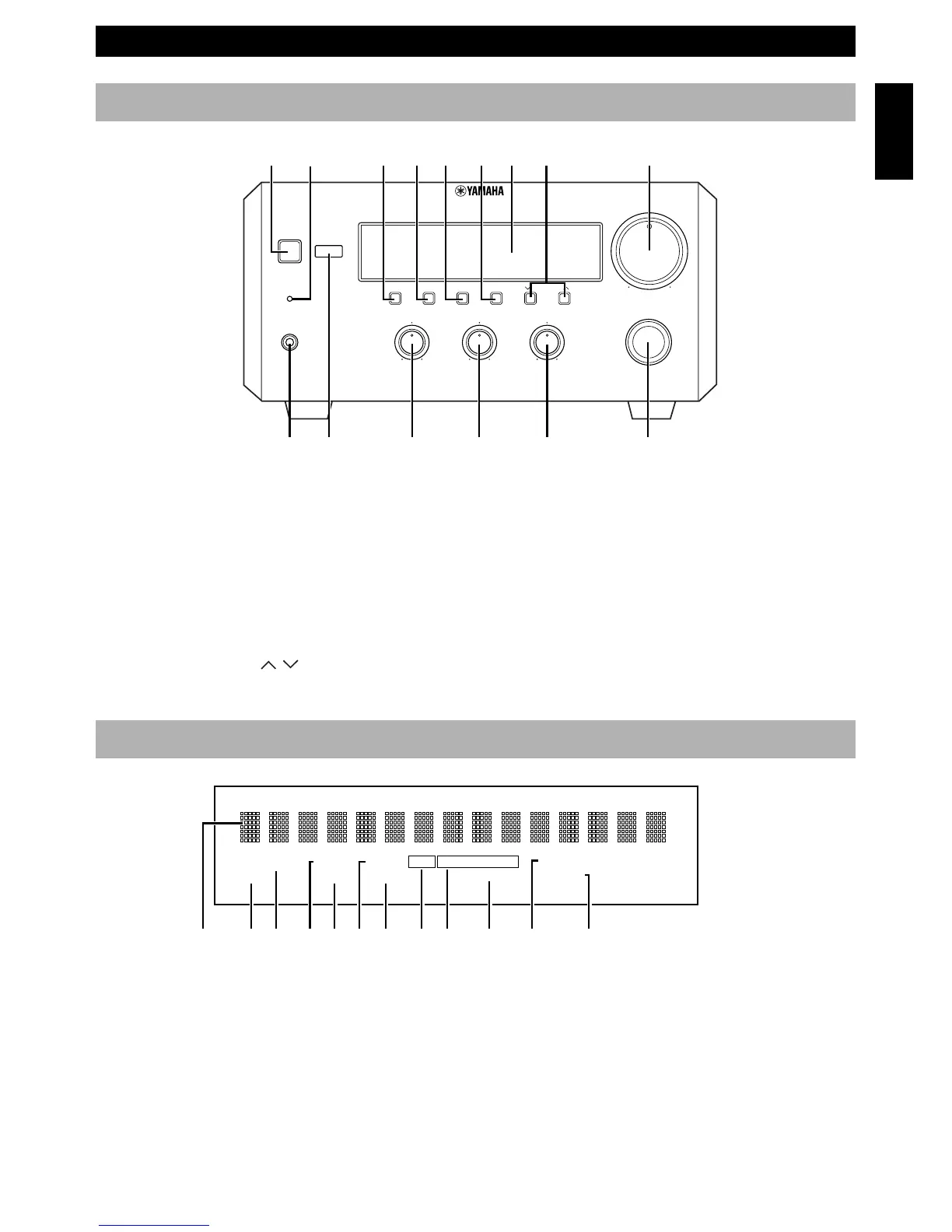

NATURAL SOUND STEREO RECEIVER RX–E600
AUTO/MAN'L PRESET/BAND
TIMER HOUR MIN
MIN MAX
PRESET/TUNING
TIMER ADJ
+– +–
12 345678 9
0 q wer t
EDIT
TIMER
SLEEP
STEREO AUTO RDS PS RT CTPTY
MEMORY
TUNED PTY HOLD
PRESET
1345267890qw
