Yamaha TSX-130 Service Manual

4
TSX-130/TSX-120
TSX-130/TSX-120
The primary side of the power supply carries live mains voltage when the player is connected to the mains even
when the player is switched off !
This primary area is not shielded so it is possible to accidentally touch copper tracks and/or components when servicing
the player.
Service personnel have to take precautions to prevent touching this area or components in this area.
Note:
The screws on the DVD mechanism may never be touched, removed or re-adjusted.
Handle the DVD mechanism with care when the unit has to be exchanged!
The DVD mechanism is very sensitive for dropping or giving shocks.
Warning for power supply

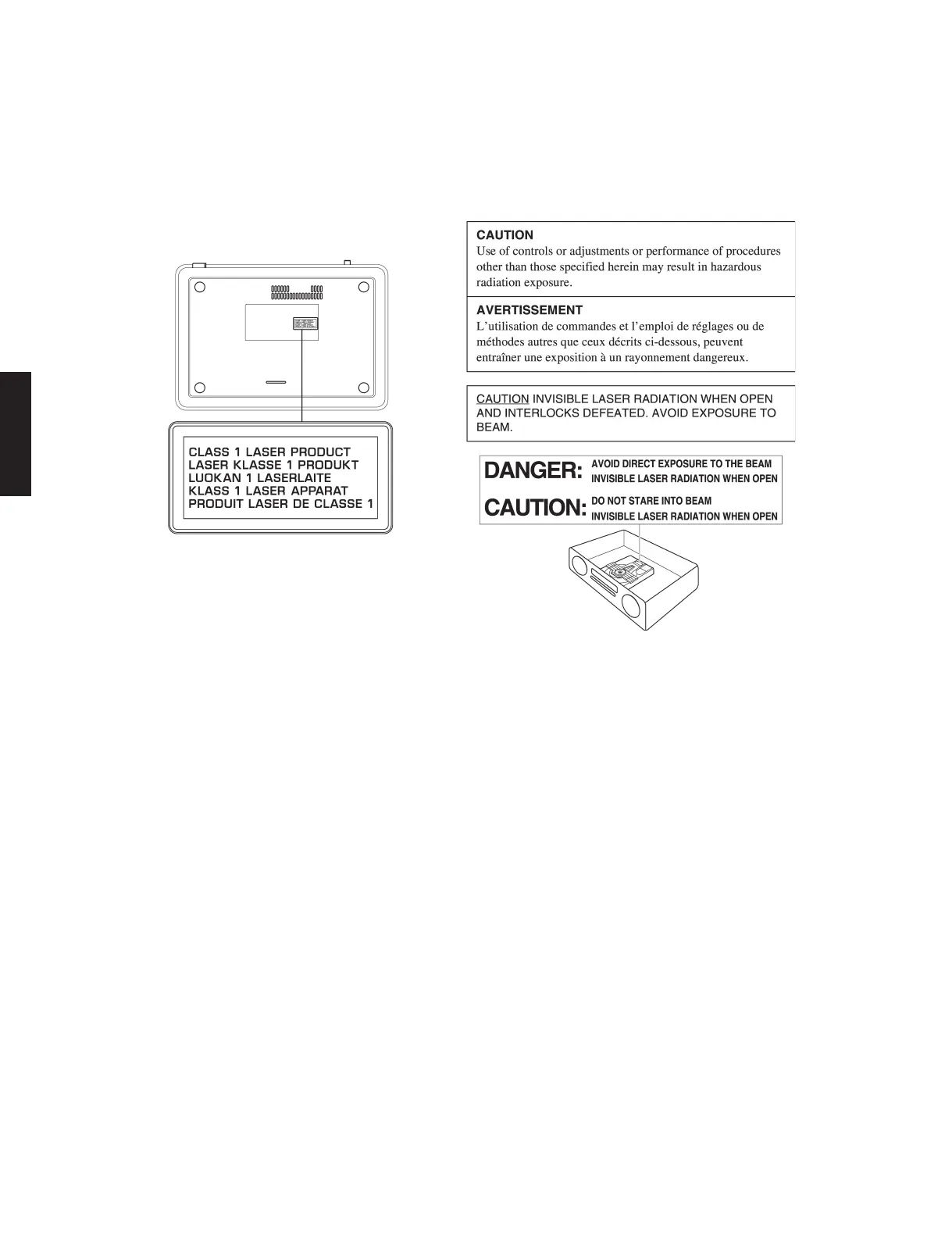

Type: Semiconductor laser GaAS/GaAlAs
Wave length: 780 nm
Output Power: 10 mW
Beam divergence: 60 degrees
Laser Diode Properties

Yamaha TSX-130 Specifications

General

Impedance	6 Ω
RMS rated power	30 W
Supported radio bands	FM
Preset stations quantity	30
Type	Home audio mini system
Product color	Black
Optical disc player	Yes
Number of optical discs	1 discs
Dimensions (WxDxH)	350 x 120 x 240 mm
Media types supported	MP3, WMA
Disc types supported	CD, CD-R, CD-RW
USB 2.0 ports quantity	1

Weight and Dimensions

Weight	4000 g
