Yamaha TSX-20 User Manual

9
English
GETTING STARTED

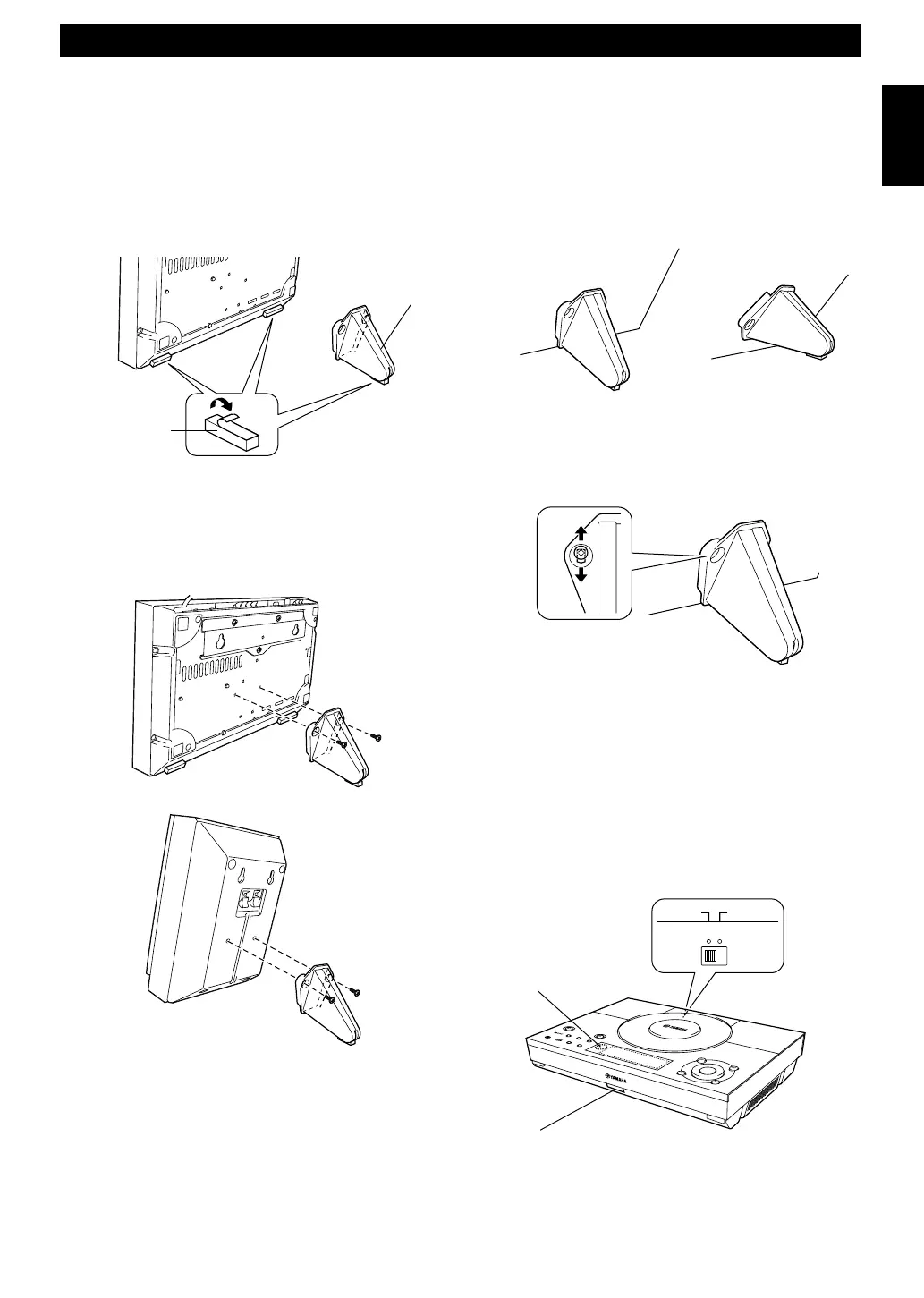

■ Standing the main unit and/or speakers on a surface
You can stand the main unit and/or the speakers on a hard surface at an angle of 45 degrees or 70 degrees using the
supplied stands.
1 Peel off the seals of the non-slip pads and apply them
to the bottom of the main unit and the stands.
2 Attach the stand to the main unit and/or the speakers
with the screws.
*The standing angle can be selected as 45 or 70
degrees by attaching the stands upside-down.
3 Fine adjustment can be made by sliding the position
of a screw within a rectangular hole so that you can
align the main unit and the speakers.
Note
Change the setting of the remote control sensor switch so that the
main unit can receive the remote control signal properly;
● When the switch is set to the HRIZ position, the sensor A is
active.
● When the switch is set to the OTHER position, the sensor B
is active.
HRIZ OTHER
Main unit
Non-slip pad
Stand
Main unit
Speaker
70 degrees
45 degrees
A
B
Remote control sensor switch
04/TSX-10E(6.12)e 01.6.12, 4:17 PM9

Yamaha TSX-20 Specifications

Amplifier Section

minimum RMS output power per channel	18 W +18 W (4Ω 1kHz 10% THD)
input sensitivity/impedance AUX	250 mV/47 kΩ
total harmonic distortion (20 Hz to 20 kHz)	12.5 W, 6 Ω

Tuner Section

tuning range FM (U.S.A. and Canada models)	87.5 – 107.9 MHz
tuning range FM (U.K., Europe, Australia and China models)	87.50 – 108.00 MHz
tuning range AM (U.S.A., Canada and China models)	530 – 1710 kHz

CD Player Section

D/A converter	S-bit DAC
laser diode material	GaAIAs
laser diode wavelength	780 nm

Speaker Section

type	2-way bass-reflex speaker system
driver	10 cm cone woofer, 2 cm dome tweeter
maximum input power	20 Ω

General

power supply (U.S.A. and Canada models)	AC 120 V, 60 Hz
power consumption	35 W
dimensions (W x H x D) CRX-TS10/20	297 x 80 x 214 mm
