Setting the clock
You must set the clock before you use the timer functions.
The clock is based on the 12-hour system for U.S.A. and
Canada models, and the 24-hour system for Europe, U.K.,
Australia and China models.
1 While the power is on, press DISPLAY to display
the time.
2 While holding TIME ADJ, press HOUR + to set the
hour.
• If you want to move the time in the reverse
direction, press HOUR – while holding TIME
ADJ.
3 While holding TIME ADJ, press MIN + to set the
minutes.
• If you want to move the time in the reverse
direction, press MIN – while holding TIME ADJ.
To display the clock
Press DISPLAY.
First “Clock Time” appears and then the current time is
displayed for about 8 seconds. Then the normal display
returns.
Note
• In the event of a power failure or when the AC power cord is
disconnected for more than five minutes, “Set Clock” may
appear on the display instead of the current time. In that case,
you need to reset the clock.
Adjusting the brightness
of the display
You can adjust the brightness of the display not only
when the unit is turned on but also in the standby mode.
The adjustment can be made individually.
Press and hold DISPLAY for about two seconds so that
“Dimmer ±0” appears on the display. While holding
DISPLAY, turn VOLUME clockwise to increase or
counterclockwise to decrease brightness.
Control Range: ±0 to –6 (Preset value: ±0)
Note
• During the standby mode, the display is not as bright as the
one when the unit is on. You can further decrease the
brightness in the standby mode so that the light does not
disturb in a dark ambience.

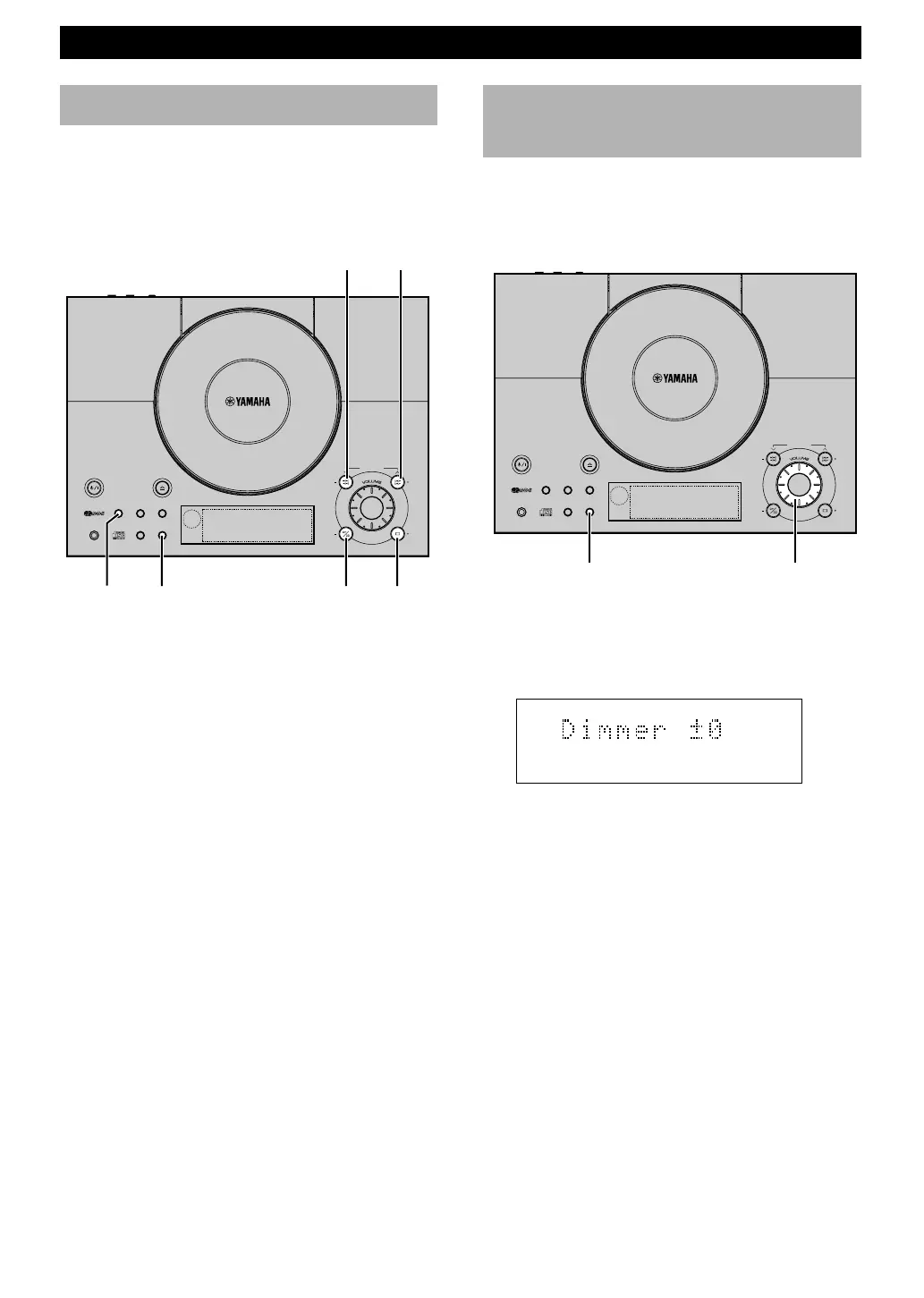

VOLUMEDISPLAY
HOUR +
DISPLAYTIME ADJ
MIN +
GETTING STARTED
TONEPROG TOTAL REPRDS AUTO STEREO PRESET PSPTYRTCT
B. BOOST RANDOMS F PTY HOLD TUNED MEMORYSLEEPTIMER
NATURAL SOUND CD RECEIVER
STANDBY/ON OPEN/CLOSE
MEMORY
AUTO/MAN´L
TIMER
SLEEP
PRESET/TUNING
INPUT
SNOOZE
A/B/C/D/E
HOUR
MIN MIN
HOUR
PHONES
DISPLAY
TIME ADJ
PRESET/BAMD
TONEPROG TOTAL REPRDS AUTO STEREO PRESET PSPTYRTCT
B. BOOST RANDOMS F PTY HOLD TUNED MEMORYSLEEPTIMER
NATURAL SOUND CD RECEIVER
STANDBY/ON OPEN/CLOSE
MEMORY
AUTO/MAN´L
TIMER
SLEEP
PRESET/TUNING
A/B/C/D/E
HOUR
MIN MIN
HOUR
PHONES
DISPLAY
TIME ADJ
PRESET/BAMD
INPUT
SNOOZE
HOUR –
MIN –
04/TSX-10E(6.12)e 01.6.12, 4:17 PM12

Yamaha TSX-20 Specifications

Amplifier Section

minimum RMS output power per channel	18 W +18 W (4Ω 1kHz 10% THD)
input sensitivity/impedance AUX	250 mV/47 kΩ
total harmonic distortion (20 Hz to 20 kHz)	12.5 W, 6 Ω

Tuner Section

tuning range FM (U.S.A. and Canada models)	87.5 – 107.9 MHz
tuning range FM (U.K., Europe, Australia and China models)	87.50 – 108.00 MHz
tuning range AM (U.S.A., Canada and China models)	530 – 1710 kHz

CD Player Section

D/A converter	S-bit DAC
laser diode material	GaAIAs
laser diode wavelength	780 nm

Speaker Section

type	2-way bass-reflex speaker system
driver	10 cm cone woofer, 2 cm dome tweeter
maximum input power	20 Ω

General

power supply (U.S.A. and Canada models)	AC 120 V, 60 Hz
power consumption	35 W
dimensions (W x H x D) CRX-TS10/20	297 x 80 x 214 mm
