Yamaha TSX-20 User Manual

5
English

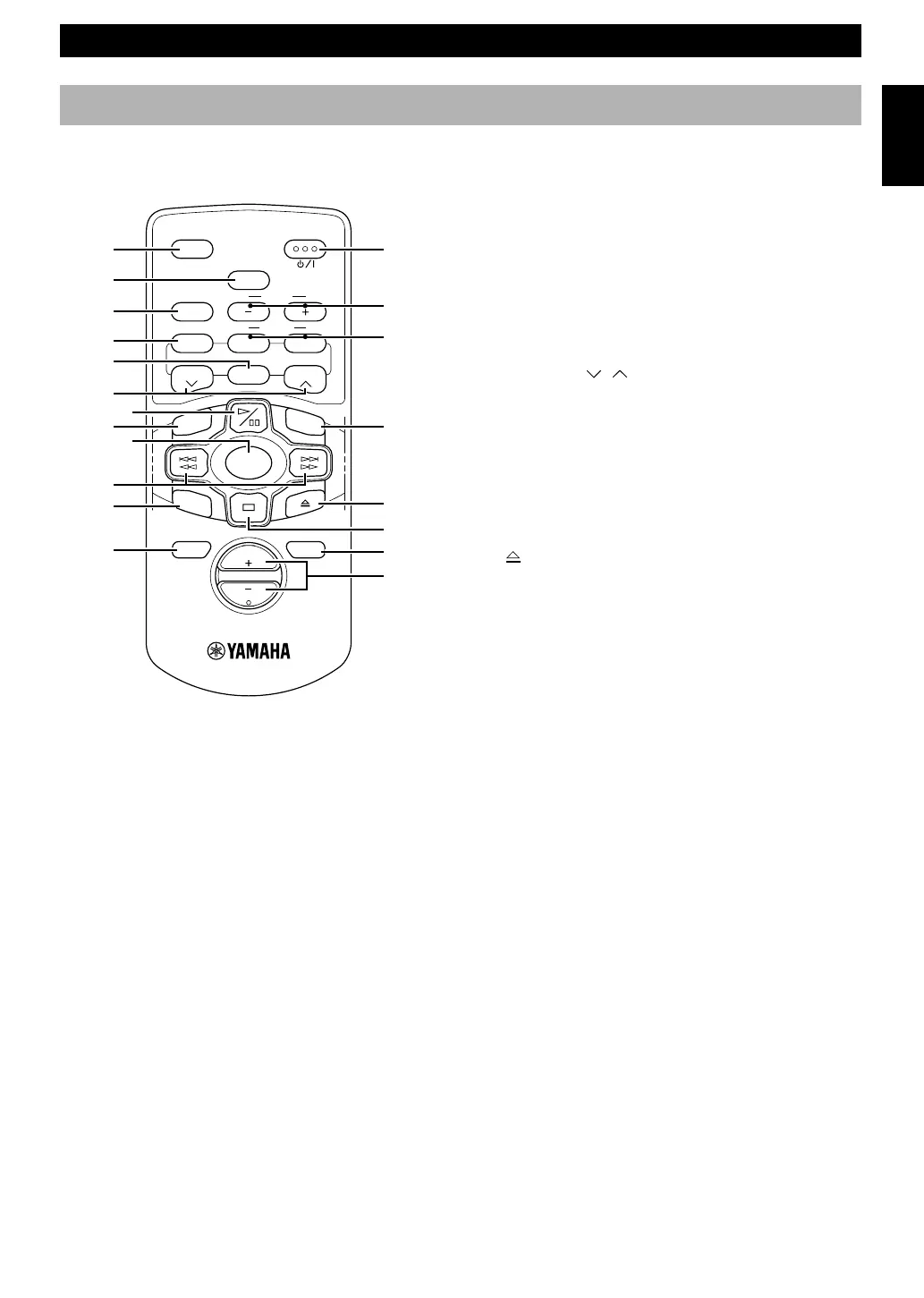

Remote control
1 STANDBY/ON (P.13)
2 SLEEP (P.23)
3 B. BOOST (Bass boost) (P.13)
4 BASS/TREBLE (P.13)
5 LEVEL +/– (P.13)
6 FREQ/RDS (P.19)
7 PTY SEEK MODE/START (P.20, 21)
8 A/B/C/D/E (P.18)
9 PRESET / (P.18)
0 ^ (Play/Pause) (P.14)
A REP (Repeat) (P.16)
B RANDOM (Random) (P.15)
C INPUT (P.13)
D $ !/⁄ › (P.14)
E TIME (P.15)
F (Open/Close) (P.14)
G & (Stop) (P.14)
H MUTE (P.13)
I DISPLAY (P.12, 22)
J VOL (Volume) +/– (P.13)
NAMES OF BUTTONS AND CONTROLS
CRX- TS10/20 RDS V776930
SLEEP
B. BOOST
LEVEL
STANDBY/ON
BASS/TREBLE
MODE
ABCDE
MUTE
VOL
DISPLAY
INPUT
REP
TIME
RANDOM
TUNER
START
FREQ/RDS
PRESET
PRESET
RTY SEEK
1
B
F
G
2
4
6
A
E
H
0
C
8
3
9
5
7
I
J
D
04/TSX-10E(6.12)e 01.6.12, 4:17 PM5

Yamaha TSX-20 Specifications

Amplifier Section

minimum RMS output power per channel	18 W +18 W (4Ω 1kHz 10% THD)
input sensitivity/impedance AUX	250 mV/47 kΩ
total harmonic distortion (20 Hz to 20 kHz)	12.5 W, 6 Ω

Tuner Section

tuning range FM (U.S.A. and Canada models)	87.5 – 107.9 MHz
tuning range FM (U.K., Europe, Australia and China models)	87.50 – 108.00 MHz
tuning range AM (U.S.A., Canada and China models)	530 – 1710 kHz

CD Player Section

D/A converter	S-bit DAC
laser diode material	GaAIAs
laser diode wavelength	780 nm

Speaker Section

type	2-way bass-reflex speaker system
driver	10 cm cone woofer, 2 cm dome tweeter
maximum input power	20 Ω

General

power supply (U.S.A. and Canada models)	AC 120 V, 60 Hz
power consumption	35 W
dimensions (W x H x D) CRX-TS10/20	297 x 80 x 214 mm
