Yamaha TSX-20 User Manual

2
INTRODUCTION ..................................... 1
FEATURES .............................................. 1
SUPPLIED ACCESSORIES ....................... 1
SETTING UP THIS SYSTEM .................... 2
PRECAUTIONS ....................................... 3
NAMES OF BUTTONS AND CONTROLS
Front panel........................................................... 4
Display................................................................. 4
Remote control .................................................... 5
GETTING STARTED
Connections ......................................................... 6
Installation ........................................................... 8
CD preventive care ............................................ 10
Remote control .................................................. 11
Setting the clock ................................................ 12
Adjusting the brightness of the display ............. 12
LISTENING TO A SOURCE .................... 13
COMPACT DISC PLAYER OPERATIONS
CD play.............................................................. 14
Selecting the time display.................................. 15
Random-sequence play...................................... 15
Repeat play ........................................................ 16
TUNER OPERATIONS
Listening to the radio......................................... 17
Presetting stations .............................................. 18
RECEIVING RDS STATIONS
Receiving RDS data .......................................... 19
PTY SEEK mode............................................... 20
Optional settings for RDS functions ................. 21
USING THE BUILT-IN TIMER
Timer play ......................................................... 22
Sleep timer......................................................... 23
ADDITIONAL INFORMATION
Troubleshooting................................................. 24
Specifications .................................................... 26
CONTENTS

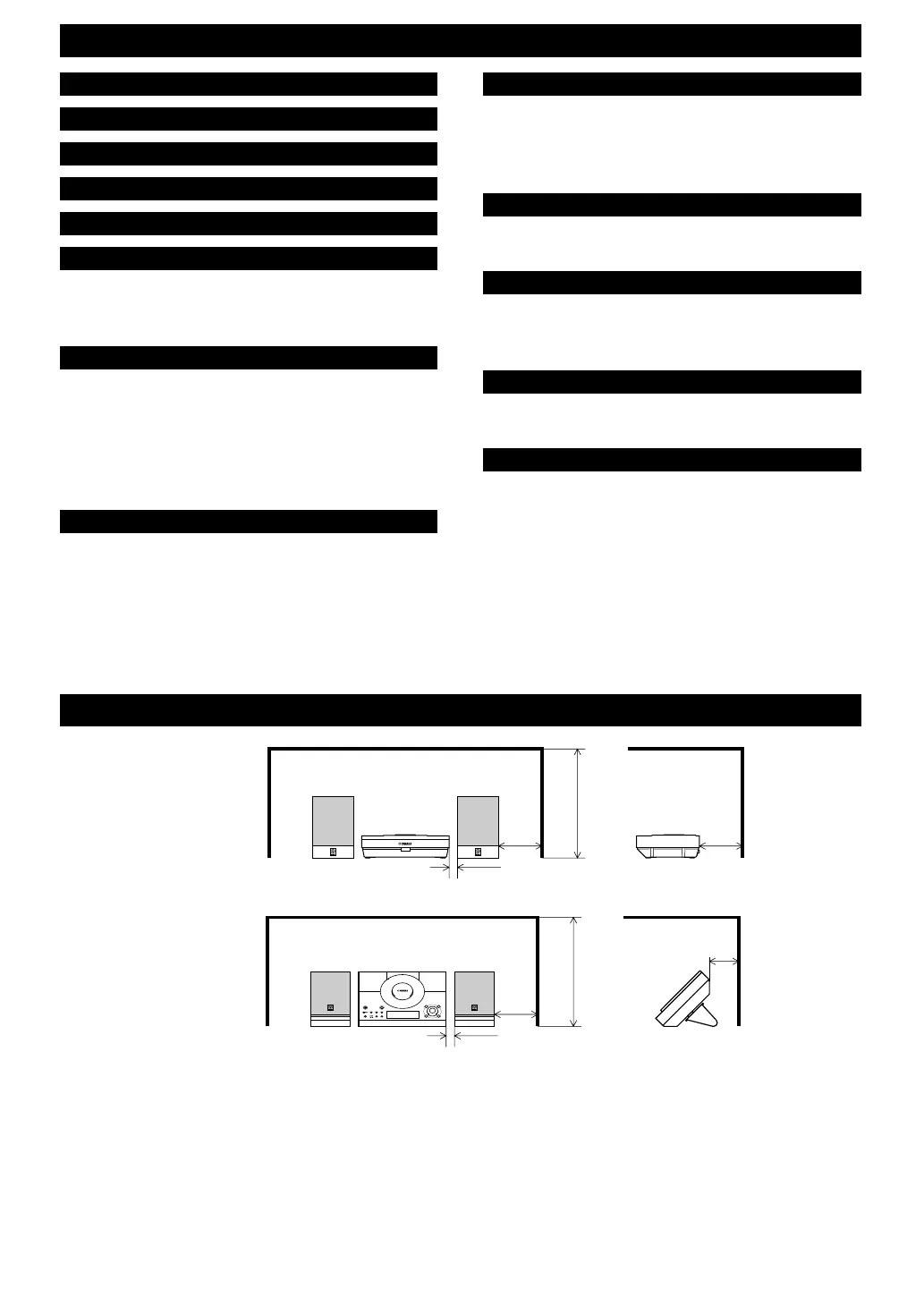

Set up this system by allowing spaces specified in the figure or more around and behind the main unit to assure good ventilation.
To prevent the ventilation holes from being obstructed, be sure not to place another unit or any object on top of the main unit.
Otherwise, it may cause fire or damage to the main unit.
Cautions
• If the main unit is put inside a rack, the front of it must be fully open.
• When mounting this system on the wall, allow spaces specified in the figure around the system as well, however,
the space between the system and the wall is determined by the mounting bracket and screws used.
• When mounting this system on the wall, make sure that there is no metalic projection on the wall. If a metallic
projection get into an opening of the main unit, it may cause fire or an electric shock to the user.
SETTING UP THIS SYSTEM
When using the stands
10mm
100mm
100mm
400mm
50mm
400mm
TIMER TIME ADJ
10mm
100mm
When not using the stands
03/TSX-10E(6.12)b 01.6.12, 4:17 PM2

Yamaha TSX-20 Specifications

Amplifier Section

minimum RMS output power per channel	18 W +18 W (4Ω 1kHz 10% THD)
input sensitivity/impedance AUX	250 mV/47 kΩ
total harmonic distortion (20 Hz to 20 kHz)	12.5 W, 6 Ω

Tuner Section

tuning range FM (U.S.A. and Canada models)	87.5 – 107.9 MHz
tuning range FM (U.K., Europe, Australia and China models)	87.50 – 108.00 MHz
tuning range AM (U.S.A., Canada and China models)	530 – 1710 kHz

CD Player Section

D/A converter	S-bit DAC
laser diode material	GaAIAs
laser diode wavelength	780 nm

Speaker Section

type	2-way bass-reflex speaker system
driver	10 cm cone woofer, 2 cm dome tweeter
maximum input power	20 Ω

General

power supply (U.S.A. and Canada models)	AC 120 V, 60 Hz
power consumption	35 W
dimensions (W x H x D) CRX-TS10/20	297 x 80 x 214 mm
